Explosionproof Thermostats FIX THERM Inline Thermostat ELECTRICAL FIXTHERM INLINE Ex THERMOSTAT IL-*/*
Explosionproof Thermostats FIX THERM Inline Thermostat ELECTRICAL FIXTHERM INLINE Ex THERMOSTAT IL-*/*
Specifications
Brand Name :
condor
Model Number :
FIXTHERM INLINE Ex THERMOSTAT IL-*/*
Certification :
DEKRA 13ATEX0176 and IECEx DEK 13.0062
Place of Origin :
Mauritius/Netherlands
MOQ :
1pcs
Price :
EURO/USD/HKD
Payment Terms :
T/T
Delivery Time :
2-4 weeks
Packaging Details :
carton
Housing Material :
Aluminium covered with heat-shrink tube
Voltage :
6A / 240 VAC
cable :
3x 1 sqmm
Material cable :
silicone cable, outer diam. ca. 7.4 mm
Standard length :
ca. 1 mtr
Other lengths :
on request
Overall dimensions :
o.d. ca. 25 mm x 44 mm length
weight :
ca. 30 g.
Switch :
SPST
Set-point tolerance :
+/- 3°C
Hysteresis :
ca. 2°C
Ambient Temperature Range :
-55 °C … + 65 °C
EX protection class :
ATEX 2 II G Ex mb IIC T6 Gb, 2 II D Ex mb IIIC T85°C Db; IECEx Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db
Certifications :
DEKRA 13ATEX0176 and IECEx DEK 13.0062
Features :
Setpoints up to 60°C
Power Source :
Electric
color :
black
Description

Description

1 Application

The FixTherm Inline Thermostats are often used as maximum thermostat in instrumentation cabinets with space-heating, to protect the equipment from overheating.

  • Prevention of overheating
  • Temperature protection

2 Features and Advantages

  • Setpoints up to 60°C
  • Accurate set-point (± 3°C)
  • Small hysteresis
  • Suitable for T6 classification
  • Can be used for 6A / 240 VAC/DC

3 Remarks

  • The housing is made from covered aluminium.

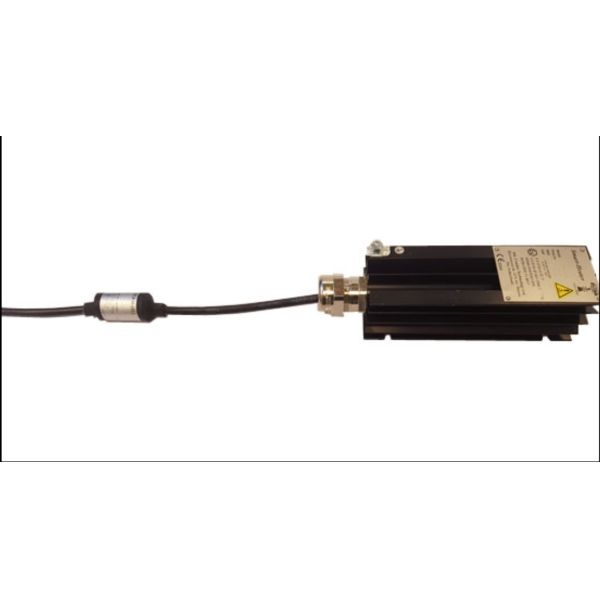

  • When required in applications it is normal practice to use our Space-heaters and Direct-heaters in combination with this
  • FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

  • IL-10/5 – going up with 5°C setpoints e.g. 10/5 – 15/10 – 20/15 etc. up to 60°C maximum.

5 Technical data

Housing Aluminium covered with heat-shrink tube
Current / voltage 6A / 240 VAC
Cable 3x 1 sqmm
Material cable silicone cable, outer diam. ca. 7.4 mm
Standard length ca. 1 mtr
Other lengths on request
Overall dimensions o.d. ca. 25 mm x 44 mm length
Weight ca. 30 g.
Switch SPST
Set-point tolerance +/- 3°C
Hysteresis ca. 2°C
Ambient temp. range -55 °C … + 65 °C
EX protection class ATEX 2 II G Ex mb IIC T6 Gb, 2 II D Ex mb IIIC T85°C Db;
IECEx Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db
Certification DEKRA 13ATEX0176 and IECEx DEK 13.0062
