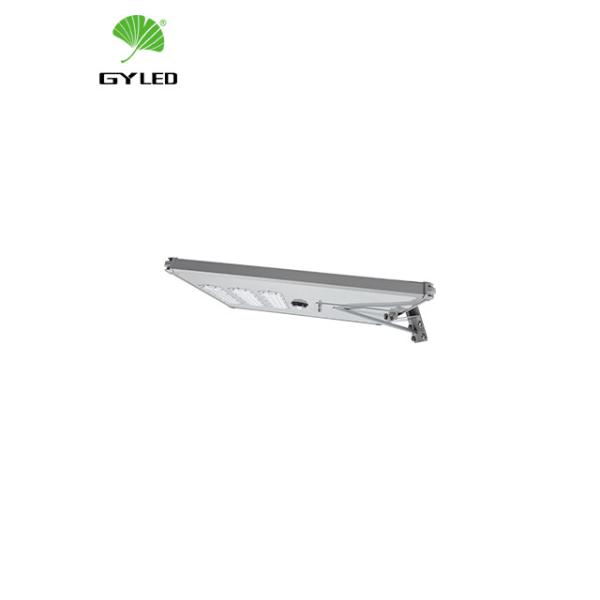

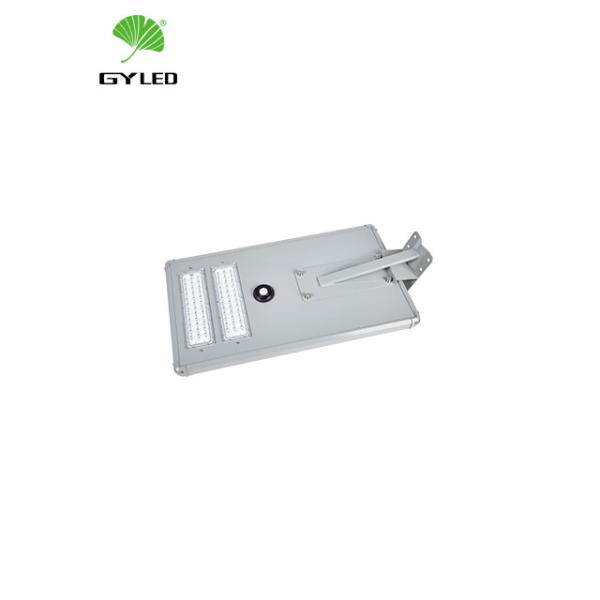

waterproof lamp 50w solar road streetlight outdoor waterproof streetlight for street
Advantage
Aluminum Case, Corrosion Resistance & Waterproof
Excellent operating temperature -40°C ~ 50°C
Effect Duration: Working time last for more than 24 hours
Bridgelux Chip 120lm/w: Brightness & Uniform illumination
Waterproof Grade IP65 & Intelligent Working Mode
Product Description:
Infrared Sensor Function: Automatic induction & Energy Saving
Build-in Lithium Battery: Longer Lifespan & Easy Mantenance
High efficiency and energy saving: the whole lighting efficiency>130lm/w.
Driver box with vent for better heat dissipation
Adjusting bracket: adjustable 180° lighting installation.
Electrophoresis process technology.
Lifespan over 50,000 hours,5 yearswarranty
Die-cast aluminum alloy housing
Heat dissipation design: The separate design of the driver and the light source cavity effectively reduces the temperature of the LED and the driver.Each module is independent of each other, which can effectively prevent excessive heat concentration
Heat Sink
Advanced Modular Aluminum Heat Sink
Wide Power Range
Easy to maintain: The drive is external and can be disassembled for easy maintenance and replacement
Green and environmental protection: no harmful elements such as mercury and lead.
Application:
These light are designed for outdoor places,
especially for high mast, stadium, sports field, hall, airport, square, etc. The adjustable brackets, as well as different beam angles, can meet different lighting requirements.
Brackets and the single module can be adjustable
Ambient working temperature can be 55℃
Dual protection, Intelligent Working Mode
Waterproof connectors
The power connectors on all our lamps are IP67 waterproof.
High efficient copper pipes connect the heat source directly, rapidly radiate the heat to fins
Excellent housing design reach IP66/IK10 rating
Modular Design with Air Flow to Reduce Temperature
High Thickness Modular Aluminum for Better Heat Dissipation

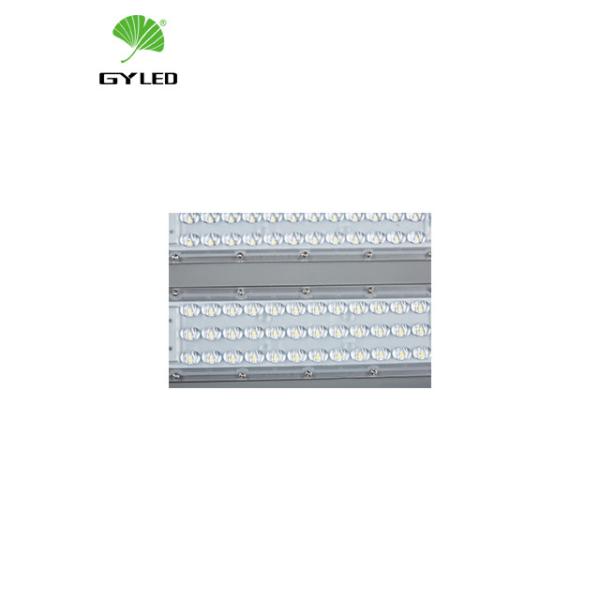

high lumen, long life of light source
GY5637TYNLD Series Technical Parameter | |||||
Model No. | GY5637TYNLD | GY6737TYNLD | GY6944TYNLD | GY6856TYNLD | GY6965TYNLD |
Power Watt | 20 | 30 | 40 | 50 | 60 |
LEDs Type | 3030 | ||||
Lighting Efficiency | 130lm/w | ||||
Color Temperature | 3000/4000/5000/5700 | ||||
CRI | 70 | ||||
Lithium Battery | 11.1V/7AH | 11.1V/10AH | 11.1V/14AH | 11.1V/18AH | 11.1V/22AH |
Solar Panel (polycrystalline silicon) | 18V/20W | 18V/30W | 18V/40W | 18V/50W | 18V/60W |
Lighting model | The solar street light operates at 100% power when people pass by (30s delay), | ||||
the solar street light operates at 10% power when no one passes by. | |||||
Operating Temperature | -20~60Degree | ||||
Humidity Environment | 0~90% | ||||
Rainy Days | 3~4 days | ||||
IP Grade | IP65 | ||||
Dimension | 500*370*43mm | 670*370*43mm | 690*440*43mm | 680*560*43mm | 690*650*43mm |
Material | Aluminum+PC |
