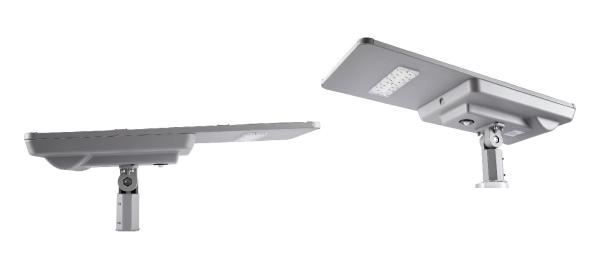

Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65
Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65
Specifications
Brand Name :
GYLED
Model Number :
GY4518TYNLD
Certification :
EMC, LVD, CE, RoHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000PCS/YEAR
Delivery Time :
7-10DAYS
Packaging Details :
1PC IN 1CARTON
Working lifetime(hour) :
50000
Cri (ra>) :
80
Working temperature(℃) :
-20 - 50
Ip rating :
IP65
Led light source :
high efficiency SMD
Warranty(year) :
3
Application :
garden, park, residence streets, highways, outdoor road,
Color temperature(cct) :
6000k
Item type :
solar street lighting all in one
Product name :
solar led streetlight
Material :
outside cover die-casting aluminum housing
Light source :
LED high lumen
Lamp luminous efficiency(lm/w) :
126
Input voltage(v) :
DC12V
Description
Outdoor waterproof integrated all in one led 3000 lumens solar streetlight
ITEM GY4518TYNLD
Nominal Power 30W 40W 50W 60W 80W
Solar Panel Type Monocrystalline
Solar Panel Parameters 18V 40W 18V 50W 18V 60W 18V 80W 18V 100W
Battery Type LiFePO4
Battery Parameters 12.8V 18AH 12.8V 24AH 12.8V 27AH 12.8V 30AH 12.8V 42AH
System Voltage 12V
LED Brand Lumileds
Light Distribution II-S, II-M,III-M
CCT 2200K~6500K
Charging Time 6Hours
Working Time 2-3 Days(Auto Control)
Protection Grade IP66/IK09
Luminous Efficiency 170lm/W
Operation -20℃ to 60℃
Net Weight(kg) 11.4 13 14.5 15.5 18
Gross Weight(kg) 13.3 15 16.5 19.5 23.5
Package Dimensions(mm) 830*455*180 975*455*180 1083*455*180 1447*455*180 1577*455*180
Material Aluminum
Luminous Flux 5100lm 6800lm 8500lm 10000lm 13600lm
Warranty 5 Years
Outdoor waterproof integrated all in one led 3000 lumens solar streetlight
Solar battery:
High-quality Lithium battery, 3~5days backup
Solar panel: Famous brand sun-power cells, a grade, and high cell efficiency≥18.9%
Frame plate: Aluminum alloy, impact energy-20 joule(IK10), the waterproof grade is IP66
Body sensor: Light control, automatically adjust the brightness
Led Lamp: SMD chip, super bright with high lumen 120lm/w, 10%~20% more brightness than conventional lamps on market.
PWM solar control: High transfer efficiency, waterproof grade: IP68, Automatic light & Time controlling system
Pole: Hot-dip galvanized pole, high-quality steel Q235, plastic-coated, rust-proof, Lifespan: more than 20 years
Base plate: Use four strengthening ribs to make the pole more stronger
Base foundation: Four anchor bolts, use 2 screws for better fixation and use the plastic sleeve to protect it during shipping, also it can be disassembled to save much container space.
Main Features:
Solar panel: high-efficiency monocrystalline silicon with 25 years lifetime
LED lamp: Bridgelux from the USA, good quality for 50000h spanlife
Power Lithium Battery: high capacity lithium battery, intelligent charging to prolong battery's service life
MPPT Controller: Independently developed intelligent MPPT controller with 95% Charging efficiency
Die-cast aluminum integrated molding
PIR sensor
Light/time control
Smartphone App Control

MOTION SENSOR
Light on demand with dimming function saving electricity costs by optimizing light performance based on motion detection.
ATMOSPHERIC SENSORS
Collect important environmental statistics stored on our cloud platform to enable accurate data to help you with planning and pollution reduction.
MODULAR DESIGN
Unique modular design improving logistics and installation while significantly decreasing transportation costs.

Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65Outdoor Integrated 3000 Lumens Solar LED Street Light DC12V IP65
