70ra Outdoor Led Floodlights IP66 Parking Lot Flood Lights 3000K
70ra Outdoor Led Floodlights IP66 Parking Lot Flood Lights 3000K
70ra Outdoor Led Floodlights IP66 Parking Lot Flood Lights 3000K
70ra Outdoor Led Floodlights IP66 Parking Lot Flood Lights 3000K
70ra Outdoor Led Floodlights IP66 Parking Lot Flood Lights 3000K
70ra Outdoor Led Floodlights IP66 Parking Lot Flood Lights 3000K
Specifications
Brand Name :
GYLED
Model Number :
GY1512TG
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
1CTN
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200000PCS/YEAR
Delivery Time :
7-10DAYS
Packaging Details :
5PCS/10PCS IN 1CARTON
Product name :
Slim LED flood light
Input voltage(v) :
AC100-300V
Lamp luminous flux(lm) :
120lm/w
Color temperature(cct) :
3000-6500K
CRI (Ra>) :
Ra70/80(optional)
IP Rating :
IP66
Working temperature(℃) :
-20 - 45℃
Working lifetime(hour) :
50000H
Material :
Die casting aluminum+Glass
Application :
factories, stadiums, docks, billboards, buildings, lawns, gardening design, square, theme park
Description

Waterproof 50000h lifetime 70ra outdoor led floodlights parking lots lighting

GY1512TG Outdoor LED Floodlights

Application:

Scope of application: main factories, stadiums, docks, billboards, buildings, lawns, gardening design, and other lighting and decorative lighting places.

Product technical parameter

Input Voltage(V)

 AC100-300V
Model GY1512TG GY1714TG GY1916TG GY2824TG GY3529TG GY3529TG GY6540TG

Power(W)

 20 30 50 100 150 200 300

Lighting Efficiency(lm/W)

 120lm/w

Color Temperature(K)　

 3000-6500K
Power Factor ＞0.95
CRI 80
Frequency 50/60Hz
IP Grade IP66
IK Grade CLASS I
Surge Protection 4KV
Working Temperature(℃) -20～45
Working Environment Humility(RH) 20 ～95 %

Dimension(mm)

 170*140*30 190*160*30 210*180*30 280*240*30 350*295*36 420*300*36 468*358*40

Net Weight(Kg)

 0.53 0.84 1.05 1.86 2.8 4 5.5
Material

Die casting aluminum+Glass

Description

Using the LED light source, low light attenuation, pure light color, etc

The outdoor led floodlights adopt a unique aluminum sealed shell, which makes the whole lamp comply with the IP66 standard for outdoor use.

The aluminum alloy shell has excellent heat solution performance and effectively guarantees the service life of the LED light source up to 50,000 hours.

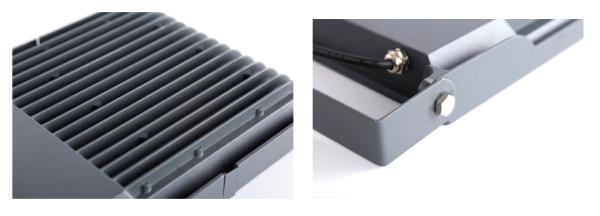

Slim Housing Design with Good Heating Solution.

Power Range from 20watt to 300watt.

IP66 Connector and Top Standard Cables

• Easy Connection IP66 Waterproof Connectors

• Top Standard TUV Approved Anti-aging Rubber Cable Especially for Outdoor Usage

• Rubber Material for Higher Temperature Performance

• Top Standard Isolation Performance.

Installation

Fix the lamp in the corresponding installation position through expansion bolts and adapter screws.
2. Adjust the installation bracket to the required installation angle, the projection angle can be adjusted, and then tighten the screws to fix the bracket.
3. Connect the lamps according to the wiring identification.
