(HR, SR, VR) IPL hair removal machine / 3 handles e light rf laser ipl machine

Working Principle

IPL (Intense Pulse Light) is a kind of high strength, broad spectrum and non-succession light, which can permeate epidermis to the derma. Utilizing the selective absorption elements, the light is absorbed by the melanin in the hair follicles. Through the optical and thermal effect generated and sourced from the light, it achieves the purpose of removing unexpected hair by destroying the hair follicles tissues rapidly and permanently.

Technical Parameter

Treatment Scope and Result

Treatment Scope

Treatment Result

Machine Advantages

Handle and Pipe

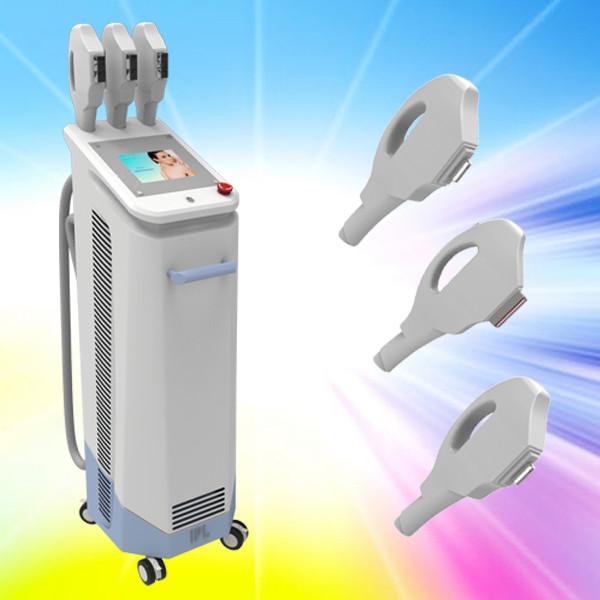

Three hand pieces (SR, HR, VR) on the unit, which makes operators can change hand pieces easily for different treatments. LCD user-friendly screen makes operation simple, block inside design makes installation and repair quite easy.

High quality Medical pipe for water circulation,soft with good flexibility,durable.

Big spot Size

Big Spot Size 16*50mm for HR 8*34mm for SR & VR ,quicker your treatment time.Nubway spot size is exclusive in China

Crystal and Xenon lamp

Pure Sapphire ultilized in the device to let the light illuminate skin well to get best result.
Xenon lamp imported from from USA to promise long working life and no need change within 2 years.

Strong Cooling system

Semiconductor+ Water+ Air Cooling triple cooling systems

8L big water tank, booster pump ,which can output 6.5L water per min, high lift can reach 60 meter, ensure good water circulation;

2 big Copper Radiator ,better heat conduction than the Aluminum ;4 big DC fan 12V, big wind , the heat can be soon disappeared ,also low power , low noise.

Strong cooling system guarantee our machine can working continues 12 hours more

Main power supply

Our main power supply is special custom-made , which is totally fit for this machine , not the general power.

There are three 12000μF capacitors that guarantee the output current is constant current, which will avoid the damage to the bar as the electric current is too strong. But many manufacturer just use the ordinary magnetic drive pump , it will usually led the strong current directly to damage the bar.

Gilded copper-beryllium alloy electrode

The electrode connected with the handle adopt the gilded copper-beryllium alloy , which has the excellent electrical conductivity and it is the professional materials specially for the electrode.

The details of our machine

We has always attached great importance to the details during the machine production. You can see all screws are stainless steel materials , which will avoid the crews from rusting and influence the beauty of the machine.

Also , all the wires insider our machine are neatly arranged one by one. The internal structure is clear and beautiful and easily to repair.

Humanized operation interface

The operation screen is 8.4 big Inch , and it is human interaction designed , which guarantees the stronger Visualization and also can avoid the wrong operation very well.
