Specifications
Brand Name :
Dimed
Model Number :
Harlas
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
50pcs/Month
Packaging Details :
Retail packing
wavelength :
980nm/1064nm/1470nm/1940nm
Maximum Power :
15w/15w
Operation Mode :
CW,Single Or Repeat Pulse
Pulse Duration :
10us-3s
Control Mode :
True Color Touch screen
Transmission System :
Medical Fibers With SMA905 Connector
Weight :
3.5KG
Application :
Varicose vein ,
Description

Harlas 1470nm Endovenous Laser Therapy EVLT Surgery Greater Saphenous Vein Laser Treatment

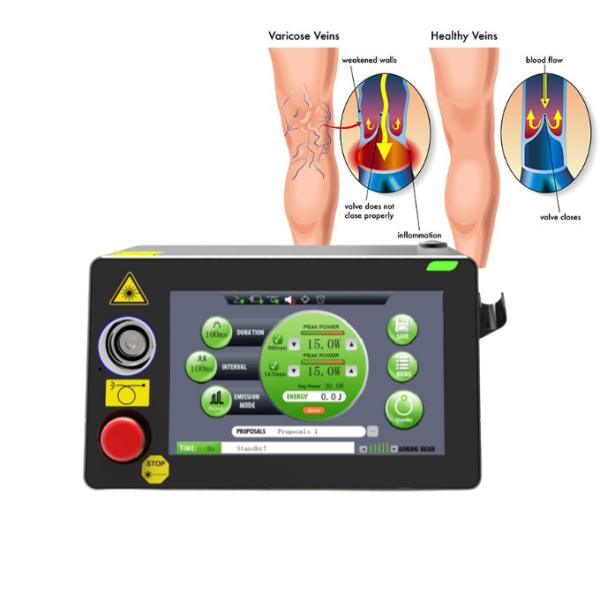

What Are Varicose Veins?
Veins are vessels that drain blood from the body's peripheral parts and channel it back to the heart. Varicose veins are enlarged, deformed, superficial veins in which blood flow is slowed or even reversed compared to the normal venous circulation. Varicose disease results from stretching of the vein walls and malfunction of the valves that normally direct blood back to the heart. Spider veins, or telangiectasia, are tiny varicose veins.

How Are Varicose Veins Caused?
Ageing and heredity are the largest contributing factors for varicose veins. Women are two to three times more likely to develop varicose veins than men. Hormonal changes produced by puberty, pregnancy, menopause, and sometimes using birth control pills and estrogen promote varicose disease development. Many pregnant women develop varicosities during the first trimester of pregnancy.

Fortunately, veins devloped due to pregnancy will often improve within a few months following delivery. Other predisposing factors include obesity, excessive heat, disorders of the lower limbs (such as flat feet) and prolonged standing – as in occupations such as sales, nursing, teaching, hairdressing, and waitressing. Uncommonly, varicose veins can result from an injury to the leg or a clot in the deep veins, commonly referred to as deep vein thrombosis.

What Are The Symptoms Of Varicose Veins?
Varicose veins can cause pain, heaviness, swelling, aching, burning, tingling and itching. They often produce leg discomfort or restlessness at night. When severe, they can lead to rashes, ankle discolouration, phlebitis, bleeding, and leg ulcers. They can also create a general feeling of fatigue. The appearance of these veins can also make people feel self-conscious and avoid situations where they may expose their veins.

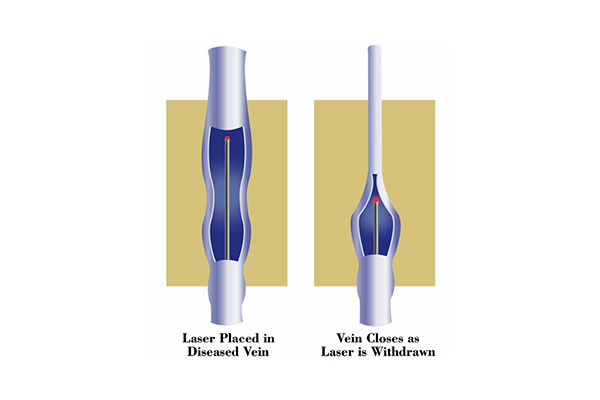

Endovenous ablation: This endovascular procedure for larger varicose veins uses a tiny incision. vascular surgeon inserts a catheter (thin, flexible tube) into the vein and heats it using energy from light (laser) , As the surgeon slowly pulls the catheter out, the heat seals the vein shut.

Endovenous laser it is the latest noninvasive and minimally invasive treatments. it is safe, effective treatments with little or no downtime.
Minimally invasive and noninvasive procedures close off varicose veins, which then fade. The laser therapies don’t disrupt blood circulation because blood goes to other, healthy veins.

CE Surgical Diode Laser Machine 15 Watt Harlas 1470nm Endovenous Laser Therapy CE Surgical Diode Laser Machine 15 Watt Harlas 1470nm Endovenous Laser Therapy

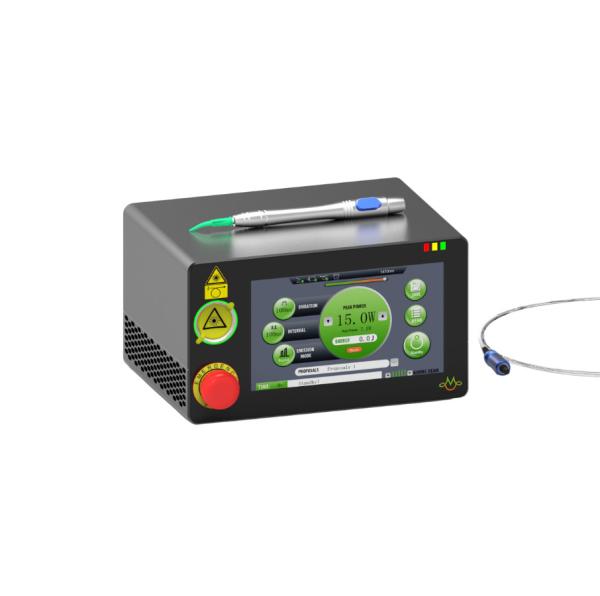

Harlas dual wavelength 1470nm Minimally invasive laser is an outstanding surgical laser machine designed for endovenous laser treatment. It has a compact and modular design mainly in silver aluminum alloy housing and black tempered glass panel, exuding soft luster, aesthetic feeling and delicate texture. It has a light weight and small size,which is easy to carry and easy in cleaning.

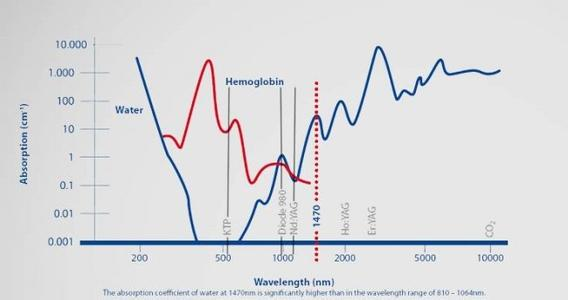

980nm achieving high absorption simultaneously through hemoglobin and water, due to its wavelength, thus with a high ablation capacity which leads to complete clusure of treated vein . The 1470nm wavelength,cooperating with a radial, is very precise and additionally protects the patient against excessive heating of the tissues surrounding the removed vein.

CE Surgical Diode Laser Machine 15 Watt Harlas 1470nm Endovenous Laser Therapy

Technical Specifications Of Harlas Surgical Laser

Laser Type GaAIAs Diode Laser
Wavelength 980nm 1064nm 1470nm 980nm+1470nm 650nm+810nm+980nm+1064nm
Maximum Power 30W/45W 30W 15W 15W+10W 2mW+15W+15W+15W
Operation Mode CW, Single or Repeat Pulse
Pulse Duration 10us -3s
Repetition Rate 0.2Hz – 50KHz
Pilot Beam Red Diode Laser of 650nm, Power <5mW
Control Mode True Color Touch Screen (7 inches, resolution 1024*600px)
Transmission System Medical Fibers with SMA905 Connector
Dimensions 230(W) * 180(L) * 135(H)mm
Weight 3.5KG

Sensitive Touch Screen And Easy-To-Use Interface

Harlas surgical laser gets a 7-inch color touch screen with high resolution 1024*600px that users can easily perform various kinds of surgical treatments or make various settings in a few taps.

The intuitive operation system with power level, three operating mode (cw, single pulse, repeat pulse) and timer selections allows the user to use, adjust and save protocols easily.

The screen brightness can be customized and adjusted for each operating environment.

0.1W~45W Surgery Laser Machine Of Different Wavelengths

Harlas surgical laser offers various wavelengths such as 650nm, 810nm, 980nm, 1064nm, 1470nm and etc. for doctors to select in line with the clinic treatment. Different wavelengths have different absorption capability and penetration characteristics, meeting a variety of actual clinical needs such as ablation, coagulation, vaporization and etc. Harlas surgical laser is developed with a wide selection of output powers from 0.1W to 45W, providing high flexibility for surgery doctors to choose according to the practical surgery and therapy application requirements.

Providing A Complete Set Of Accessories

Harlas surgery laser equipment is specially developed with a full set of accessories which makes it available for multiple surgery and therapy treatment uses. Its accessories include safety goggles, fiber cutter, fibers, footswitch, surgical handpieces, fiber stripper, therapy handpieces. The full-range of accessories and our comprehensive services will bring you a convenient one-stop experience.

CE Surgical Diode Laser Machine 15 Watt Harlas 1470nm Endovenous Laser Therapy

Stable Working Performance, Long Stability And Competitive Price

Harlas surgical laser is designed with enhanced internal hardware structure and optimized software programs that it can be applied in various surgery and therapy scenarios for a long time with optimal performance and reliability. We also provide excellent after-sales service, free-warranty service and custom service for our customers. While maintaining the Germany quality, we provide competitive price for wholesalers and distributors!
