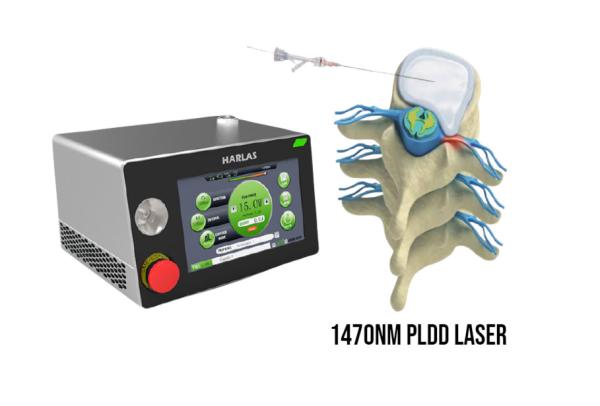

Micro Invasive PLDD Laser Back Pain Treatment 15W Class 4 Laser Therapy Machine
Micro Invasive PLDD Laser Back Pain Treatment 15W Class 4 Laser Therapy Machine
Specifications
Brand Name :
Dimed
Model Number :
Cherylas
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
50pcs/Month
Packaging Details :
Retail packing
wavelength :
1940nm
Maximum Power :
15w/30w
Operation Mode :
CW,Single Or Repeat Pulse
Pulse Duration :
10us-3s
Control Mode :
True Color Touch screen
Transmission System :
Medical Fibers With SMA905 Connector
Weight :
11KG
Application :
slipped disc, herniated disc, Lumbar Decompression
Description

The Minimally Invasive Therapy PLDD Laser For Back Pain And Herniated Disc

PLDD Lasers
PLDD is a minimally invasive procedure for certain cases of pinched nerves. PLDD is done by injecting a needle that is directed at the protruding bone pad, then through a fiber optic cable a laser will be flowed (1200 Joules). The heat generated by the laser will shrink the bone cushion so that the protrusion can return to its normal shape and be free from pinching.

This technique is carried out guided by the latest C-arm technology which is known to be safe with a high level of accuracy.

Advantages of PLDD lasers
The PLDD laser simply requires a much faster recovery period than open surgery. And for patients who prioritize aesthetics, they are also very appropriate candidates for this laser, because the scar is also minimal and only requires a small incision of about 7 mm.

The PLDD procedure is very simple because it does not require anesthesia (only local anesthesia), does not need fasting, and patients can go home or have one day care after only 1-2 hours of observation.

When should consider minimally-invasive PLDD procedure

The PLDD procedure is specifically designed and developed for the cervical and lumbar indications, including:

Cervical problems

One or more cervical disc herniations
Neck pain, shoulder pain, bilateral numbnesss,
dizziness and other symptoms.Lumbar problems
Restrictive disc on CT or MRI
No intervertebral calcification, free, prolapse
Straight leg elevation test positive
Six weeks of conservative treatent is invalid
The principle of PLDD
In this procedure, laser energy is transmitted through a thin optical fiber into the disc. The aim of PLDD is to vaporize a small portion of the inner core. The ablation of a relatively small volume of the inner core results in an important reduction of intra-discal pressure, thus inducing reduction of disc herniation.

PLDD is the minimally-invasive medical procedure developed by Dr. Daniel S.J. Choy in 1986 that uses a laser beam to treat back and neck pain caused by a herniated disc.
Percutaneous laser disc decompression (PLDD) is the utmost minimally invasive percutaneous laser technique in the treatment of the disc hernias, cervical hernias, dorsal hernias (except for the segment T1-T5), and lumbar hernias. The procedure uses the laser energy to absorb the water within the herniated nucleus pulposus creating a decompression.

The PLDD treatment is performed on an outpatient basis using only local anesthesia. During the procedure, a thin needle is inserted into the herniated disc under x-ray or CT guidance. An optical fiber is inserted through the needle and laser energy is sent through the fiber, vaporizing a tiny portion of the disc nucleus. This creates a partial vacuum which draws the herniation away from the nerve root, thereby relieving the pain. The effect usually is immediate.

Specifications

Laser Type GaAIAs Diode Laser
Wavelength 1470nm
Peak Power 15w
Operation Mode CW, Single / Repeat Pulse
Pulse Duration 10us-3s
Repetition Rate 0.2Hz-50KHz
Pilot Beam Red Diode Laser of 650nm, Power<5mw
Control Mode High resolution 7inch Touch screen (600*1024px)
Transmission System Medical Fibers With SMA905 Connector
Dimensions 380(W)*430(L)*220(H)mm
Weight 11KG

Benefits
Perfect tissue effect
Micro-invasive percutaneous access
The procedure is accompanied by minimal pain
The procedure can be performed under local anesthesia
No risk of scarring
Faster return to normal activity - in most cases the patient does not require a stay in a rehabilitation clinic

Accessories

Dimed providing a full set of high quality standard and optional accessories, such as puncture needle, Y-valve,optical fiber, safety goggles, footswitch, fiber

cutter, carry case, cart and etc.
