Specifications
Brand Name :
Berylas
Model Number :
980nm/15w
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
Western Union, T/T, MoneyGram
Packaging Details :
Retail packing
warranty :
2 years
wavelength :
980nm
Maximum Power :
15w
Operation Mode :
CW,Single Or Repeat Pulse
Pulse Duration :
10us-3s
Control Mode :
True Color Touch screen
Transmission System :
Medical Fibers With SMA905 Connector
Weight :
2.1KG
Description

Effective 980nm EVLT Laser For Endovenous Laser Treatment

What are varicose veins?
Varicose veins are enlarged, twisted veins. They can happen anywhere in the body. But they are more common in the legs.
Varicose veins are not considered a serious health problem. But they can be uncomfortable and can lead to more serious problems. And because they may be very noticeable, they may cause people to feel uncomfortable or embarrassed.
Spider veins, a milder type of varicose veins, are smaller than varicose veins and often look like a sunburst or "spider web." They are red or blue in color and are often found on the face and legs, just under the skin.

What causes varicose veins?
Varicose veins are caused by increased blood pressure in the veins. They can occur in the veins near the surface of the skin.
The blood moves toward the heart by one-way valves in the veins. When the valves become weakened or damaged, blood can collect (pool) in the veins and even flow backward. This causes the veins to become enlarged. Sitting or standing for a long time can cause blood to pool in the leg veins. This increases the pressure in the veins. The veins can stretch from the increased pressure. This may weaken the walls of the veins and damage the valves.

10us To 3s Medical Laser Device Endovenous Laser Treatment 980nm
Berylas 980nm diode laser it is one ideal and cost-effective Varicose Veins treatment machine.

Adopts 980nm wavelength semiconductor fiber coupled laser, transmission laser energy through fiber coupling technology, the laser penetrates deep into the blood vessels, according to the principle of selective photoheat, oxyhemoglobin in red blood cells in blood vessels is the main target color group, after absorbing the laser energy, the heat energy is transmitted to the surrounding endothelial cells, causes damage to the walls of blood vessels and breaks down hemoglobin in the vessels, convert it into small groups of molecules that are absorbed by the tissues, based on the skin barrier science. Meanwhile, the skin can repair and regenerate itself, the crushed hemoglobin and capillaries are absorbed by the skin tissue, the space it occupies is covered by newly grown skin tissue, thus achieves eliminates the red blood purpose.

Features

  • Compact and modular design, portable and easy to move to different place.
  • 7inch color touch screen, intuitive and user friendly operate interface.
  • German diode and German laser technology
  • Build-in lithium battery, it can support continuous working at least 4 hours even without the power support.
  • Perfect heat management, support continue working without overheating problem.
  • Intelligent software, Flexible power adjustment range. Support custom settings for particular treatment.
  • Support different operation mode: CW, Single or Repeat Pulse
  • Medical fibers support with standard SMA905 Connector
  • Providing a complete set of accessories according to different application

Technical Parameters

Laser Type GaAIAs Diode Laser
Wavelength 980nm
Maximum Power 15W
Operation Mode CW, Single or Repeat Pulse
Pulse Duration 10us -3s
Repetition Rate 0.2Hz – 50KHz
Pilot Beam Red Diode Laser of 650nm, Power <5mW
Control Mode True Color Touch Screen (7 inches, resolution 1024*600px)
Transmission System Medical Fibers with SMA905 Connector
Dimensions 160(W) * 180(L) * 235(H)mm
Weight 2.1kg


Advantages of EVLT Laser Treatment with Berylas laser

Minimally invasive, less bleeding
Operation under direct vision, the main branch can be closed of tortuous vein clumps
Simple surgical operation, shortened treatment time, great pain relief effect
Patients with mild disease can be treated in the outpatient service
No postoperative secondary infection, less pain, quick recovery
Almost no scar after surgery




10us To 3s Medical Laser Device Endovenous Laser Treatment 980nm

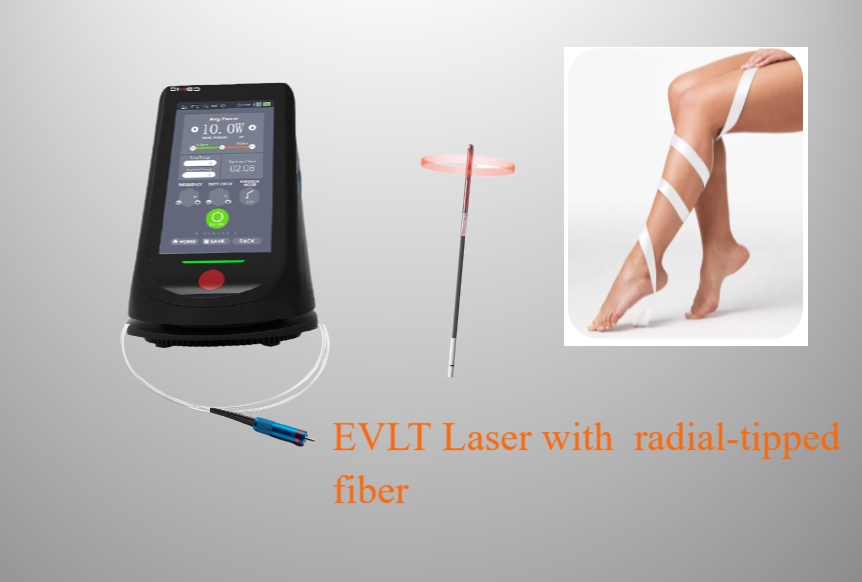

Full accessories for EVLT Laser Machine treatment.

10us To 3s Medical Laser Device Endovenous Laser Treatment 980nm

10us To 3s Medical Laser Device Endovenous Laser Treatment 980nm
