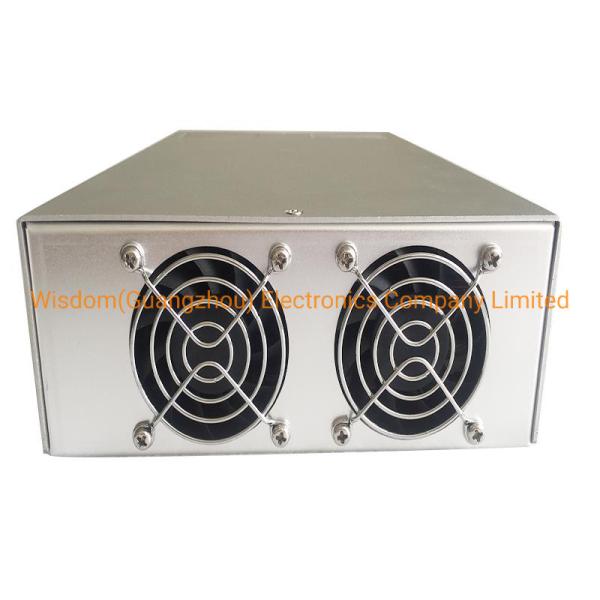

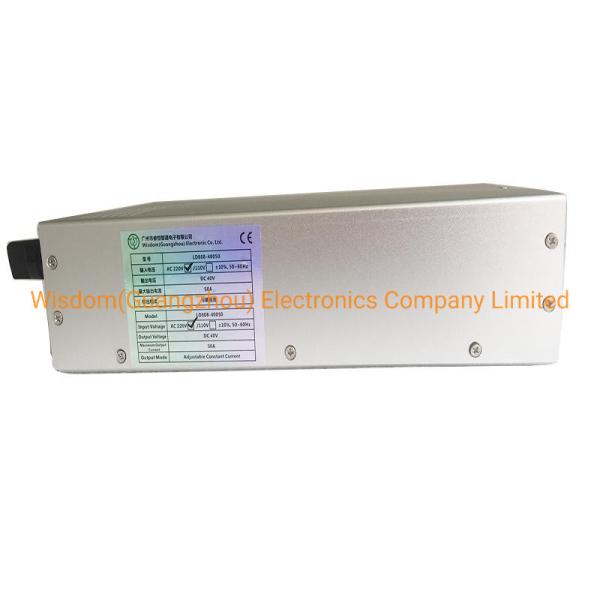

Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection
Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection
Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection
Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection
Specifications
Brand Name :
Wisdom
Model Number :
LD-GL40050
Certification :
RoHS, ISO9001, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
US $260-300/ Piece
Payment Terms :
T/T, Western Union
Supply Ability :
20000PCS/Year
Delivery Time :
5~30 work days
Packaging Details :
Paper Box
Usage :
Beauty Equipment
Output Type :
DC
Color :
White
Weight :
2.9kg
Type :
ODM
Power Source :
Full-Bridge Type
Description

Superior Quality 50A/40V Diode Power Supply for 808nm Painless Hair Removal Machine

Product Name 50A/40V 808 Power Supply
Model Number LD808-GL64050
Size 236*157*82mm
Weight 2.9kg
Input Voltage AC220V ±20% / AC110V ±10% 50HZ
Output Voltage 40~64V, 20-34 bars
Output Current 0~50A
Output Frequency 1~10Hz
Working Temperature 10~50 Degree
Humidity

≤85%

Product Information
The major difference between the principle of semiconductor hair removal and traditional laser hair removal is that the traditional laser hair removal requires instantaneous high energy to burn the hair follicles, while the semiconductor hair removal, through the accumulation of low energy, makes the hair follicles inactive and automatically removes hair, so as to achieve the purpose of permanent hair removal, without over-stimulating the skin and avoiding pain or risk.The basic principle of semiconductor laser hair removal machine is mainly biological effect. When it chooses laser with wavelength of 808nm for irradiation, it not only has good absorption of hair follicle melanin but also has no effect on normal epidermis.

Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection

Product Features

- Constant flow design
- Over voltage protection
- Over current protection
- High temperature protection
- Control Model 40-64Vanalog voltage corresponding to the 0-50A output



Attention

- The wrong input voltage must be prevented during use. In particular, the 220V voltage cannot be connected to the nominal 110V power supply.
- It is required to use two high-voltage cables larger than 2.5 square meters to connect the power supply with the semiconductor laser.
- In the layout of the whole machine, strong electric wires should be separated from the weak signal lines to reduce interference.
- Please keep the environment dry and clean to avoid high voltage leakage.
- In the complete layout, the power must be placed in a well-ventilated location.
- Operating Humidity 20~90%RH,without dew.
- Storage Temperature, Humidity -40~+85°C, 10~95%RH.
The production process
Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection

The order process
Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection

Our services

- After-sales support. we have professional services to serve you at any time.If the equipment parts are scattered, manufacturers are apt to shirk their responsibilities, but we will take full responsibility for you.

- Communication is efficient and fast. It saves a lot of communication costs and is more efficient for buyers.
- The price is favorable. Packaged parts also get better prices than individual parts.


Shipping

Wisdom 50A/40V Laser Diode Power Supply With Over Current Protection

FAQ

1. Are you trading company or manufacturer ?
Answer: We are manufacturer.

2. How long is your delivery time ?
Answer: Small order less than 10 days, large quantity less than 30 days; customized products 30 working days.

3. Which way to deliver the goods?
Answer: usually by DHL

4. Do you provide sample? is it free ?
Answer: We provide sample, it is not free.

5. What is your payment terms?
Answer: T/T or Western Union

6. How long is the warranty?
Answer: For electronic products is one year from delivery date.

7. Can you design control system? is it free?
Answer: We always customize system or power supply, it is free for special order.

8. Could we download program if its function changed?
Answer: For new program, we can teach you how to download to board yourself, but it is not a commitment to every customer.
