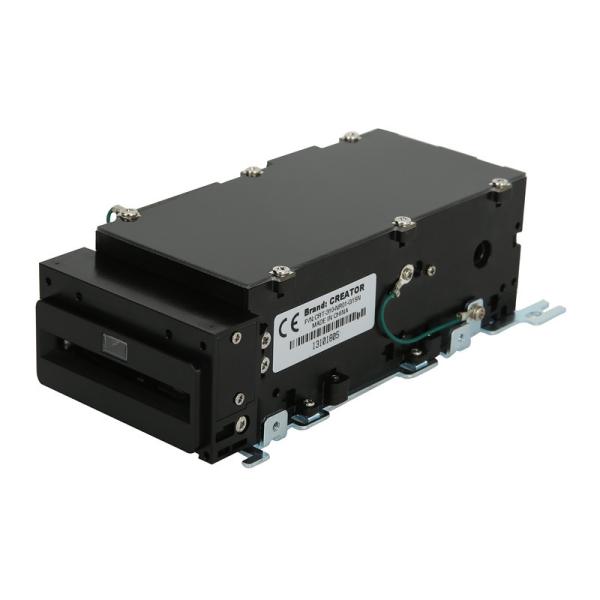

Three In One Motor Card Reader 
Three In One Motor Card Reader 
Three In One Motor Card Reader 
Three In One Motor Card Reader 
Three In One Motor Card Reader 
Three In One Motor Card Reader 
Three In One Motor Card Reader 
Three In One Motor Card Reader 
Specifications
Brand Name :
CREATOR
Model Number :
CRT-310-NR01
Certification :
EMV CE RoHs EMC
Place of Origin :
China
MOQ :
1pcs
Price :
USD 210-250 per piece
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000pcs / month
Delivery Time :
5-8 working days
Packaging Details :
1pc inside 20*15*10 cm
Function :
IC & RFID read/write,magnetic card read only
Voltage :
12V
Shutter :
Automatic electric shutter/bezel
Interface :
RS-232 / USB
Application :
ATM, Payment kiosk, parking system , slot machine,
Reliability :
1,000,000 times of transport
Description

Motor card reader writer encoder magnetic strip IC RFID card for ATM payment kiosk

Product Specification

Items Product Descriptions
Applications 1)Banking,communication & healthcare
2)Card read,write & dispense
Card-reading-writing Type 1)Magnetic Card 2)IC 3)RFID Card
Card Type Supported 1)Magnetic card:ISO7810,ISO7811
2)IC Card:ISO7816-3/EMV/PBOC(Support T=0,T=1 CPU,SAM)
3)RFID card:ISO14443 Type A,Type B
Feature 1)Support 4 PSAM
2)Highly reliable electric-controlled shutter
3)Support power down handling
4)Support front jitter card insertion & anti-skiming(magnetic field interfere)
Option & Expandability 1)IC card unlock 2)Anti-skimming device 3) PSAM card
Certifications 1)EMV4.22 L1 & PBOC3.0 L1 Certified
2)CE,RHOS & EMC Approved
Interface RS-232/USB
Working Voltage DC 12V±10%
Working Current Idle current less than 250mA
Peak current less than 2500mA(last for 50ms)
Working current less than 1200mA
Reliability Life Card-reading error rate:≤ 0.1%
Magnetic head life: 500,000 passes
IC card contact: 300,000 passes
Transmission Unit: 1,000,000 passes
Temperature & Humidity -10℃~55℃ 20%~ 80%RH

Features

- Three in one: RFID/IC card read/write, magnetic stripe card read only

- Electric shutter,

- Auto insert/eject card from the front, Insert and eject the card from both the front and the rear side

- RS232 / USB interface

- DC12V ±5%

- Installation dimension and bezel dimension is fully compatible with 3K7

- Clearance of abnormal card

- Fault tolerance processing is the same as some other brands

- Small-size controllable electric shutter

- Support warped card mechanism design

- Power fail protection

- PSAM board for option

Competitive Advantages


- Small-size controllable electric shutter

- Support warped card mechanism design

- Power-fail protection

- Long life 1,000,000 times for transportation

- Installation dimension and bezel dimension are compatible with 3K7

- Fault tolerance processing

- Support IAP online download

Application

-Desktop payment machine

-Automatic Teller machine

-ID terminal

-Traffic control system
