ISO14443 RFID Motorized Card Reader With RS232 Interface , Magnetic Stripe Card Reader
ISO14443 RFID Motorized Card Reader With RS232 Interface , Magnetic Stripe Card Reader
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
CRT
Certification :
EMV
Model Number :
CRT-310
MOQ :
5pcs
Price :
negotiation
Packaging Details :
12pcs/each carton
Payment Terms :
100% full TT advanced payment
application :
Kiosk
Card type :
RFID|IC|Magnetic Stripe
feature :
Smart
Interface :
RS232
Power supply :
DC 12V
Description

ISO14443 RFID Motorized Card Reader With RS232 Interface , Magnetic Stripe Card Reader

Quick Detail:

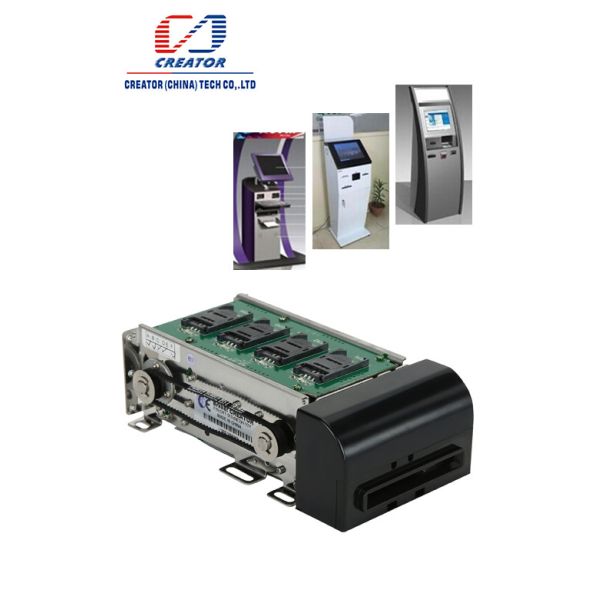

CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.

Description:

Motorized card reader CRT-310 with below main features:

★ RFID/IC card read/write, magnetic stripe card read only

★ Insert and eject the card from both front and rear side

★ RS232 interface

★ DC12V ±5%

★ DC24V/DC12V converter plate

★ Power-fail protection

★ Deal with abnormal cards function

★ Electric shutter and mechanical shutter for option

★ PSAM board for option

★ Support IAP Download

Applications:

Kiosk terminals

Payment systems

Access control terminals

Specifications:

Card standard

Magnetic Card: ISO7810 ID-1,ISO7811
IC Card: ISO7816-2
RF Card: ISO14443 TYPE A＆B

Life time

Magnetic head:500,000 passes

IC card contact:300,000 passes

Motor:300,000 passes

Communication

RS232 interface

Power supply

DC12V±5%

Current consumption

Static Current: 110mA

Peak Current: <1.5A

Temperature/Humidity

Operation:0~50℃/0 ~ 90% RH(Non condensing)
Storage:-20~70℃/0 ~ 90% RH(Non condensing)

Dimension (LxWxH)

148x86x48mm

Weight

Approx 410g

Competitive Advantage:

RFID/IC card read/write, magnetic stripe card read only.

Automatic insertion/ejection of the cards

Insert and eject card from both front and rear

Electric and mechanical shutter for option

Power-fail protection

PSAM board and LED for option

Abnormal card processing

Support IAP download

ISO14443 RFID Motorized Card Reader With RS232 Interface , Magnetic Stripe Card Reader

ISO14443 RFID Motorized Card Reader With RS232 Interface , Magnetic Stripe Card Reader
