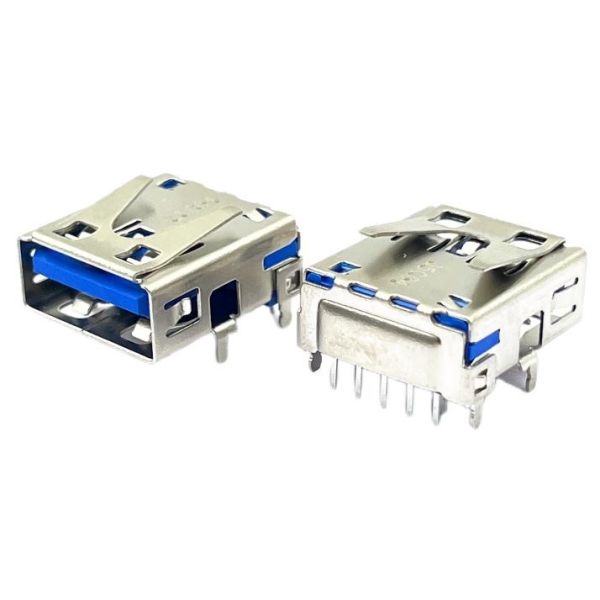

Blue USB3.1 A Female STD USB Connector Socket PCB 9Pin
Blue USB3.1 A Female STD USB Connector Socket PCB 9Pin
Blue USB3.1 A Female STD USB Connector Socket PCB 9Pin
Blue USB3.1 A Female STD USB Connector Socket PCB 9Pin
Blue USB3.1 A Female STD USB Connector Socket PCB 9Pin
Blue USB3.1 A Female STD USB Connector Socket PCB 9Pin
Specifications
Brand Name :
Jinze
Model Number :
UB51A-9LA50-RHB
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
PA9T UL94V-0
Color :
Blue 300C
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

Specifications:

Housing PA9T UL94 V-0 Blue
Terminal 4Pin Contact C5191-H (T=0.20mm)
5Pin Contac C2680-H (T=0.20mm)
Shell SUS304 T=0.30mm
Contact Plating Au 30u" Plating on Contact Area
Matte Tin 80u" Min Plated on Solder Tails
Ni 30u" Min Plated Over all
Shell Plating Nickel(50u" Min.) Plating Overall
Contact Current Rating 1.8A for Pin1&4
0.25A for All the other contacts
Voltage Rating 30V DC/AC Max.
Contact Resistance 30mΩ Max. initial For Vbus & GND Contacts
50mΩ Max Initial for All other Contacts
Insulation Resistance 100mΩ Min.
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N(3.57Kg) Max
Unmating Force 10N(1.02Kg) Min; After Test: 8N(0.816Kg)Min
Operating Temperature -55ºC~+85ºC
Durability 5000 Cycles

Images:

Blue USB3.1 A Female STD USB Connector Socket PCB 9PinBlue USB3.1 A Female STD USB Connector Socket PCB 9Pin

UB51A-9LA50-RHB.pdf, if you need the Drawing, pls download it

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
