CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C
Specifications
Brand Name :
Jinze
Model Number :
UB73A-9LA20-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
PA9T UL94V-0
Color :
Blue 300C
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computer
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C

Specifications:

Housing PA9T UL94 V-0 Blue 300C
Contact 4PIN C5191 T=0.25mm
5PIN C2680 T=0.25mm
Shell SUS201 T=0.3mm
Contact Plating Au 1u" Plated on Contact Area
Matte-Sn 80u" Min Plated on Solder Tails
Ni 50u" Min Plated Over all
Shell Plating Bright Nickel 50u" Min Plated All Over
Contact Current Rating 1.8A For Pin1& 4
0.25A for other contacts
Contact Resistance 30mΩ Max. initial For Vbus & GND Contacts
50mΩ Max Initial for All other Contacts
Insulation Resistance 1000mΩ Min. at DC 500V
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N Max.
Unmating Force 10N Min.
Operating Temperature -25ºC~+85ºC
Recommened Process IR Feflow 260º 10S

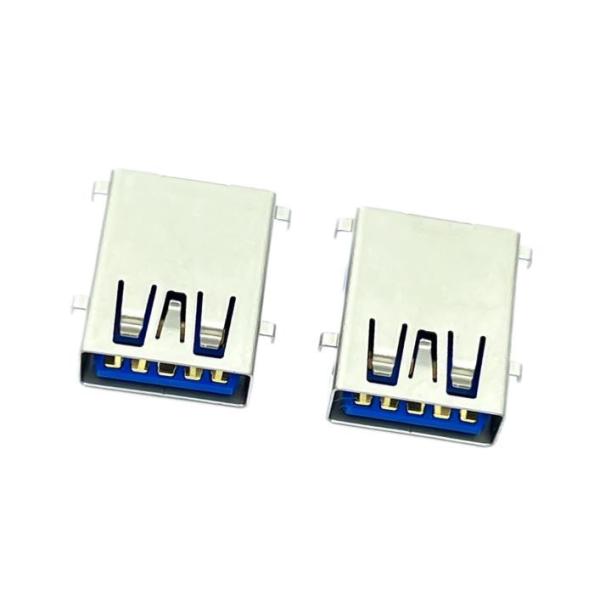

Images:

CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300CCH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300CCH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C

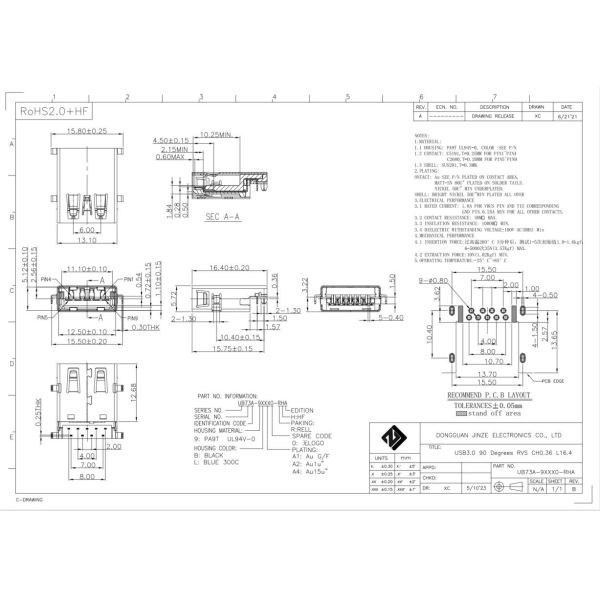

UB73A-9xxx0-RHA.pdf, if you need the Drawing, pls download it

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
