LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
Specifications
Brand Name :
Jinze
Model Number :
DP01S-LBA41-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Material :
LCP UL 94 V-0
Color :
Black
Gender :
Receptacle
Application :
Information Technology Sector/ Automotive Industry/ Gaming Consoles
Number of Contacts :
20 Contact
Number of Ports :
1 Port
Current Rating :
0.5AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
330pcs per Reel
Description

LCP DP Displayport Connectors 90 Degree SMT DIP Solder Micro Usb Socket Female Feet 1.4mm

Specifications

Hosuing LCP, UL94V-0
Color Black
Contact C2680, T=0.20mm
Shield C2680, T=0.40mm
Cover LCP, UL 94V-0
Contact Finish Gold (1u") Plating in Contact Area
80u" Min Tin Plated in Solder Area
50u" Min. Nickel Underplated Overall
Shield 50u" Min. Nickel Underplated Overall
Current Rating 0.5A
Voltage Rating 40V
Contact Resistance 40 mΩ Max
Insulation Resistance Unmated: 100mΩ Min at 500 VDC
Insulation Resistance Mated: 10mΩ Min at 150 VDC
Dielectric Withstanding Voltage 500 V AC/1 Minute
Durabilty 10000 Cycles
Operation Temperature -20°C~+85°C
Storage Temperature -20°C~+65°C

Images:

LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm

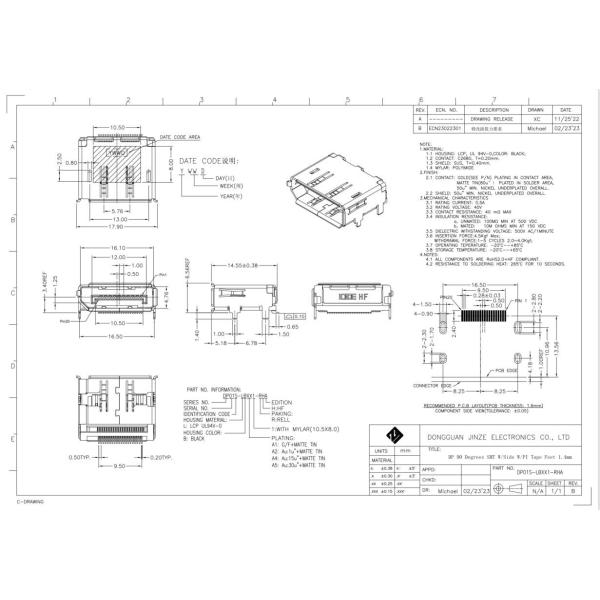

Drawings:

LCP SMT DIP Solder Micro Usb Socket Female Feet 1.4mm

DP01S-LBA41-RHA.pdf, if you need the Drawing, pls download it!

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

What is DisplayPort?

DisplayPort, or DP for short, is a digital display interface standard primarily used to connect a computer to a monitor. It was developed by the Video Electronics Standards Association (VESA) and was designed as a successor to VGA, DVI, and LVDS. DisplayPort offers several advantages over other display interface standards, including support for high-resolution displays, high refresh rates, and the ability to transmit audio and video over a single cable. DisplayPort is commonly used on computer monitors, graphics cards, and laptops, and is also used in some consumer electronics devices such as TVs and Blu-ray players. DisplayPort comes in different versions, with DisplayPort 2.1 being the most recent and offering the highest bandwidth and support for the latest display technologies.
