Specifications
Brand Name :
Jinze
Model Number :
UB82A-9BA23-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
PA9T UL94V-0
Color :
Black
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

ODM 10G CH1mm Socket Mini USB Pin Socket 3.1 Type A PCB

Specifications:

Insulator PA9T UL94 V-0 Black
Contact C5210 (T=0.20mm)
Shell SUS304 (T=0.2mm)
Cover SUS301 (T=0.15mm)
Contact Plating Au 1u" Plated on Contact Area
Matte-Tin 100u" Min Plated on Solder Tails
Ni 50u" Min Plated Over all
Shell Plating Nickel 50u" Min Plated Over all
Contact Current Rating 1.8A For Pin1& 4
0.25A for other contacts
Contact Resistance 30mΩ Max. initial For Vbus & GND Contacts
50mΩ Max Initial for All other Contacts
Insulation Resistance 100mΩ Min. at DC 500V
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 10~25N
Unmating Force 10~25N
Operating Temperature -20ºC~+85ºC
Resistance To Reflow Soldering Heat 260º+0/-5º, 10s

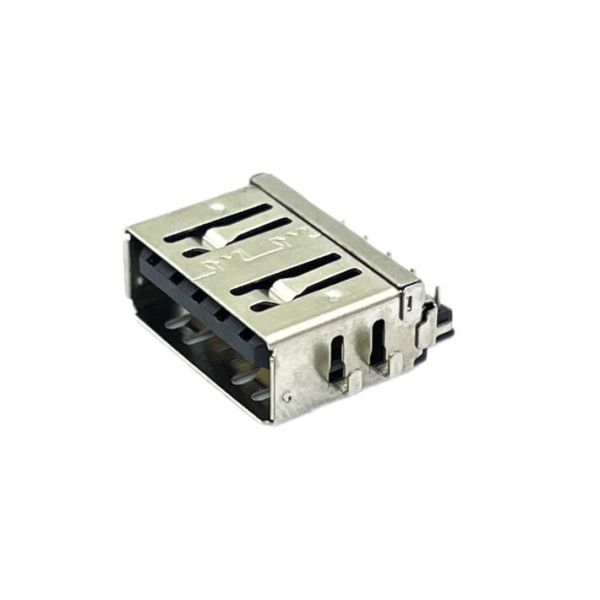

Images:

ODM 10G CH1mm Socket Mini USB Pin Socket 3.1 Type A PCBODM 10G CH1mm Socket Mini USB Pin Socket 3.1 Type A PCB

ODM 10G CH1mm Socket Mini USB Pin Socket 3.1 Type A PCB

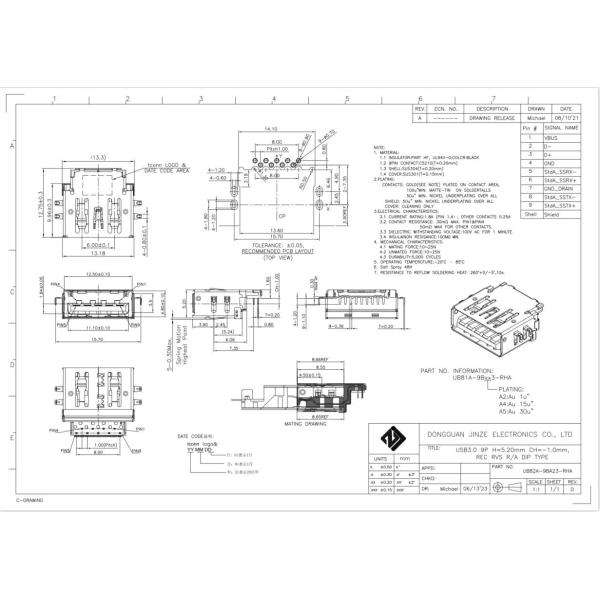

UB82A-9BA23-RHA.pdf, if you need the Drawing, pls download it!

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
