LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM
Specifications
Brand Name :
Jinze
Model Number :
UB53B-LLA5N-THA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Tray Packaging
Housing :
LCP UL94V-0
Color :
Blue 300C
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

LCP UL94V-0 A micro USB Socket Connector Female PCB Mount ODM

Specifications:

Housing LCP UL94 V-0 Blue (300C)
Contact C5191 ,T=0.20mm For Pin1~Pin4
C2680, T=0.20mm For Pin5~Pin9
Shell SUS201, T=0.30mm
Contact Plating Au 30u" Plating on Contact Area
Matte Tin 100u" Min Plated on Solder Tails
Ni 50u" Min Plated Over all
Shell Plating Nickel(50u" Min.) Plating Overall
Contact Current Rating 1.8A for Pin1&4
0.25A for All the other contacts
Voltage Rating 30V DC/AC Max.
Contact Resistance 30mΩ Max. initial For Vbus & GND Contacts
50mΩ Max Initial for All other Contacts
Insulation Resistance 100mΩ Min.
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N(3.57Kg) Max
Unmating Force 10N(1.02Kg) Min; After Test: 8N(0.816Kg)Min
Operating Temperature -55ºC~+85ºC
Durability 5000 Cycles
Salt Spray 48HR Pass

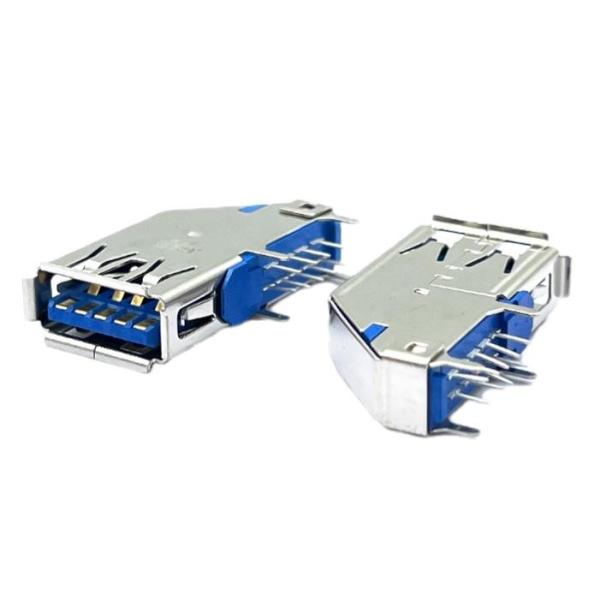

Images:

LCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODMLCP UL94V-0 A Micro USB Socket Connector Female PCB Mount ODM

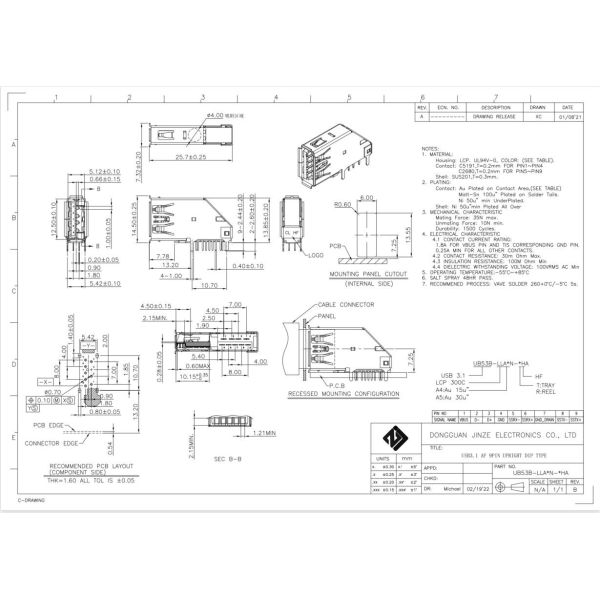

UB53B-LLA5N-THA.pdf, if you need the Drawing, pls download it

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
