DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin
Specifications
Brand Name :
Jinze
Model Number :
UB97A-9BA20-THA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
UB97A-9BA20-THA
Color :
Black
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin

Specifications:

Housing PA9T UL94 V-0 Black HF
Contact 4PIN C5191 (T=0.20mm)
5PIN C2680 (T=0.20mm)
Shell SUS201, T=0.3mm
Contact Plating Contact Area: Au 15u"
Solder Area: Matte Tin 80u" Plated
Ni 50u" Min Underplated
Shell Plating Ni 40u" Min Plated Overall
Current Rating

1.8A for Pin1&Pin4; 0.25A for other cotacts
Contact Resistance 30mΩ Max for VBUS and GND
50mΩ Max for All other contacts
Insulation Resistance 100mΩ Min
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N Max.
Unmating Force 10~25N
Operating Temperature -40ºC~+85ºC
Durability 5000 Cycles
Recommened Process IR Reflow 260º 10s
Salt Spray 48H

Images:

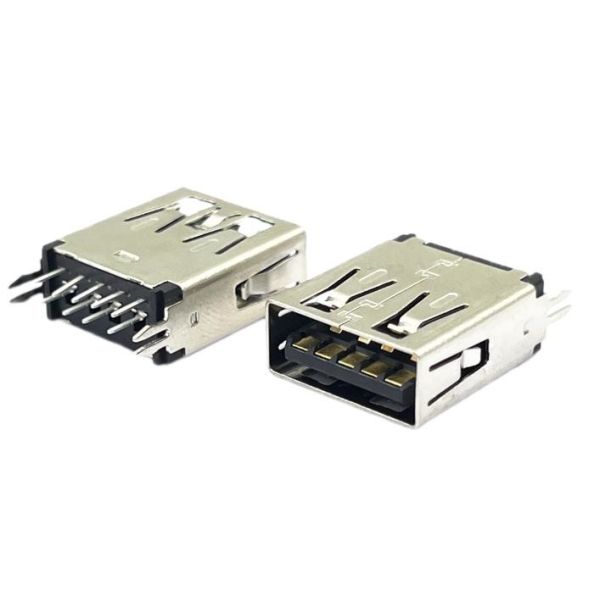

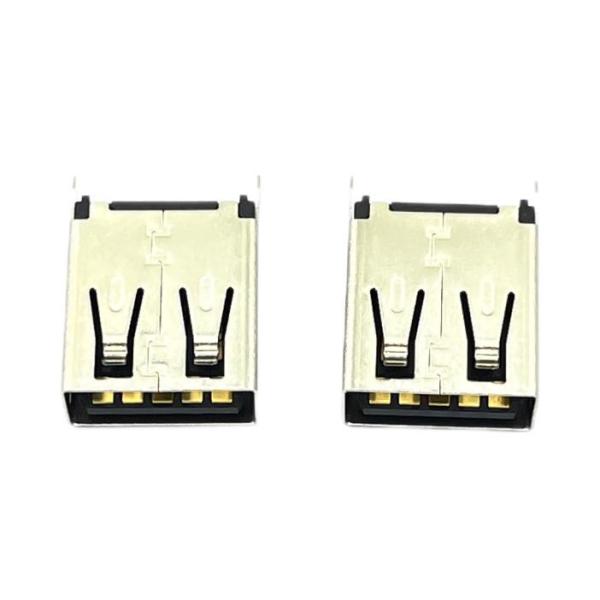

DIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9PinDIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9PinDIP Surface Mount Micro 3.1 USB Socket Connector Female STD H15mm 9Pin

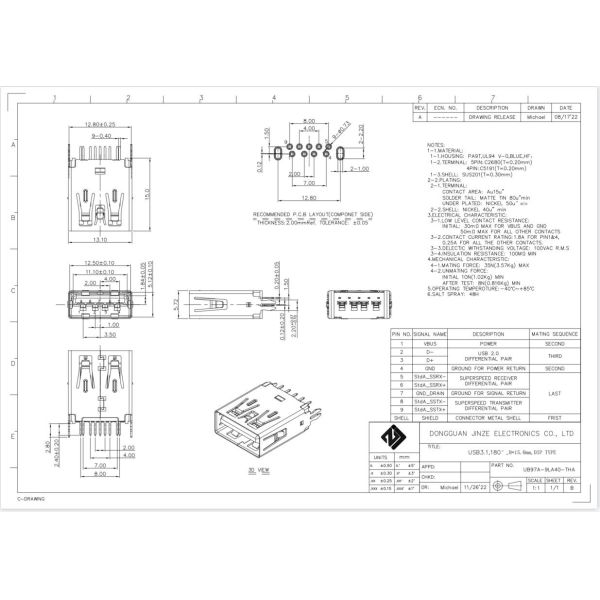

UB97A-9LA40-THA_.pdf, if you need the Drawing, pls download it
