ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A
Specifications
Brand Name :
Jinze
Model Number :
UB105A-9LA2A-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
PA9T UL94V-0
Color :
Blue 300C
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A

Specifications:

Housing PA9T UL94V-0 Blue 300C
Contact C5191
Shell SUS201
Contact Plating Contact Area: Au 1u"
80u" Min. Matte Tin on Soldertails
50u" Min. Nickel underplating Over All
Shell Plating Ni 50u" Min Plated
Contact Current Rating 1.8A for Pin 1&4
0.25A for All the other contacts
Voltage Rating 30V DC/AC Max.
Contact Resistance 30mΩ Max for VBUS and GND
50mΩ Max for All other contacts
Insulation Resistance 100mΩ Min.
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N(3.57Kg) Max
Unmating Force Initial: 10N(1.02Kg) Min
After Test: 8N(0.816Kg)Min
After Test 8N(0.816Kg) Min.
Operating Temperature -55ºC~+85ºC
Salt Spray 48H Pass
Durability 5000 Cycles

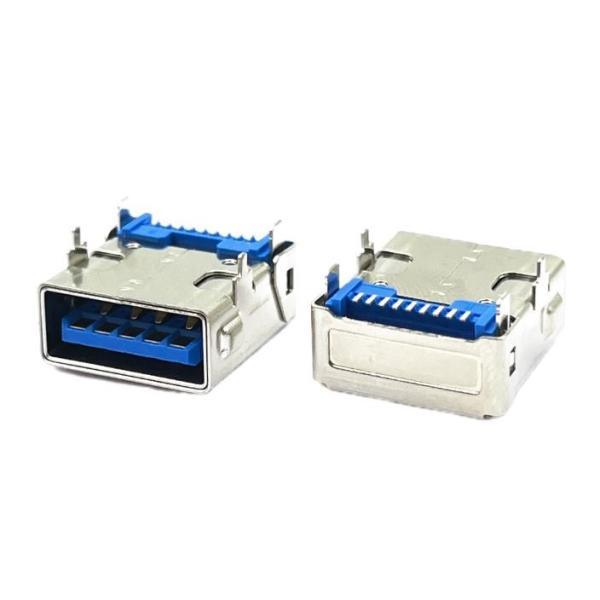

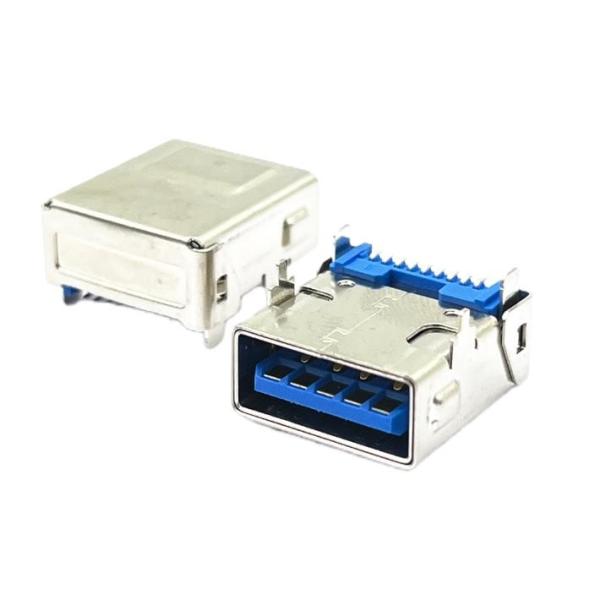

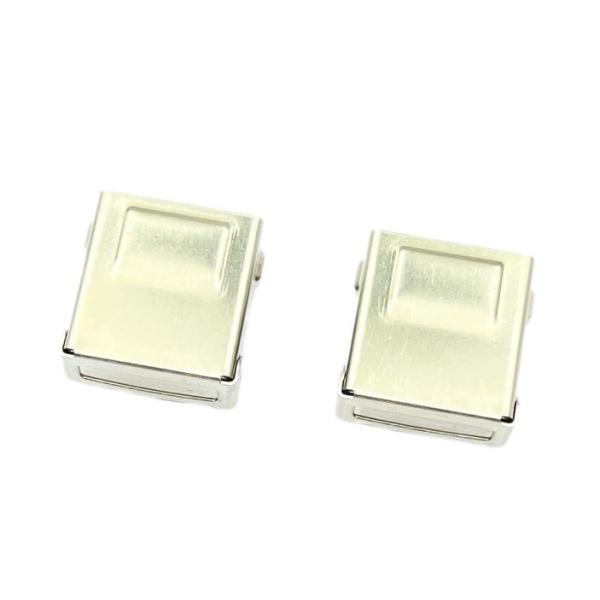

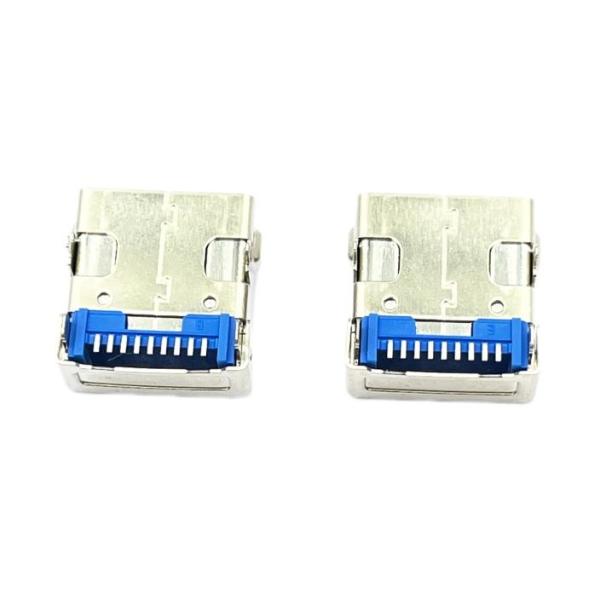

Images:

ODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/AODM PA9T Blue 300C USB3.1 A Mini Usb Female Socket 9Pins STD R/A

UB105A-9LA2A-RHA.pdf, if you need the Drawing, pls download it

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
