15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
15u PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
Specifications
Brand Name :
Jinze
Model Number :
UB09G-0BA4F-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
PA10T UL94V-0
Color :
Black
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

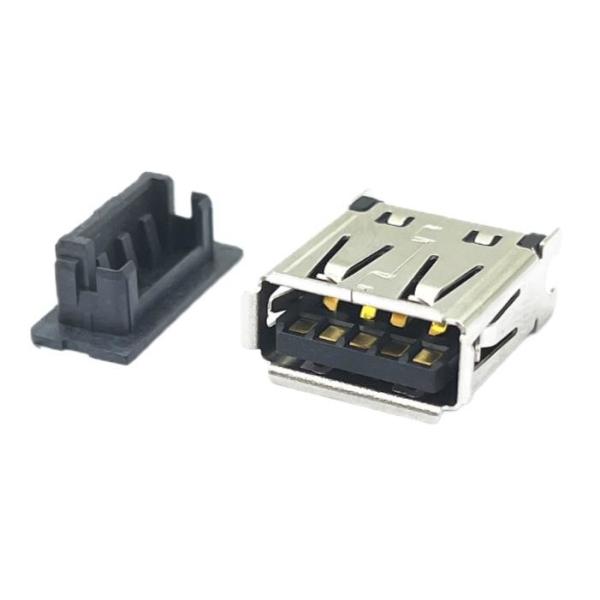

15u" PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm

Specifications:

Housing PA10T UL94V-0 Black
Contact C2680, T=0.20mm
Shell SUS201, T=0.3mm
Contact Plating Contact Area: Au 1u"
50u" Min. Matte Tin on Soldertails
30u" Min. Nickel underplating Over All
Shell Plating Ni 30u" Min Plated
Contact Current Rating 1.8A for Vbus Pin and Tis Corresponding GND Pin
0.25A for All the other contacts
Contact Resistance 30mΩ Max for VBUS and GND
50mΩ Max for All other contacts
Insulation Resistance 100mΩ Min.
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N(3.57Kgf) Max.
Unmating Force Initial 10N(1.02Kgf) Min.
After Test 8N(0.816Kg) Min.
Operating Temperature -40ºC~+85ºC
Salt Spray 48H Pass

Images:

15u

15u

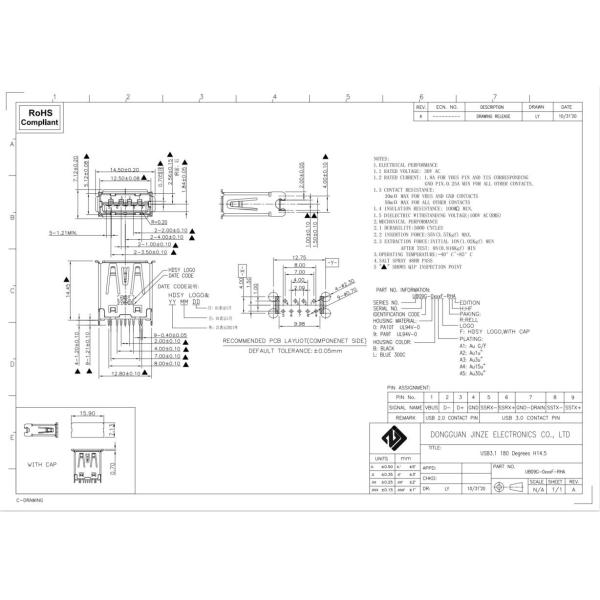

UB09G-0BA4F-RHA.pdf, if you need the Drawing, pls download it
