Specifications
Brand Name :
Jinze
Model Number :
RJ25A-PBA10-TRA
Certification :
ISO9001/ROHS/CE/FCC
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Tray Packaging
Current Rating :
1.5 Amps
Voltage Rating :
30 VAC
Insulation Resistance :
1000 MΩ Min.
Contact Resistance :
40 MΩ Max.
Withstanding Voltage :
500V AC
Gender :
Female (Receptacle)
RJ45 Connector Speed :
10/100/1000/1G Base-TX
Number of Contacts :
8P8C (RJ45,Ethernet)
OEM/ODM :
YES
Description

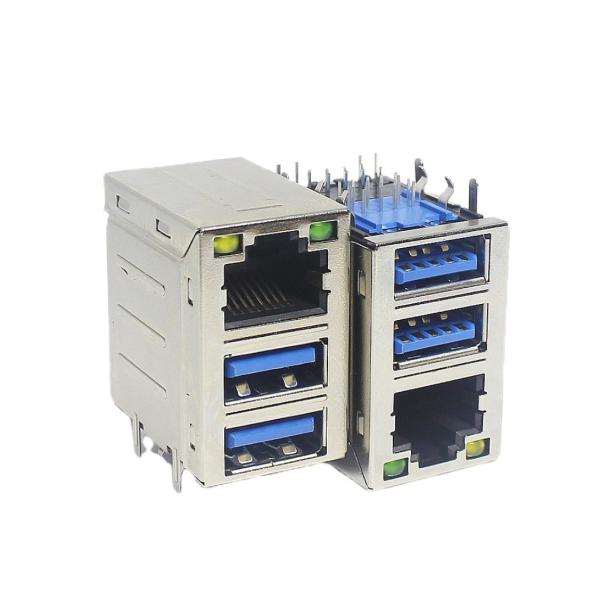

A USB2.0+RJ45 connector is a type of adapter that allows a device to connect to a network via an Ethernet cable. The adapter typically has a USB 2.0 port on one end and an RJ45 port on the other end.

The USB port is used to provide power to the adapter and to transfer data between the adapter and the device it is connected to. The RJ45 port is used to connect the adapter to a wired Ethernet network.

Specifications

RJ45 Housing: High Temperature Thermo Plastics, PBT, BK, UL94V-0
USB Housing: High Temperature Thermo Plastics, PBT, Blue, UL94V-0
Insert Base: High Temperature Thermo Plastics, PBT, BK+Blue, UL94V-0
Contact: Copper Alloy
Shell: SUS
Contact: Tin Plating 100u" on Solder tail area
USB Contact: Gold Plating Flash on Contact area, 30u" min Ni underplating over all
Voltage Current Rating: 1.5 AMP. 30V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30MΩ Max.
Dielectric Withstanding Voltage: 500 V AC
Dimension: 19.05mm*27.50mm*31mm
Operating Temperature: -45°c to +85°c
LED Option Green/Yellow

500V USB3.0 Stacked Female Micro USB Board Connector PCB ODM

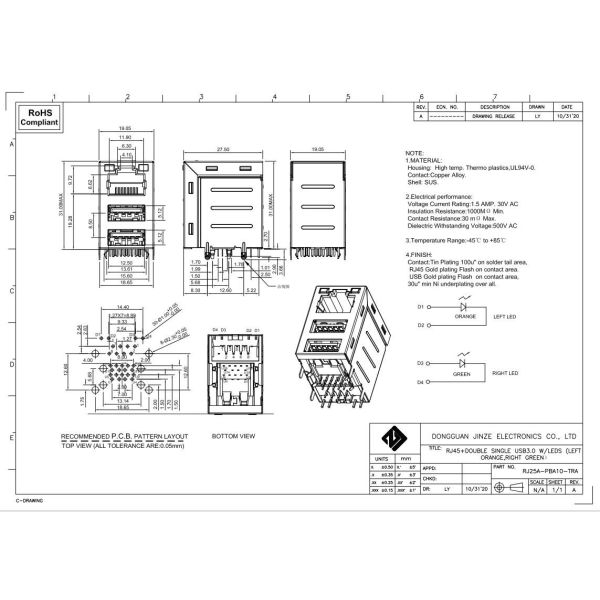

Drawings

500V USB3.0 Stacked Female Micro USB Board Connector PCB ODM

2D Drawings:

RJ25A-PBA10-TRA.pdf, if you need the Drawing, pls download it

Our advantage
1. Professional connector manufacturer, a variety of styles to choose from, providing the best EXW price! 100% QC shipping inspection, quality assurance!

2. We can provide free samples for you to test!

3. We support OEM/ODM. If the product is not what you want, please contact us directly, we will make the best solution for you for free!

4. Large-scale production workshop, fast delivery, immediate delivery, guaranteed delivery.

5. One-to-one after-sales service, please feel free to contact us if you have any questions.
