ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u
Specifications
Brand Name :
Jinze
Model Number :
DP07Q-LBA41-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Material :
LCP UL 94 V-0 Black
Gender :
Receptacle (Female)
Application :
Communication/Entertainment/Industrial/Mobile Handheld
Number of Contacts :
20 Contact
Number of Ports :
1 Port
Current Rating :
0.5AMP Max
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
330pcs per Reel
OEM/ODM :
Yes
Description

DisplayPort Connector, Au 15u Plating, Matte Tin 80u Plating, Nickel Plating 50u, 0.5A Max, 40mΩ Max

Specifications

Housing LCP UL94V-0 Black
Contact Brass (C2680), T=0.20mm
Shield SUS, T=0.40mm
Cover LCP UL 94V-0 Black
Mylar Polyimide
Terminal Finish Au 15u" Plating on Contact Area
Matte Tin 80u" plating on solder tail
Under Nickel Plating 50u" Min Over All
Shield 50u" Min. Nickel
Current Rating 0.5A Max
Contact Resistance 40mΩ Max
Insulation Resistance Unmated 100mΩ Min. At 500 VDC
Mated 10mΩ Min. At 150 VDC
Dielectric Withstanding Voltage 500 V AC/1 Minute
Durabilty 10000 Cycles
Insertion Force 4.5Kgf Max
Withdrawal Force 1-5 Cycles Mating 2.0-4.0Kgf
Operation Temperature -20°C~+85°C

Images:

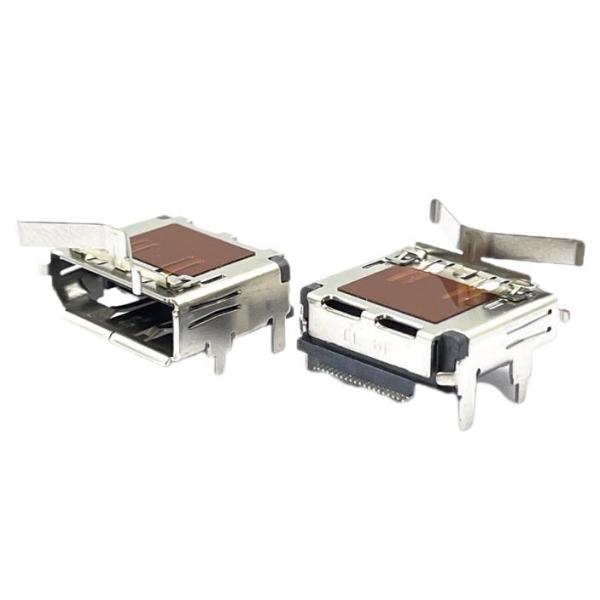

ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u

Drawings:

ODM DisplayPort PCB Mount USB Connector Female Nickel Plated 50u

DP07Q-LBA41-RHA.pdf, if you need the Drawing, pls download it!

FAQ

Q: How long does it take for items quoting?

A: Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.

Q: Do you have any minimum order quanity (MOQ) requirement?

A: No, we can support your projects starting from prototypes to mass productions.

Q: Can I get sample before regular order?

A: Yes, of course, we can provide sample for checking and testing.

Q: What is your products' warranty?

A: We offer 365 days warranty to our products. Our products are all original and new from manufacturer. It must be work if the model number is correct. If you meet any problem when using, you can contact us freely, and we will help you to resolve it ASAP.

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
