0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u Plating
Specifications
Brand Name :
Jinze
Model Number :
DP06B-LBA20-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Material :
LCP UL 94 V-0
Color :
Black
Gender :
Receptacle (Female)
Application :
Information Technology Sector/ Automotive Industry/ Gaming Consoles
Number of Contacts :
20 Contact
Number of Ports :
1 Port
Current Rating :
0.5AMP Max
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
330pcs per Reel
OEM/ODM :
Yes
Description

LCP Displayport DP Connectors 90 Degree SMT DIP Solder 1u" Plating

Specifications

Hosuing LCP UL94V-0 Black
Cover LCP UL94V-0 Black
Contact C2680 T=0.20mm
Shield C2680 T=0.40mm
Terminal Finish Gold 1u" Plating on Contact Area
Matte Tin 80u" plating on solder tail
Under Nickel Plating 50u" Min Over All
Shell Cu 100u"+ Ni 100u" Plated
Current Rating 0.5A Max
Voltage Rating 40V
Contact Resistance 40 mΩ Max
Insulation Resistance Unmated 100mΩ Min. At 500 VDC
Mated 10 mΩ Min. At 150 VDC
Dielectric Withstanding Voltage 500 V AC/1 Minute
Durabilty 10000 Cycles
Operation Temperature -20°C~+85°C
Storage Temperature -20°C~+65°C

Images:

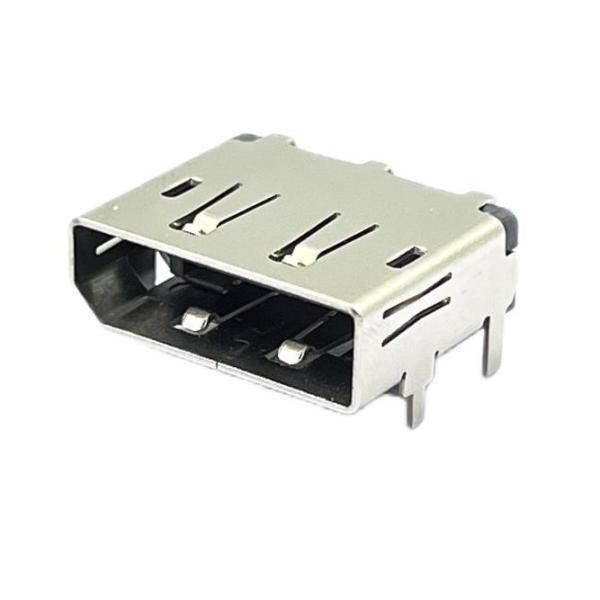

0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u

0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u

Drawings:

0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u

DP06B-LBA20-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations
