Nao Drum Brake Linings 0.35~0.45 Friction Coefficient Customized Packaging

What is Drum Brake?

Drum Brake Linings

Drum brake is a brake that uses friction caused by a set of shoes or pads that press outward against a rotating cylinder-shaped part called a brake drum. Drum braking linings have brake drums that rotate with the wheels.

Brake shoes fitted with brake linings (friction material) which press against the drums from the inside to generate braking force (decelerate and stop) are set inside of the drums.

With this system, friction is generated by pressing the brake linings against the inside surfaces of the drums. This friction converts kinetic energy into thermal energy. Drum rotation helps to press the shoes and the lining against the drum with more force, offering superior braking force in comparison with disc brakes. On the other hand, it is very important to design the components so that the heat from the thermal energy is dissipated efficiently into the atmosphere.

There are three types of drum brakes depending on how the brake shoes are pressed on to the drums; leading/trailing shoe type, twin leading shoe type and duo-servo type.

Structure of drum brakes

Drum brakes are a brake system with brake drums (rotor) which rotate with the wheels. Inside each drum are brake shoes fitted with brake linings (friction material). Pistons (pressure mechanism) press against the drums from the inside to generate braking force, thus making is possible to decelerate and stop the vehicle.

Structure of drum brakes

Drum brakes are a brake system with brake drums (rotor) which rotate with the wheels. Inside each drum are brake shoes fitted with brake linings (friction material). Pistons (pressure mechanism) press against the drums from the inside to generate braking force, thus making is possible to decelerate and stop the vehicle.

How drum brakes work

When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons press the brake linings, which are friction materials, against the inside surfaces of the brake drums which rotate with the wheels. The linings are pressed on the rotating drums, which in turn decelerate the wheels, thereby slowing down and stopping the vehicle.

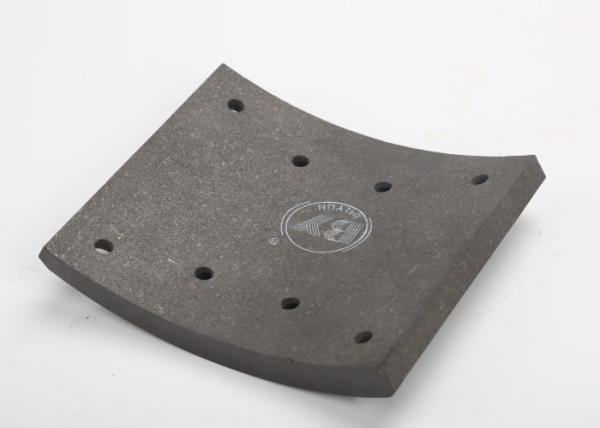

BAIYUN Drum Brake Linings

Characteristic
1. High quality raw materials
2. Good heat dissipation
3. Do not damage the drum
4. Low noise
5. Good friction coefficient.
6. High temperature resistant
7. Environment-friendly
8. High Perfomance
9. Reasonable price,good quality .
10. More than 1000+ specifications
11. Super wear-resistant
12. Low density, low weight

Description of BAIYUN Drum Brake Linings

WHY CHOOSE BAIYUN

PROFESSIONAL TEAM: Since 1977, focus on brake over 40 years; Drafting unit of China friction&sealing material industry standard
OEM & ODM: Top 10 of enterprises in friction material industry of China; OEM & ODM quality and service
EXCLUSIVE FORMULA: Safety, Comfortable,Asbestos-free,Wear-resisting,Heat-resisting,Less noise, Less disc injury
CERTIFICATE: ISO9001, ISO/TS16949, E-Mark, Link-Test Report, Greening-Test Report, SGS,MA,CNAS

BAIYUN Certificate

Zhengzhou Baiyun Industrial Co., Ltd.

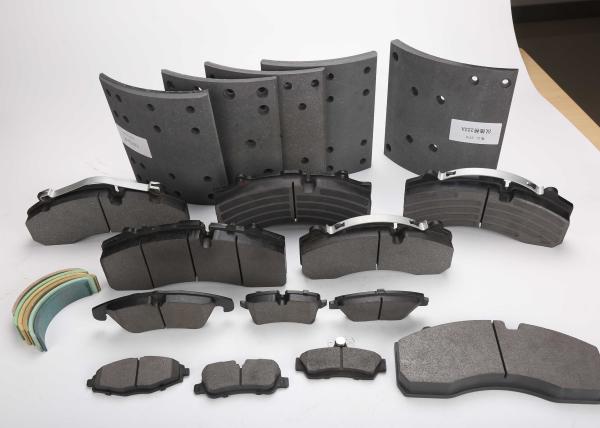

Zhengzhou Baiyun Industrial Co., Ltd., since 1977, is a national high-tech enterprise with main products of brake friction material and brake products. For more than 40 years, Baiyun focus on the R&D, production and selling of brake linings & pads for commercial vehicles and passenger cars, fighting for human traffic braking safety. Till now, Baiyun has become an important supporting supplier and partner of many famous domestic and overseas auto brands. Baiyun has also reached long term strategic cooperation with many famous domestic and overseas auto parts distributors.

Zhengzhou Baiyun Industrial Co., Ltd., is one of the leading auto friction braking enterprise in China, Top 10 enterprises of China Friction Material Industry and member of friction industry association. Baiyun has passed ISO9001 Quality Management System and IATF16949 Auto Industry Quality System Certification. Long-term cooperation is established with international authoritative test organizations such as America LINK and GREEN to test Baiyun brakes regularly. There are more than 1000 models brakes of Baiyun have obtained E-mark certification till now.

Baiyun will insist on the enterprise mission “create value for customers, create happiness for employees” continuously forge ahead, and create a more brilliant future
