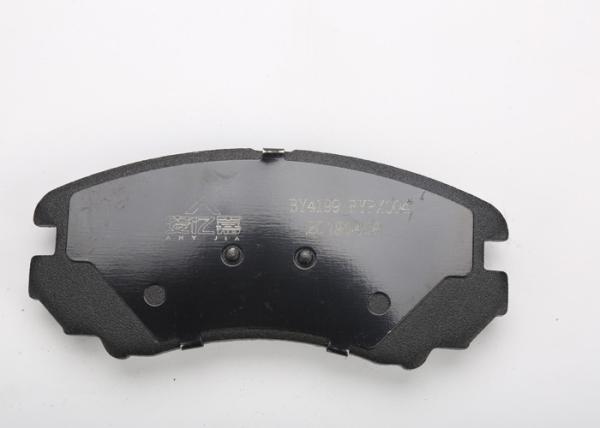

NAO Ceramics Car Front Brake Pads 100% Tested 0.35~0.45 Friction Coefficient

BAIYUN Passenger Car Brake Pads & Linings

Brakes For Passenger Cars

Passenger car is a road motor vehicle, other than a moped or a motor cycle, intended for the carriage of passengers and designed to seat no more than nine persons (including the driver). Baiyun main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture friction materials such as brake pads and brake linings, as well as functional components such as disc brakes and drum brakes.

Disc & Drum Brakes For Passenger Cars

Braking System of Disc & Drum Type

This thermal energy generates heat, but since the main components are exposed to the atmosphere, this heat can be diffused efficiently. This heat-dissipating property reduces brake fade, which is the phenomenon where braking performance is influenced by the heat. Another advantage of disc brakes is its resistance to water fade, which occurs when the water on the brakes significantly reduces braking force. When the vehicle is in motion, the rotor spins at high speeds and this rotational motion discharges the water from the rotors themselves, resulting in stable braking force.

Disc brakes are generally used in passenger cars, but due to their stable performance at higher speeds and resistance to brake fade, they are gradually spreading into the commercial vehicle segment, where drum brakes were traditionally chosen for their longer service life. There is increasing demand from customers for longer service life and higher quality, and Baiyun is committed to meeting them through further development of the disc brake’s reliability. There are two types of disc brakes.

The "opposed piston type disc brake" has pistons on both sides of the disc rotor, while the "floating type disc brake" has a piston on only one side. Floating caliper type disc brakes are also called sliding pin type disc brakes.

Test Results of BAIYUN Passenger Cars Brakes

Characteristic:
1. High quality raw materials
2. Good heat dissipation
3. Do not damage the drum
4. Low noise
5. Good friction coefficient.
6. High temperature resistant
7. Environment-friendly
8. High Perfomance
9. Reasonable price,good quality .
10. More than 1000+ specifications
11. Super wear-resistant
12. Low density, low weight

Friction Materials of Passenger Cars Brake Pads

1, Friction Raw Material

2,Types of friction materials

*1 Sintered alloy: The phenomena where the particles of powder material join together and turns into a solid substance by pressurizing and fabricating the powder material and heating it at temperatures below the melting point. Material that is not made by melting metal, but instead by sintering metal powders is called sintered alloy.
*2 C/C composite: Carbon fiber reinforced carbon composite. Carbon composite material has been strengthened with carbon fiber. It is extremely thermally stable and lightweight. This material is often used for brake rotors and brake pads for aircraft and racing cars.

3, Friction Material of Baiyun


4, Manufacturing process of friction materials
