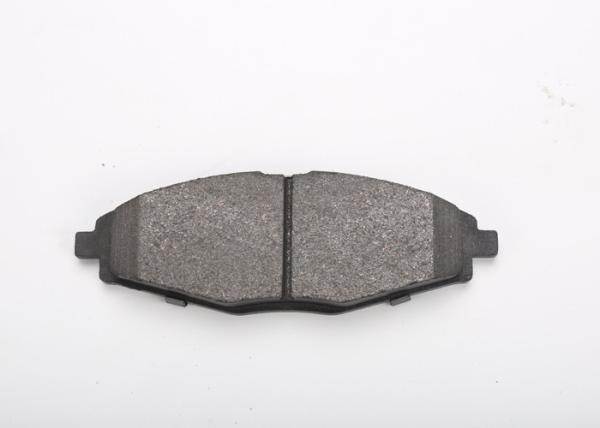

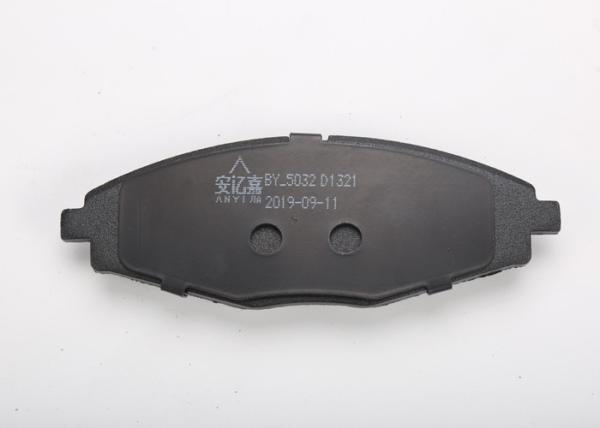

Wear Resistance Light Vehicle Brake Pads D1314 Model Number Customized Packaging

BAIYUN LIGHT VEHICLE BRAKE PADS

AS GREAT AS A BAIYUN PREMIER PAD, MINUS THE COPPER
BAIYUN brake tested on 6 popular vehicles models: consistency of performance results ascertained
Up to 17% more stopping power than competitors' brands on selected vehicles makes the BAIYUN pad

the best product with a technical innovation already approved and adopted by vehicle

manufacturers.

BAIYUN MAKES IT GREENER FOR BEST-IN-CLASS PERFORMANCE WITH THIS TECHNOLOGICAL BREAKTHROUGH
Green materials for a greener product & a significant reduction of fine particles emissions

Much more safety
Best-in-class performance results
Lower Noise

● Excellent and stable braking performance

● Excellent heat resistance, excellent braking performance even at high temperatures

● Small damage to the disc, do not often replace the disc

● It is not easy to have sound or noise
wear resistance, can run longer mileage

● Metal free, stable performance in extreme cold and hot climateHeat treatment
● Intelligent digital display temperature control instrument, PID parameters self-adjusting, solid-state relay, the heating process is done automatically.

● Independent super temperature automatic alarming system

● Real-time supervision, trend chart is done automatically, easy for fault solving.

BAIYUN Car Rear Brake Pads

Factors affecting brake pad quality/performance:

1). Components:
The quality of the components used, such as the disc brake sheet's steel back and muffler, also affects the performance and quality of the entire brake pad.

2). Formula and materials:
a. What kind of materials are included in the recipe?Is the ratio of various materials in the formula scientific and reasonable?There are dozens of commonly used materials such as: Arron, copper fiber, ceramic fiber, carbon fiber, synthetic graphite, six titanium potassium acid whisker, powder nitrile, antimony sulfide, etc
b. Purity and quality of materials purchased by the company
3). Processing technology:
a. Control management and protection of materials and components.
b. Pressing effect of pressing process, pressing pressure, whether it is equal ratio pressing, pressing temperature and duration, etc.
c. Whether the heat treatment temperature and time are appropriate, and whether the grinding process is fine and standardized.
d. Procedures such as sandblasting and polishing, adhesive coating, marking and packaging, and control of semi-finished products and finished products

Advanced bus brake pad full automatic production line
Features:
● 4 stations in one group, each station’s hydraulic and electric controlled separately.
● Feeding, weighing, unloading, pressing, catch backing plate, mold release painting, dust purging are all automatic controlled by truss robot.
● All truss robots are automatically control by software. Unattended production is achieved.
● Real-time online control. Fault & overlimit will result in automatic alarming.

Brakes Production process

1). Production process of drum brake linings for commercial vehicles:
Stir ingredients -- -- -- -- -- - > pressure molding (pressing blank + pressure molding) -- -- -- -- -- -- -- -- -- -- -- - > > heat treatment chamfering, grinding inside arc -- -- -- -- -- - > -- -- -- -- -- - > drilling grinding outer arc rubbing surface -- -- -- -- -- - > brush ash printed label -- -- -- -- -- - > thermoplastic packing -- -- -- -- -- - > artificial packing packaging
2). Production process of disc brake pads for passanger cars:
Ingredients stirring + polishing of the steel back -- -- -- -- -- - > glue -- -- -- -- -- - > pressure molding - -- -- -- -- -- -- -- -- -- -- - > > heat treatment friction surface grinding, chamfering, slot -- -- -- -- -- - > spray painting -- -- -- -- -- - > the silencing pills -- -- -- -- -- - > surface coated -- -- -- -- -- > spring, three jaw -- -- -- -- -- - > thermoplastic packing -- -- -- -- -- - > artificial packing packaging
3). Production process of disc brake pads for commercial vehicles:
Ingredients stirring + polishing of the steel back -- -- -- -- -- - > glue -- -- -- -- -- - > pressure molding - -- -- -- -- -- -- -- -- -- -- - > > heat treatment friction surface grinding, chamfering, slot -- -- -- -- -- - > spray painting -- -- -- -- -- - > laser marking loading -- -- -- -- -- - > spring -- -- -- -- -- - > thermoplastic packing -- -- -- -- -- - > artificial packing packaging

Zhengzhou Baiyun Industrial Co., Ltd.

Zhengzhou Baiyun Industrial Co., Ltd., is one of the leading auto friction braking enterprise in China, Top 10 enterprises of China Friction Material Industry and member of friction industry association. Since 1977, is a national high-tech enterprise with main products of brake friction material and brake products.Baiyun will insist on the enterprise mission “create value for customers, create happiness for employees” continuously forge ahead, and create a more brilliant future.For more than 40 years, Baiyun focus on the R&D, production and selling of brake linings & pads for commercial vehicles and passenger cars, fighting for human traffic braking safety. Baiyun has passed ISO9001 Quality Management System and IATF16949 Auto Industry Quality System Certification. Long-term cooperation is established with international authoritative test organizations such as America LINK and GREEN to test Baiyun brakes regularly.

BAIYUN FACTORY

PASSENGER CAR BANCH TESTING MACHINE

EQUAL RATIO HYDRAULIC PRESSING MACHINE FOR LIGHT VEHICLE BRAKE PAD

HEAT TREATMENT /CURING OVEN
