NAO Material Ceramic Car Brake Pads With IATF16949 Quality Certificate

Brakes For Passenger Cars

Passenger car is a road motor vehicle, other than a moped or a motor cycle, intended for the carriage of passengers and designed to seat no more than nine persons (including the driver). Baiyun main business is the development and manufacturing of automotive brake-related products. As an independent brake specialized manufacturer, we develop and manufacture friction materials such as brake pads and brake linings, as well as functional components such as disc brakes and drum brakes.

Disc Brake Pads

Brake rotors of disc brakes rotate with the wheels, and brake pads, which are fitted to the brake calipers, clamp on these rotors to stop or decelerate the wheels. The brake pads pushing against the rotors generate friction, which transforms kinetic energy into a thermal energy.

This thermal energy generates heat, but since the main components are exposed to the atmosphere, this heat can be diffused efficiently. This heat-dissipating property reduces brake fade, which is the phenomenon where braking performance is influenced by the heat. Another advantage of disc brakes is its resistance to water fade, which occurs when the water on the brakes significantly reduces braking force. When the vehicle is in motion, the rotor spins at high speeds and this rotational motion discharges the water from the rotors themselves, resulting in stable braking force.

Disc brakes are generally used in passenger cars, but due to their stable performance at higher speeds and resistance to brake fade, they are gradually spreading into the commercial vehicle segment, where drum brakes were traditionally chosen for their longer service life. There is increasing demand from customers for longer service life and higher quality, and Baiyun is committed to meeting them through further development of the disc brake’s reliability. There are two types of disc brakes.

The "opposed piston type disc brake" has pistons on both sides of the disc rotor, while the "floating type disc brake" has a piston on only one side. Floating caliper type disc brakes are also called sliding pin type disc brakes.

Test Results of BAIYUN Passenger Cars Brakes

Characteristic:
1. High quality raw materials
2. Good heat dissipation
3. Do not damage the drum
4. Low noise
5. Good friction coefficient.
6. High temperature resistant
7. Environment-friendly
8. High Perfomance
9. Reasonable price,good quality .
10. More than 1000+ specifications
11. Super wear-resistant
12. Low density, low weight

Friction Materials of Passenger Cars Brake Pads
*1 Sintered alloy: The phenomena where the particles of powder material join together and turns into a solid substance by pressurizing and fabricating the powder material and heating it at temperatures below the melting point. Material that is not made by melting metal, but instead by sintering metal powders is called sintered alloy.
*2 C/C composite: Carbon fiber reinforced carbon composite. Carbon composite material has been strengthened with carbon fiber. It is extremely thermally stable and lightweight. This material is often used for brake rotors and brake pads for aircraft and racing cars.

3, Friction Material of Baiyun


4, Manufacturing process of friction materials

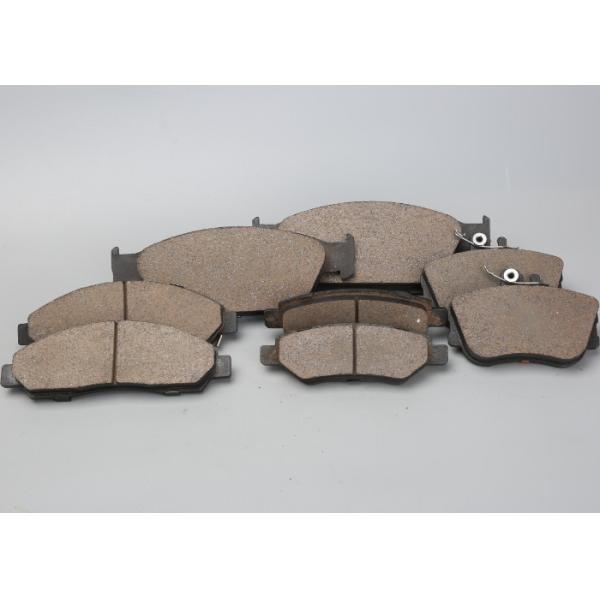

BAIYUN Ceramic Brake Pads

Product Description
BAIYUN Brake Pads are premium replacement pads for any vehicle. They are manufactured with a positive molding process so they wear evenly and last a very long time. Their back plates come precision-cut so they will fit perfectly in your brake caliper and produce the least amount of dust! Another huge benefit of these BAIYUN brake pads is you won’t ever have to hear any annoying squeaks or squeals. They are equipped with custom-made shims that are mechanically attached to help eliminate any brake noise.
Clean Performance
BAIYUN Brake Pads are one hundred percent asbestos-free and are one of the best in the industry if you’re looking for an ultra-low dust brake pad! The ceramic friction material produces less dust than metallic pads and will help keep your rims a lot cleaner. They perform great in all different types of weather conditions and will allow you to have optimal control over your vehicle. To ensure that they are ready to go right out of the box, they are scorched. This removes any impurities in the friction compound, which prepares the brake pad for immediate use and provides a quieter stop with superior stopping power.
Easy Installation
The BAIYUN Brake Pads are designed to be a direct replacement for your stop pads for a hassle free installation. We highly recommend having a certified mechanic install and perform the proper break-in procedures for you new BAIYUN Brake Pads so you can get the most out of them. If you have any questions about BAIYUN Brake Pads or your other braking needs feel free to give us a call and let our knowledgeable sales staff assist you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
