Specifications
Brand Name :
Juneng
Model Number :
DHZ470
Certification :
ISO CE
Place of Origin :
Jiangsu China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per year
Delivery Time :
30 days after order
Packaging Details :
Packed by international standard fumigation wooden case
Name :
disc separator
After-sales service provided :
commissioning and training
Function :
liquid-liquid-solid separation
Operation :
Fully Automatic
Voltage :
220V/380V
Warranty :
1 year
Description

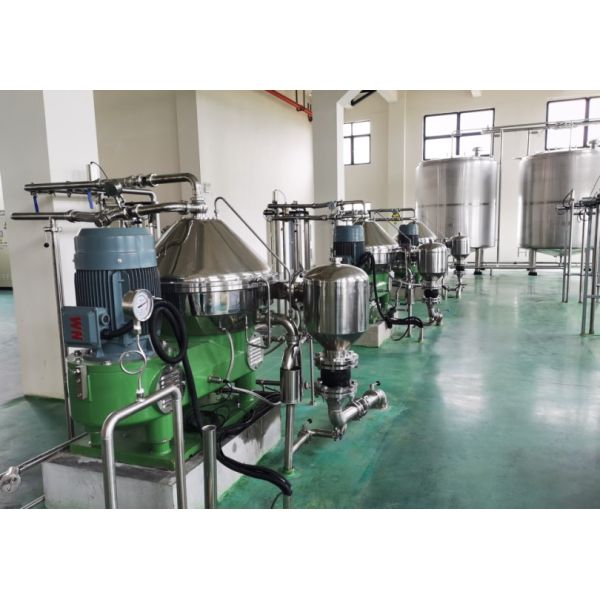

Centrifuge Sludge Dewatering Oil Extraction Crude Fruit Juice Separator From China

Disc Oil Separator Description:

DHZ separator is a high-speed, stable, sealed, efficient and fully automatic special equipment for oil refining. All parts in contact with materials are made of stainless steel, which can effectively reduce the chemical reaction between material separation and surface contact of parts. The separated light and heavy phase materials are output by two centripetal pumps of different sizes.

This machine is feeding on the top, so the feeding pressure is low. The drive of the separator adopts a hydraulic coupling and a pair of helical boosting gears, the power is transmitted by the liquid, the boosting pressure is stable, and there is overload protection.

The buyer should explain to the seller whether the separator is used to separate severely corrosive media, so that the seller can choose anti-corrosion materials. During operation, if the corrosion depth of any part of the drum exceeds 1mm, stop the operation and contact our company immediately.

Special tools:

Description Application
Lock-nut wrench

To mount/dismount lock washer

Hoister for drum

To mount/dismount drum

Wrench for stud sleeve

To mount/dismount stud sleeve

Mounting/dismounting tool for brake wheel and coupler

To mount/dismount brake wheel and hydraulic coupler

Hand hammer

To mount/dismount lock washer

Mounting/dismounting wrench for small lock nut To mount/dismount small lock nut

Disk-pressing unit

To hold down disk
Wrench

To lock nut and lower bearing cover

Mounting/dismounting unit for sliding piston

To mount/dismount slide piston by combining with tool 710

Mounting/dismounting unit for sliding piston

To mount/dismount slide piston

Tool for mounting/dismounting drum part and disc

To mounting/dismounting drum part and disc

Mounting/dismounting tool for valve body

To mount/dismount valve body

Mounting/dismounting tool for small piston

To mount/dismount small piston

Hook wrench

To mount/dismount round nut

Wrench for vertical shaft stud

To mount/dismount vertical shaft stud

Fixer of feed-in pipe

To mount/dismount feed-in pipe nut

Socket wrench

To mount/dismount drum, lock ring by combining with tool 707

Mounting/dismounting device for drum cover

To Mount / dismount drum cover

Disc Oil Separator Parameters:

Model DHZ-470
Speed of drum Approx. 6600 rpm
Capacity 100~150T/D

Disc Oil Separator Application

This separator is widely used for degumming, desoaping and water washing in vegetable oil continuous refining process, is one of the best equipment for modern oil refining. Meanwhile, it is also applicable for separating suspension liquid e.g. two liquids, liquid and solid that have different specific gravities in such industries as light industry, chemical, medicine and food, etc

Disc Oil Separator advantage:

The residue-extraction of slide piston is controlled by computer and PLC, is highly automated, adaptive to change in process, easy to adjust, and can greatly reduce the operation labor of workers.

Centrifuge Sludge Dewatering Oil Separator Extraction Crude Fruit Juice

Our service:

1. Professional Engineer wil recommend you the most suitable model according to your requirement.


2. Supply reference process flow chart .


3. Supply on-site installation and operation test


4. Integration for control system and process


5. Customized size and structure


6. 12Months guarantee period from machine arriving date.


7. Sufficient spare parts in stock are available .


8. Technicians are availabled for overseas service.


9. 24 hours technical consultation .

Training:

Anyone having difficulty in assembling the machine is advised to consult our engineers.

Repair and Maintenance :

No matter need or not, we'll carry on the after-sale tracking service and solve the problem of technology for everycustomer with the help of our engineers.

Juneng Company provides parts and repair, maintenance as well as techical advice for the domestic and import separator in long time. We guarantee the quality of every maintenance and service.
