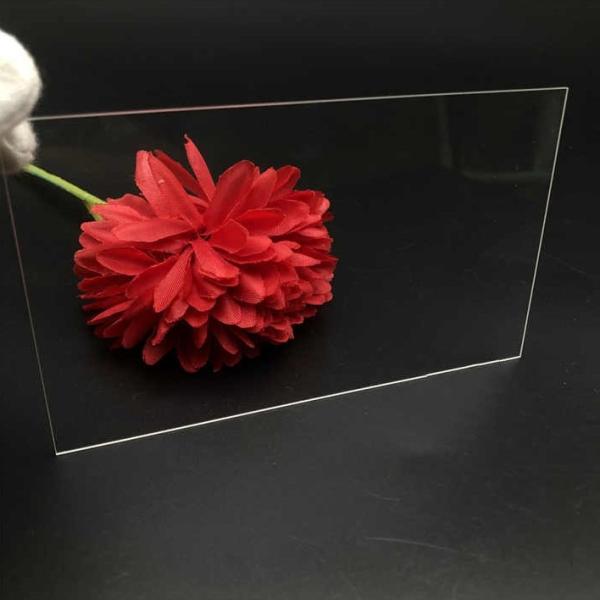

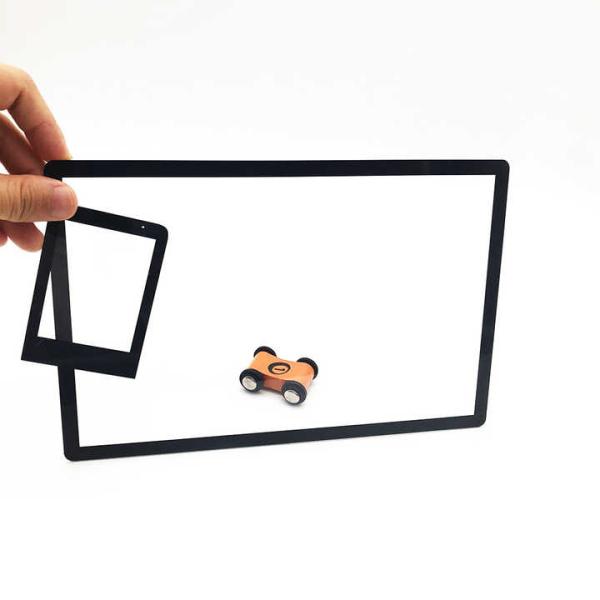

0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
Specifications
Brand Name :
CHIYAN
Model Number :
CHIYAN-M2
Certification :
RoHs/REACH/Sb/Halogen free
Place of Origin :
China
MOQ :
10,000㎡
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2 Million ㎡ per month
Delivery Time :
15-30 days
Packaging Details :
Carton/Pallet
Density :
2.48±0.01
Refractive Index :
1.51±0.01
Young's Modulus :
73.0±0.5
Transmittance :
≥91.5
Volume Resistivity :
≥10.0
Dielectric Constant :
≥7.0
Softening Point :
750±10
Strain Point :
516±5
Annealing Point :
562±5
Thermal Conductivity :
0.682±0.10
Thermal Expansivity :
85±5
Photoelastic Coefficient :
27.0±0.2
Poisson's Coefficient :
0.23±0.02
Vickers-hardness :
610±10
Description

0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed

Ultra Clear Medium Alumino-Silicate Glass(CHIYAN-M2) is an eco-friendly ultra clear alumino-silicate glass with certain strength.

Glass Type: Float glass

Touch screen glass is mainly used for the electronic screen ,is a chemically strengthened glass. is a special soda silicate glass material, which is enhanced by sodium and potassium ion exchange to achieve the purpose of glass strengthening.

Standard shipping Size:1300*1100mm (5th Generation)

Regular Thickness:

2.0mm 1.80mm 1.50mm 1.30mm

1.10mm 0.70mm 0.55mm

0.40mm 0.33mm 0.25mm

Features:

High Bending Strength Resistance

High Impact Resistance

High Scratch Resistance

High Flexibility

CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

Note: The size can be customized according to customer's needs.

Application:Widely used in vehicle, consumer electronics cover glass, photovoltaic, industrial touch, smart home field;

Product Composition

Ultra Clear Medium Aluminosilicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Composition items SiO₂ Al₂O₃ Fe₂O₃ CaO MgO K₂O Na₂O
Range of set value 69.0-72.0 4.5-8.0 ＜0.01 6.0-8.0 3.5-5.0 0.1-1.0 13.0-14.5

Chemical Tempering Process Parameter Setting Reference

Technological Parameter 400°C 410°C 420°C 430°C
CS(MPa) DOL(um) CS(MPa) DOL(um) CS(MPa) DOL(um) CS(MPa) DOL(um)
3H ≥650 ≥7.0 ≥650 ≥8.0 ≥650 ≥9.0 ≥650 ≥10.5
4H ≥600 ≥8.0 ≥600 ≥9.0 ≥600 ≥11.0 ≥600 ≥12.5
5H ≥600 ≥9.0 ≥600 ≥10.0 ≥600 ≥11.5 ≥600

≥13.0

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Dimensions

NO. Item Specification Detection Method
1 Dimensional Tolerance 1300*1100*(±2mm) Tape Measure
2 Thickness

0.50~1.1 ±0.05m

1.3~2.0 ±0.05m

 Micrometer
3 Thickness Difference ≤0.04mm Micrometer
4 The Diagonal Difference
(Perpendicularity)		 ≤0.3%

Tape Measure

0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
5 Stripe ≤Level2 Point Sources of Light
6

Flatness

(Before Tempering)

0.50~0.55 ≤0.15%(=h/L)

0.70~2.0 ≤0.10%(=h/L)

 0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed

Appearance descriptions

NO. Item Specification Detection Method
1 Effective Mass Area All areas outside 10mm of the edge are effective mass areas. 0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
2 Appearance Defects Scratches

w≤0.03mm, Allowed

0.03mm＜w≤0.05mm,L≤25mm (Controlled by point defects)

w＞0.05mm, Not allowed

0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed

Fluorescent Lamp 2000-2500Lux

0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
Bubbles

d≤0.05mm, Not counted

0.05mm＜d≤0.2mm, Numbers≤5 /m²

d＞0.2mm,Not allowed
Inclusions such as stones and sticky tin

d≤0.05mm, Not counted

0.05mm＜d≤0.2mm, Numbers≤5 /m²

d＞0.2mm,Not allowed
3 Edge Defects Chipping

Single chipping

L≤2.0mm,W≤1.0mm,D≤1/2 of the thickness (as the right picture showed).

The cumulative length of chipping is less than 10% of the edge length of the glass plate.

 0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed
4 Cracks and missing corners Not allowed
5 Surface stains (glass shavings, attachments, point contamination) No stains that cannot be removed by ordinary detergents are allowed.

d≤0.05mm, Not counted

0.05mm＜d≤0.3mm, Numbers≤5 /m²

d＞0.3mm,Not allowed

 The same method as appearance detection.

Packing Quantity

S/N L*W*T(mm) Packing Quantity (Pieces/Box)
1 1300x1100x0.25 900
2 1300x1100x0.33 1020
3 1300x1100x0.40 900
4 1300x1100x0.50 750
5 1300x1100x0.55 680
6 1300x1100x0.70 550
7 1300x1100x0.82 490
8 1300x1100x0.95 420
9 1300x1100x1.0 410
10 1300x1100x1.1 370
11 1300x1100x1.3 310
12 1300x1100x1.5 280
13 1300x1100x1.6 250
14 1300x1100x1.8 230
15 1300x1100x2.0 200

Packaging Diagram

0.7mm 1.1mm1.5mm 2mm Aluminosilicate glass sheet for Electronic Touch Screen Glass cover black printed

Storage
Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
