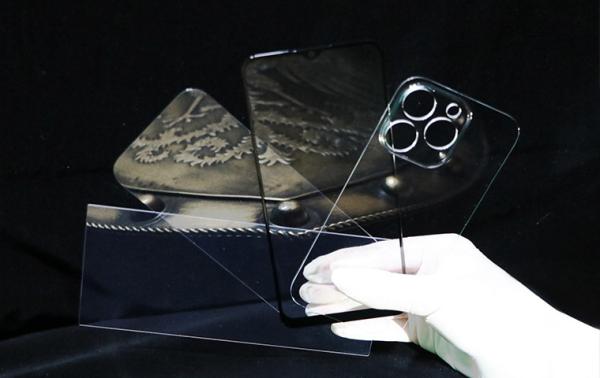

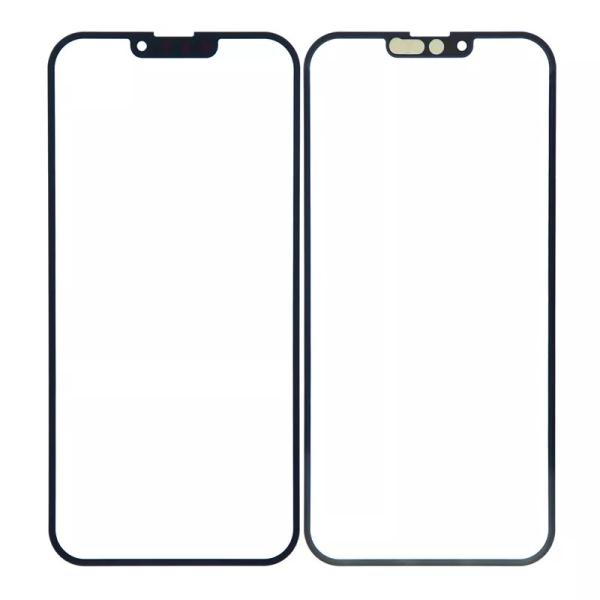

High Alumino Silicate Glass Panel for Cellphone Tablet for Front Touch Screen

High Alumino-Silicate Glass (CHIYAN-H1) is an eco-friendly high aluminosilicate ultra-thin glass, which increases the Al₂O₃ content in the composition to improve the ion exchange efficiency, so that it has excellent mechanical properties after chemical strengthening.

Features:

High Impact Resistance

High Scratch Resistance

High Transmittance

High chemical resistance

High Flexibility

High Bending Strength Resistance

Ultra Clear White

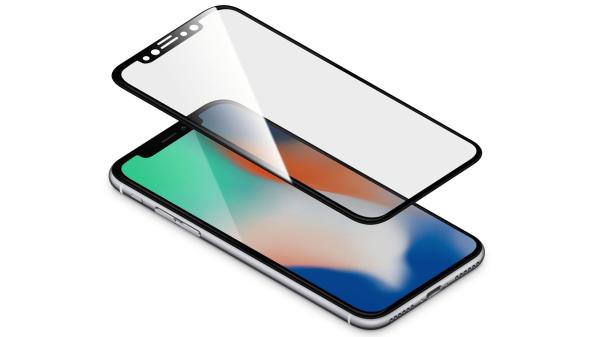

Application: Widely used in high-end consumer electronics device cover, vehicle display, industrial touch panels, smart home screen display etc fields;

Regular Thickness:

0.3mm~6mm

CHIYAN-H1’s 0.3~6.0mm thickness high alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

Standard Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.

Product Composition

High Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Physical Property Parameter

Chemical Tempering Process Parameter

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Packaging Diagram

Storage
Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.

High Alumino-Silicate Glass(CHIYAN-H1) is adopted Float Glass Process.

Float glass is made by heating raw materials—silica sand, limestone, soda ash, and magnesium in a furnace. When melted, it’s then spread out over a sizable bed of molten tin. As it moves along rollers in the annealing oven during a controlled cooling process, this mixture slowly solidifies over the molten tin. From this point, a single, continuous smooth ribbon of glass emerges as below picture showed:
