Specifications
Brand Name :
CHIYAN
Model Number :
CHIYAN-M2
Certification :
ISO14001/ISO9001/ RHOS/ REACH/ CP65/ Holagon Free
Place of Origin :
CHINA
MOQ :
10000 square meters
Price :
Negotiable
Payment Terms :
,T/T,Western Union
Supply Ability :
Annual output 20 million square meters
Delivery Time :
10~15 working days
Packaging Details :
Wooden Box/ Pallet
Name :
1.1mm 1.5mm 2mm High-Strength Aluminosilicate Optical Glass Raw Material
Color :
Ultra Clear
Pencil Hardness :
>9H
Optional Thickness :
0.25mm~2mm
Regular Size :
1300*1100mm
CS :
600~750Mpa
4PB :
9-12um
DOL :
≥500Mpa
Description

1.1mm 1.5mm 2mm High-Strength Aluminosilicate Optical Glass Raw Material



Product description for ultra-thin ultra-clear aluminosilicate glass:

  • Engineered for premium Precision Electronics, offering scratch resistance and 91.5% light transmittance.
  • Specially formulated with mid-alumina composition (4.5-8% Al₂O₃) for enhanced chemical durability. Ideal for harsh environments from smartphone cover glass to laboratory equipment."
  • Advanced low-iron manufacturing process achieves Fe2O3<0.01 color distortion for premium retail displays and museum-grade protective glazing. Available in 0.2-2.0mm configurations."
  • Combining 600MPa surface compression strength with 0.4mm slimness. The ultimate solution for curved automotive displays and wearable tech requiring durability and optical purity.

Key Features:

  • Thickness flexibility :
  • 0.33mm/ 0.4mm/ 0.55mm for Protective glass
  • 0.55mm/0.7mm/1.1mm for Phone/ Tablet Cover Glass
  • 1.3mm/ 1.5mm for Car Mounted Display
  • 1.0mm/ 1.1mm for microscope
  • 2mm for optics or watch glasss
  • Core applications: Electronic/ Optics/ Medical /Lab/ OLED...
  • Technical specs (light transmittance, surface quality)
  • - Material properties (low-iron, strengthened)
  • - Industry keywords (UTG, substrate, OLED)
  • - Metric precision for technical buyers



Standard Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.



Product Composition

Ultra Clear Medium Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Composition items

SiO₂

Al₂O₃

Fe₂O₃

CaO

MgO

K₂O

Na₂O

Range of set value

69.0-72.0

4.5-8.0

＜0.01

6.0-8.0

3.5-5.0

0.1-1.0

13.0-14.5





Physical Property Parameter

S/N

Items

Unit

Test Standard

CY-M2

1

Density

g/cm3

GB/T5432-2008

2.48±0.01

2

Refractive Index

/

GB/T 2680-2021

1.51±0.01

3

Young's Modulus

Gpa

GB/T 37780-2019

73.0±0.5

4

Transmittance

%

GB/T 2680-2021

≥91.5

5

Volume Resistivity

lg(Ω .cm)

GB/T 31838.2-2019

≥10.0

6

Dielectric Constant

/

SJ/T 11043-1996

≥7.0

7

Softening Point

℃

GB/T 28195-2011

750±10

8

Strain Point

℃

GB/T 28196-2011

516±5

9

Annealing Point

℃

GB/T 28196-2011

562±5

10

Thermal Conductivity

W/( m.K)

JC/T 675-1997

0.682±0.10

11

Thermal Expansivity

* 10-7/℃

SJ/T 11036-1996

85±5

12

Photoelastic Coefficient

nm/cm/MPa

BS 7604-1-1992

27.0±0.2

13

Poisson's Coefficient

/

GB/T 28195-2011

0.23±0.02

14

Vickers-hardness

HV

GB/T 16534-2009

610±10



Chemical Tempering Process Parameter Setting Reference


Technological Parameter

400°C

410°C

420°C

430°C

CS(MPa)

DOL(um)

CS(MPa)

DOL(um)

CS(MPa)

DOL(um)

CS(MPa)

DOL(um)

3H

≥650

≥7.0

≥650

≥8.0

≥650

≥9.0

≥650

≥10.5

4H

≥600

≥8.0

≥600

≥9.0

≥600

≥11.0

≥600

≥12.5

5H

≥600

≥9.0

≥600

≥10.0

≥600

≥11.5

≥600

≥13.0



Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.




Dimensions

NO.

Item

Specification

Detection Method

1

Dimensional Tolerance

1300*1100*(±2mm)

Tape Measure

2

Thickness

0.50~1.1 ±0.05m

1.3~2.0 ±0.05m

Micrometer

3

Thickness Difference

≤0.04mm

Micrometer

4

The Diagonal Difference
(Perpendicularity)

≤0.3%

Tape Measure

High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm

5

Stripe

≤Level2

Point Sources of Light

6

Flatness

(Before Tempering)

0.50~0.55 ≤0.15%(=h/L)

0.70~2.0 ≤0.10%(=h/L)

High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm




Appearance Specifications

NO.

Item

Specification

Detection Method

1

Effective Mass Area

All areas outside 10mm of the edge are effective mass areas.

High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm

2

Appearance Defects

Scratches

w≤0.03mm, Allowed

0.03mm＜w≤0.05mm,L≤25mm (Controlled by point defects)

w＞0.05mm, Not allowed

High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm

Fluorescent Lamp 2000-2500Lux

High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm

Bubbles

d≤0.05mm, Not counted

0.05mm＜d≤0.2mm, Numbers≤5 /m²

d＞0.2mm,Not allowed

Inclusions such as stones and sticky tin

d≤0.05mm, Not counted

0.05mm＜d≤0.2mm, Numbers≤5 /m²

d＞0.2mm,Not allowed

3

Edge Defects

Chipping

Single chipping

L≤2.0mm,W≤1.0mm,D≤1/2 of the thickness (as the right picture showed).

The cumulative length of chipping is less than 10% of the edge length of the glass plate.

High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm

4

Cracks and missing corners

Not allowed

5

Surface stains (glass shavings, attachments, point contamination)

No stains that cannot be removed by ordinary detergents are allowed.

d≤0.05mm, Not counted

0.05mm＜d≤0.3mm, Numbers≤5 /m²

d＞0.3mm,Not allowed

The same method as appearance detection.

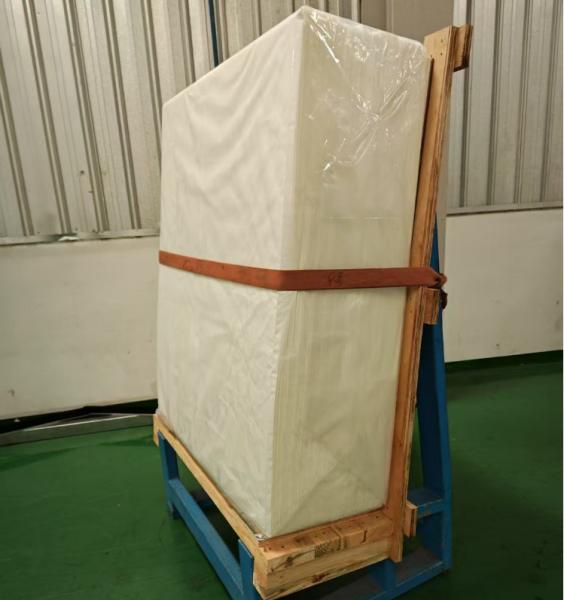

Packaging Diagram


High Strength Aluminosilicate Optical Glass Raw Material In Ultra Clear 1.1mm 1.5mm 2mm For Regular Size 1300*1100mm

Packing Quantity

S/N

L*W*T(mm)

Packing Quantity (Pieces/Box)

1

1300x1100x0.25

900

2

1300x1100x0.33

1020

3

1300x1100x0.40

900

4

1300x1100x0.50

750

5

1300x1100x0.55

680

6

1300x1100x0.70

550

7

1300x1100x0.82

490

8

1300x1100x0.95

420

9

1300x1100x1.0

410

10

1300x1100x1.1

370

11

1300x1100x1.3

310

12

1300x1100x1.5

280

13

1300x1100x1.6

250

14

1300x1100x1.8

230

15

1300x1100x2.0

200




Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
