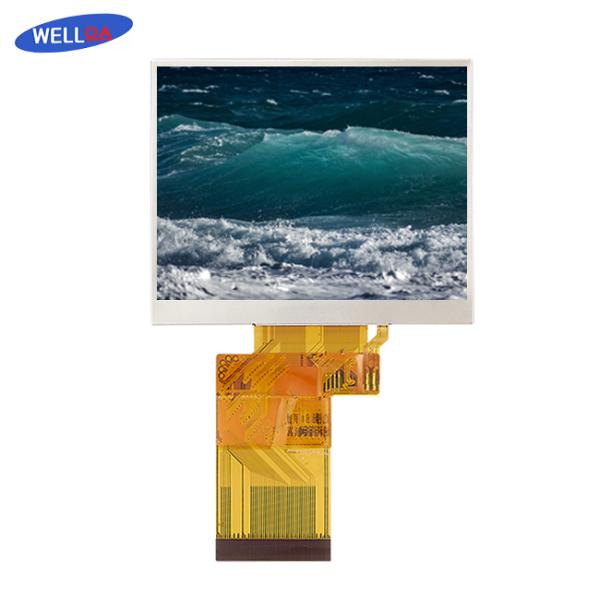

320x240 HD LCD Display 3.5 Inch Tft Lcd 350 Nits Brightness RGB Interface
320x240 HD LCD Display 3.5 Inch Tft Lcd 350 Nits Brightness RGB Interface
Specifications
Brand Name :
WellDa(OEM)
Model Number :
H035TQ54E3501
Certification :
ROHS、ISO9001、CE
Place of Origin :
ShenZhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Name :
3.5inch HD LCD Display
Size :
3.5inch
Resolution :
320(horizontal)*240(Vertical)
Glass Maker :
Tianma
lnterface :
24bit-RGB
Connect type :
Connector
Display Colors :
16.7M
Technology type :
a-Si
Pixel pitch (mm) :
0.219(RGB)(W) x 0.219 (H)
Pixel Configuration :
R.G.B.Stripe
Display Mode :
Normally White
Driver lC :
NV3035
Luminance :
350 nits
Viewing Direction :
12 O'clock
Gray Scale Inversion Direction :
6 O'clock
LCM (W x Hx D) (mm) :
76.90*64.0*3.1
Active Area(mm) :
70.08 x 52.56
With Without TSP :
Without
Weight (g) :
28g
LED Numbers :
6LEDs (6s)
Description

3.5 Inch HD LCD Display 320x240 Resolution 350 Nits Brightness RGB Interface

HD LCD Display Description:

Enhance your viewing experience with our premium 3.5-inch HD LCD display, boasting a crystal-clear 320x240 resolution, a vibrant 16.7 million display colors, and an impressive brightness of 350 nits. Our high-quality Tianma glass screen offers superior durability and reliability, while the 24-bit RGB interface guarantees seamless connectivity. Enjoy crisp images with a pixel pitch of 0.219mm, and a lightweight, compact design that fits seamlessly into any project. Don't settle for less - choose our market-leading, SEO-optimized LCD display for the ultimate viewing experience.

HD LCD Display Applications:

1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.


HD LCD Display Parameters:

Name: 3.5inch HD LCD Display Size: 3.5inch
Resolution: 320(horizontal)*240(Vertical) Glass Maker: Tianma
Interface: 24bit-RGB Connect Type: Connector
Display Colors: 16.7M Technology Type: A-Si
Pixel Pitch (mm): 0.219(RGB)(W) X 0.219 (H) Pixel Configuration: R.G.B.Stripe
Display Mode: Normally White Driver LC: NV3035
Luminance: 350 Nits Viewing Direction: 12 O'clock
Gray Scale Inversion Direction: 6 O'clock LCM (W X Hx D) (mm): 76.90*64.0*3.1
Active Area(mm): 70.08 X 52.56 With or Without TSP: Without
Weight (g): 28g LED Numbers: 6LEDs (6s)
