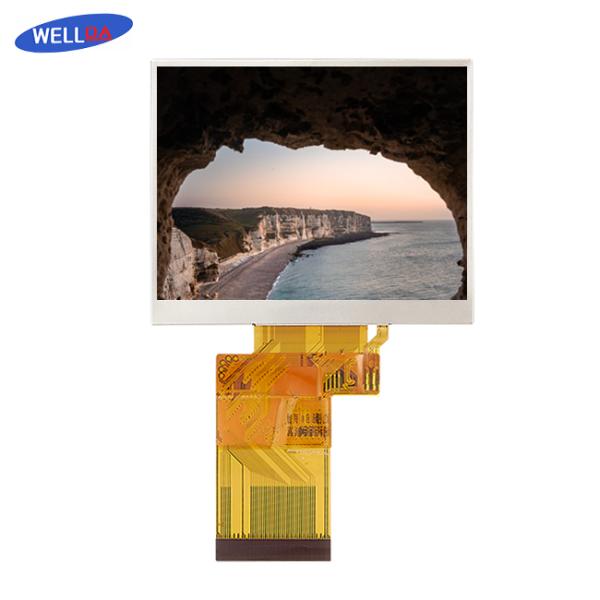

24bit RGB HD Tft Display 3.5 Inch Superior Image Quality A-Si Technology
24bit RGB HD Tft Display 3.5 Inch Superior Image Quality A-Si Technology
Specifications
Brand Name :
WellDa(OEM)
Model Number :
H035TQ54E3501
Certification :
ROHS、ISO9001、CE
Place of Origin :
ShenZhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Name :
3.5inch HD LCD Display
Size :
3.5inch
Resolution :
320(horizontal)*240(Vertical)
Glass Maker :
Tianma
lnterface :
24bit-RGB
Connect type :
Connector
Display Colors :
16.7M
Technology type :
a-Si
Pixel pitch (mm) :
0.219(RGB)(W) x 0.219 (H)
Pixel Configuration :
R.G.B.Stripe
Display Mode :
Normally White
Driver lC :
NV3035
Luminance :
350 nits
Viewing Direction :
12 O'clock
Gray Scale Inversion Direction :
6 O'clock
LCM (W x Hx D) (mm) :
76.90*64.0*3.1
Active Area(mm) :
70.08 x 52.56
With Without TSP :
Without
Weight (g) :
28g
LED Numbers :
6LEDs (6s)
Description

3.5inch HD LCD Display Superior Image Quality A-Si Technology

HD LCD Display Description:

Elevate your viewing experience with our premium 3.5-inch HD LCD Display. Boasting a high-resolution of 320x240, this screen delivers crisp, clear visuals for all your projects. Made with top-quality glass from Tianma, you can rely on exceptional durability and performance. The 24-bit RGB interface produces a stunning display of 16.7 million colors, ensuring true-to-life images in every use. Our cutting-edge A-Si technology results in a slim, lightweight design, weighing in at just 28g with compact dimensions of 76.9x64.0x3.1mm.

The 0.219mm RGB pixel pitch contributes to optimal precision, while the R.G.B. stripe pixel configuration guarantees energy efficiency. Experience optimal clarity with a 350 nits luminance and a 12 O'clock viewing direction, making it perfect for use in various lighting conditions. The NV3035 driver LC supports smooth operation, guaranteeing years of reliable performance.

With a commitment to versatility, this LCD display comes without TSP, offering a cost-effective solution for those who do not require touch functionality. Save even more energy with the 6 LED lights (6s), designed to minimize power consumption. Upgrade your displays with our high-quality, user-friendly 3.5-inch HD LCD Display today!

HD LCD Display Applications:

1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.


HD LCD Display Parameters:

Name: 3.5inch HD LCD Display Size: 3.5inch
Resolution: 320(horizontal)*240(Vertical) Glass Maker: Tianma
Interface: 24bit-RGB Connect Type: Connector
Display Colors: 16.7M Technology Type: A-Si
Pixel Pitch (mm): 0.219(RGB)(W) X 0.219 (H) Pixel Configuration: R.G.B.Stripe
Display Mode: Normally White Driver LC: NV3035
Luminance: 350 Nits Viewing Direction: 12 O'clock
Gray Scale Inversion Direction: 6 O'clock LCM (W X Hx D) (mm): 76.90*64.0*3.1
Active Area(mm): 70.08 X 52.56 With or Without TSP: Without
Weight (g): 28g LED Numbers: 6LEDs (6s)

24bit RGB HD Tft Display 3.5 Inch Superior Image Quality A-Si Technology
