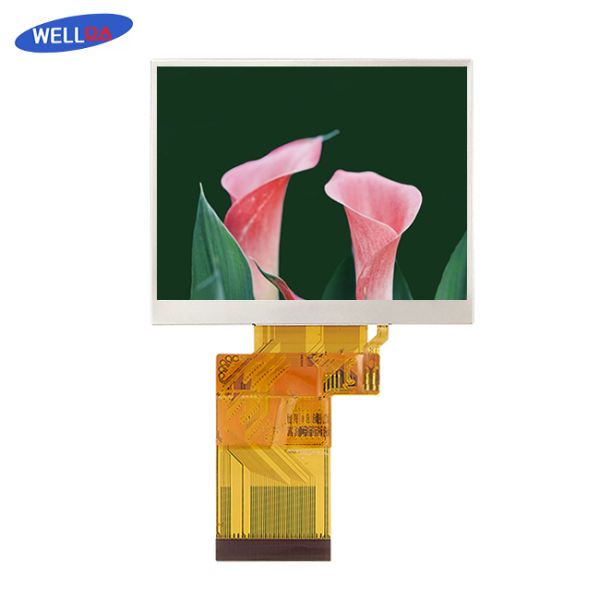

3.5inch HD LCD Display Compact High Resolution And Energy Efficient
3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Specifications
Brand Name :
WellDa(OEM)
Model Number :
H035TQ54E3501
Certification :
ROHS、ISO9001、CE
Place of Origin :
ShenZhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Name :
3.5inch HD LCD Display
Size :
3.5inch
Resolution :
320(horizontal)*240(Vertical)
Glass Maker :
Tianma
lnterface :
24bit-RGB
Connect type :
Connector
Display Colors :
16.7M
Technology type :
a-Si
Pixel pitch (mm) :
0.219(RGB)(W) x 0.219 (H)
Pixel Configuration :
R.G.B.Stripe
Display Mode :
Normally White
Driver lC :
NV3035
Luminance :
350 nits
Viewing Direction :
12 O'clock
Gray Scale Inversion Direction :
6 O'clock
LCM (W x Hx D) (mm) :
76.90*64.0*3.1
Active Area(mm) :
70.08 x 52.56
With Without TSP :
Without
Weight (g) :
28g
LED Numbers :
6LEDs (6s)
Description

Premium 3.5inch HD LCD Display Compact High Resolution And Energy Efficient

HD LCD Display Description:

Our feature-rich 3.5inch HD LCD Display that elevates your viewing experience with its remarkable 320x240 resolution and 16.7 million colors. Manufactured using durable Tianma glass, this display promises enduring performance. Our user-friendly 24-bit RGB interface and connector connection type ensure seamless integration into various devices. The A-Si technology allows for a sleek and lightweight design, weighing just 28g and measuring 76.9x64.0x3.1mm. The 350 nits luminance and 12 O'clock viewing direction ensure perfect clarity even in well-lit surroundings. Our robust NV3035 driver LC ensures smooth, dependable operation. The screen comes without a touch screen panel, offering an affordable, streamlined option for users who don't need touch functionality. The energy-efficient design features RGB stripe pixel configuration and six LEDs, minimizing power consumption. Elevate your projects with our top-notch, cost-effective 3.5inch HD LCD Display today!

HD LCD Display Applications:

1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.


HD LCD Display Parameters:

Name: 3.5inch HD LCD Display Size: 3.5inch
Resolution: 320(horizontal)*240(Vertical) Glass Maker: Tianma
Interface: 24bit-RGB Connect Type: Connector
Display Colors: 16.7M Technology Type: A-Si
Pixel Pitch (mm): 0.219(RGB)(W) X 0.219 (H) Pixel Configuration: R.G.B.Stripe
Display Mode: Normally White Driver LC: NV3035
Luminance: 350 Nits Viewing Direction: 12 O'clock
Gray Scale Inversion Direction: 6 O'clock LCM (W X Hx D) (mm): 76.90*64.0*3.1
Active Area(mm): 70.08 X 52.56 With or Without TSP: Without
Weight (g): 28g LED Numbers: 6LEDs (6s)

3.5inch HD LCD Display Compact High Resolution And Energy Efficient
