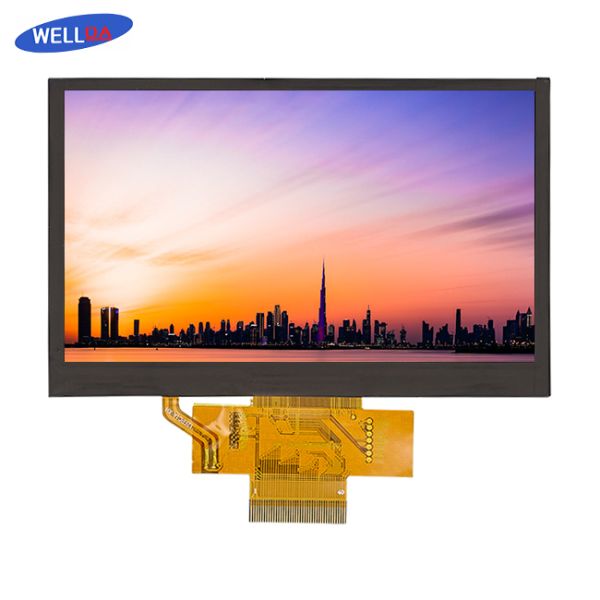

A Si Technology HD LCD Display Compact And High Clarity 12 LEDs
A Si Technology HD LCD Display Compact And High Clarity 12 LEDs
Specifications
Brand Name :
WellDa(OEM)
Model Number :
H043HWQ40I7079
Certification :
ROHS、ISO9001、CE
Place of Origin :
ShenZhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Name :
4.3 inch
Size :
3.5inch
Resolution :
480(RGB)×272
Interface :
24bit-RGB
Connect type :
Connector
Display Colors :
16.7M
Technology type :
a-Si
Display Spec. :
0.198 x 0.198
Display Mode :
Normally Black
Driver lC :
sc7283
Surface Treatment :
HC
Viewing Direction :
ALL
Gray Scale Inversion Direction :
free
LCM (W x Hx D) (mm) :
105.40*67.15*2.90
Active Area(mm) :
95.04 x 53.86
With Without TSP :
Without TSP
Weight (g) :
TBD
LED Numbers :
12LEDs
Description

4.3 Inch HD LCD Display With 24bit RGB Interface Compact And High Clarity

HD LCD Display Description:

Step into the world of high-definition with our 4.3 Inch HD LCD Display. Equipped with a 480(RGB)×272 resolution, this display promises detailed visuals and a rich color palette of 16.7M, bringing your images and videos to life.

This HD LCD Display is powered by a 24bit-RGB interface, guaranteeing a seamless and immersive visual experience. Incorporating A-Si technology, this display ensures top-notch performance and a longer lifespan. With a Normally Black display mode and Free Gray Scale Inversion Direction, it enhances the contrast and color consistency for an optimal viewing experience.

Despite its compact size with LCM dimensions of 105.4067.152.90mm, our 4.3 Inch HD LCD Display offers a substantial active area of 95.04 X 53.86mm, making it a versatile choice for various applications. The Connect Type is Connector, allowing for easy integration into your devices.

Our display, powered by SC7283 Driver LC and featuring a Hard-coated (HC) surface, delivers superior performance while withstanding daily wear and tear. It offers an ALL viewing direction for a comfortable viewing experience from any angle. Note, this LCD Display comes without a TSP and includes 12 LEDs. The weight details will be provided later (TBD).

Experience an exceptional visual journey with our 4.3 Inch HD LCD Display, a perfect combination of durability and superior visual performance!

HD LCD Display Applications:

1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.


HD LCD Display Parameters:

Name:

4.3 Inch HD LCD Display

Size:

3.5inch

Resolution:

480(RGB)×272

Interface:

24bit-RGB

Connect Type:

Connector

Display Colors:

16.7M

Technology Type:

A-Si

Display Spec.:

0.198 X 0.198

Display Mode:

Normally Black

Driver LC:

Sc7283

Surface Treatment:

HC

Viewing Direction:

ALL

Gray Scale Inversion Direction:

Free

LCM (W X Hx D) (mm):

105.40*67.15*2.90

Active Area(mm):

95.04 X 53.86

With or Without TSP:

Without TSP

Weight (g):

TBD

LED Numbers:

12LEDs
