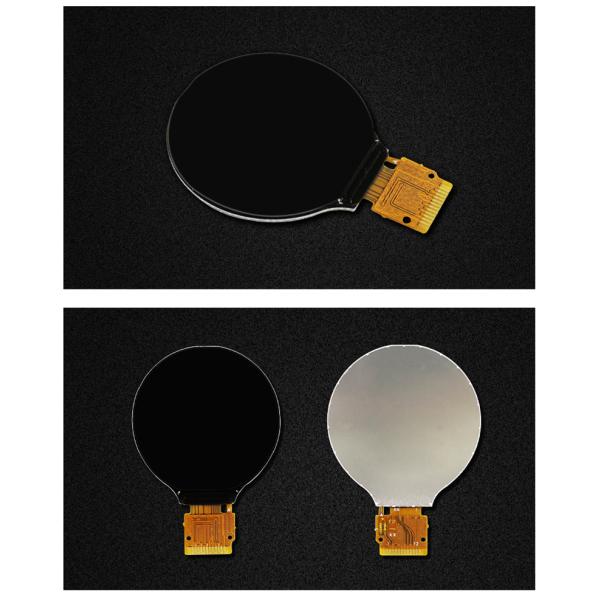

1.28 Inch SPI Display Module TFT LCD Display Module GC9A01 Round Display 240x240
1.28 Inch SPI Display Module TFT LCD Display Module GC9A01 Round Display 240x240
Specifications
Model Number :
JC2424S012N
Place of Origin :
China
MOQ :
300
Price :
￥42/PCS
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs/day
Delivery Time :
28day
Size :
1.28inch
Resolution :
240*240
Touch :
Without touch
Name :
JC2424S012N
External dimension :
50.0(L)X36.0(W)X3.1(H)MM
Driver IC :
GC9A01
Description

1.28 inch TFT LCD Display Module 1.28”Round Full IPS 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 Resolution

Provide 51 MCU, stm32 MCU, copy the download link to the browser to download the information:

Product Description

The GC9A01 controller supports a maximum resolution of 132*162 and a 48114-byte GRAM. It also supports 8-bit, 9-bit, 16-bit, and 18-bit parallel port data buses. It also supports 3-wire and 4-wire SPI serial ports. Since parallel control requires a large number of IO ports, the most common one is SPI serial port control. The GC9A01 also supports 65K, 262K RGB color display, display color is very rich, while supporting rotating display and scroll display and video playback, display in a variety of ways.

● 1.28-inch color screen,support 65K color display,display rich colors ·

● 240X240 resolution, clear display·

● IPS glass, full view display ·

● Round display screen, good display effect ·

● Using the SPI serial bus, it only takes a few IOs to illuminate the display·

● Easy to expand the experiment with SD card slot·

● Military-grade process standards, long-term stable work ·

● Provide underlying driver technical support·

Product Parameters

Name Parameter
SKU JC2424S012N
Display Color RGB 65K color
Touch mode Without touch
Screen Size 1.28(inch)
Type TFT
Driver IC GC9A01
Resolution 240*240 (Pixel)
Module Interface 4-wire SPI
Active Area 32.4(L)X32.4(W)MM
External dimension 50.0(L)X36.0(W)X3.1(H)MM
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Operating Voltage 3.3V
Visual angle IPS Full view
Product Weight(Package containing) 13(g)

Interface Definition

Number Pin Label Pin Description
1 VCC 5.0 power input
2 GND Power ground
3 CS LCD chip select signal, active low
4 REST LCD reset signal, low level reset
5 A0 Control register selection
6 SDA Control data transmission
7 CLK Clock signal
8 LED Connected to 3.3V
