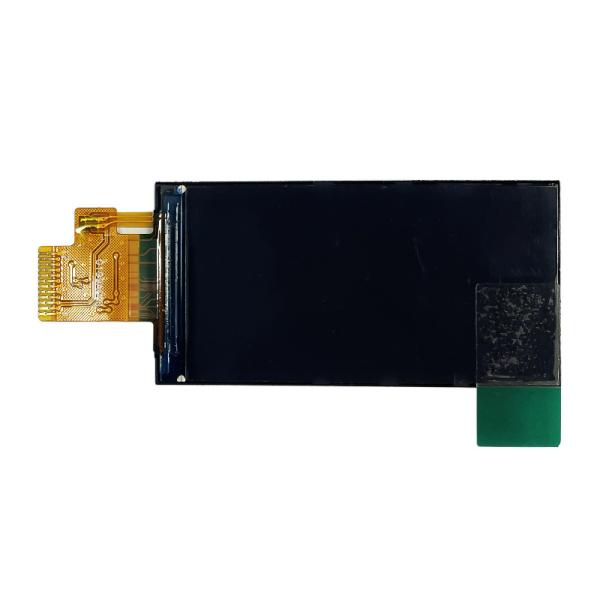

1.9 Inch Lcd Tft Spi 170*320 ST7789 SPI TFT Module 1.9 Inch Smart Display Screen
1.9 Inch Lcd Tft Spi 170*320 ST7789 SPI TFT Module 1.9 Inch Smart Display Screen
Specifications
Model Number :
JC1732A019N
Place of Origin :
China
MOQ :
500
Price :
￥18/pcs
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs/day
Delivery Time :
28day
Size :
1.9 inch
Resolution :
170*320
Touch :
Without touch
name :
JC1732A019N
External dimension :
49.72(L)X25.8(W)X1.47(H)MM
Active Area :
42.72(L)X22.7(W)MM
Description

1.9 inch Without Touch 1.9" 170*320 ST7789 Smart Display Screen 1.9 inch SPI LCD TFT Module

Product Description

  • 1.9 inch 1.9”CTC LCD ST7789 TFT LCD Display Screen.
  • DC 3.3V 1.9 inch IPS TFT LCD Display Module ST7789 Driver 4 Wire SPI Interface 170x320.
  • Industrial quality.
  • Long-term stable supply.
  • With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
  • Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.

Product Parameters

Name Parameter
SKU JC1732A019N
Display Color RGB 65K color
Touch mode Without touch
Screen Size 1.9(inch)
Type TFT
Driver IC ST7789
Resolution 170*320 (Pixel)
Module Interface 4-wire SPI
Active Area 42.72(L)X22.7(W)MM
External dimension 49.72(L)X25.8(W)X1.47(H)MM
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Operating Voltage 3.3V
Visual angle IPS
Product Weight(Package containing) 10(g)

Interface Definition

Number Pin Label Pin Description
1 GND Power ground
2 LEDK Backlight LED negative extreme
3 LEDA Backlight LED positive extreme
4 VCC 2.8~3.3V power input
5 GND Power ground
6 GND Power ground
7 D/C Instruction Data Selection L: Instruction H: Data
8 CS LCD chip select signal, active low
9 SCL Clock signal
10 SDA Control data transmission
11 RESET LCD reset signal, low level reset
12 GND Power ground
