Specifications
Brand Name :
RGH
Model Number :
RT20QV227A
Place of Origin :
Shenzhen,China
MOQ :
3PCS
Price :
Negotiable
Certification :
ISO9001/ISO14001
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
3.5kk
Delivery Time :
3-5weeks
Packaging Details :
Standard Exportation Package
Screen Size :
2.0 inches
Resolution :
240*320
Viewing direction :
full viewing angle
Backlight Type :
LED
Display Type :
Thin Film Transistor Liquid Crystal Display
Interface :
MCU 8bit
Description

OEM MCU 8bit 2

OEM MCU 8bit 2

Item Specification

Size:

 2.0inch

Display mode

Transmissive TFT

Part NO.

RT20QV227A

Resolution

 240*320

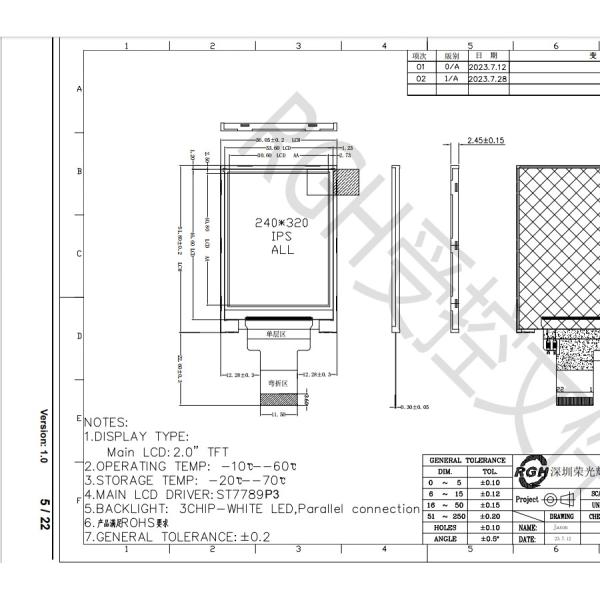

Outline size

 36.05(H)*51.80(V)*2.45(T)

Active area

 30.6(W)*40.8(H)

View direction

 ALL

Piexl pitch

 240(RGB)*320

Interface

 MCU 8bit

Backlight

 3LEDS

Surface luminance

 500cd/m2

Logic voltage

 2.5V-3.3V

Operating temperature

 -10℃~60℃

Storage temperature

 -20℃~70℃

OEM MCU 8bit 2

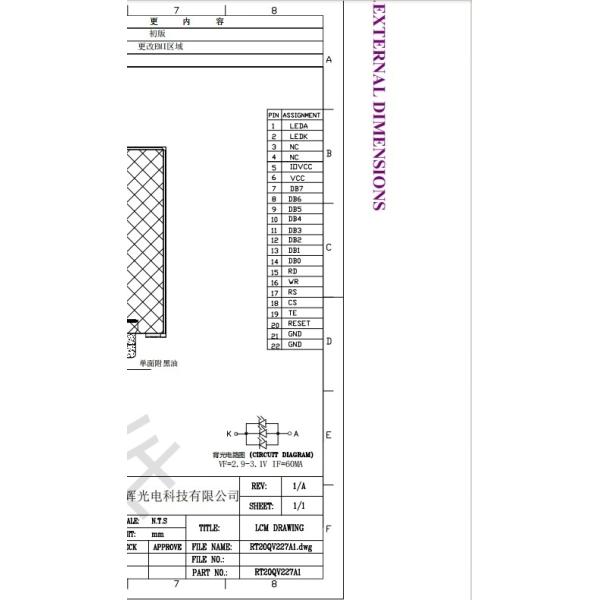

NO. Symbol Level Function
1 LEDA LED,anode.
2 LEDK LED,cathode.
3-4 NC NC
5 IOvCC 1.8V/2.8V Power supply
6 VCC 2.8V(typ) Power supply
7-14 DB7-DB0 data bus
15 RD -Read enable in 8080 MCU parallel interface
16 WR -Write enable in MCU parallel interface
17 RS -Display data/command selection pin inparallel interface
18 CS -Chip selection pin
19 TE -Tearing effect signal is used to synchronize MCU to frame memory
20 RESET -This signal will reset the device and it must be applied to properly
21-22 GND GND

OEM MCU 8bit 2 OEM MCU 8bit 2

OEM MCU 8bit 2

OEM MCU 8bit 2

OEM MCU 8bit 2

OEM MCU 8bit 2

OEM MCU 8bit 2

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

7. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?

A: We can consult with it.
