Specifications
Brand Name :
RGH
Model Number :
RT28VG009A
Place of Origin :
Shenzhen,China
MOQ :
3PICS
Price :
Negotiable
Certification :
ISO9001/ISO14001
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
3.5kk
Delivery Time :
3-5weeks
Packaging Details :
Standard Exportation Package
Screen Size :
2.8 inches
Resolution :
480*640
Interface :
MIPI
Touch Screen :
No
Backlight Type :
LED
Viewing Angle :
ALL O'CLOCK
Dimensions :
46.90(H)X66.55(MX2.35(T)
Brightness :
500 cd/m²
Description

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated

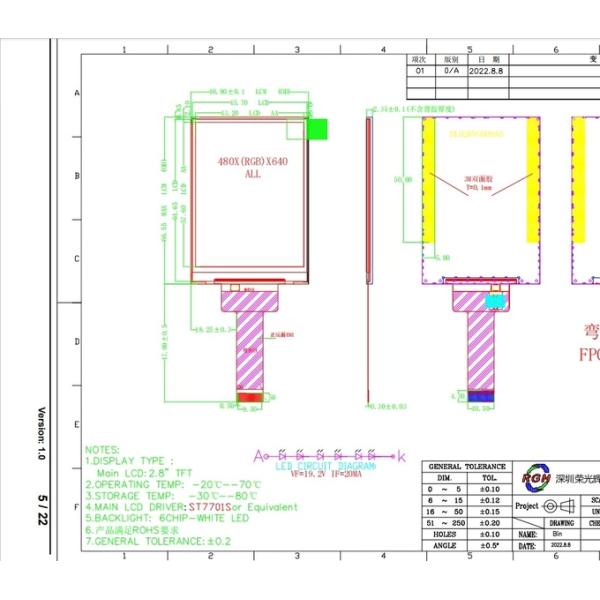

Item Specification

Size

 2.8inch

Display mode
Transmissive TFT

Part NO.
RT28VG009A

Resolution

 480*640

Outline size
46.90(H) X 66.55(W) X2.35 (T)

Active area
43.20(W) X57.60 (H)

View direction
ALL

Piexl pitch
480X(RGB)X640

Interface

 MIPI

Backlight

 6LEDS

Surface luminance

 500cd/m2

Logic voltage

 2.5V-3.3V

Operating temperature
-20℃~70℃

Storage temperature
-30℃~80℃

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated

1 NC NC
2 LEDK LED K
3 NC NC
4 LEDA LED A
5 NC NC
6 VCC Power setting
7 IOvCC Power setting
8 TE TE
9 RESET RESET PIN
10 GND Ground pin for analog circuits
11 D1P Mipi data signa
12 D1N Mipi data signa
13 GND Ground pin for analog circuits
14 CLKP Mipi clock signal
15 CLKN Mipi clock signal
16 GND Ground pin for analog circuits
17 D0P Mipi data signal
18 D0N Mipi data signal
19 GND Ground pin for analog circuits
20 GND Ground pin for analog circuits

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated 2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated



2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated

2.8 Inch IPS TFT LCD Display Panel 480x640 Screen ISO9001 Certificated
FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?
A: We can consult with it.
