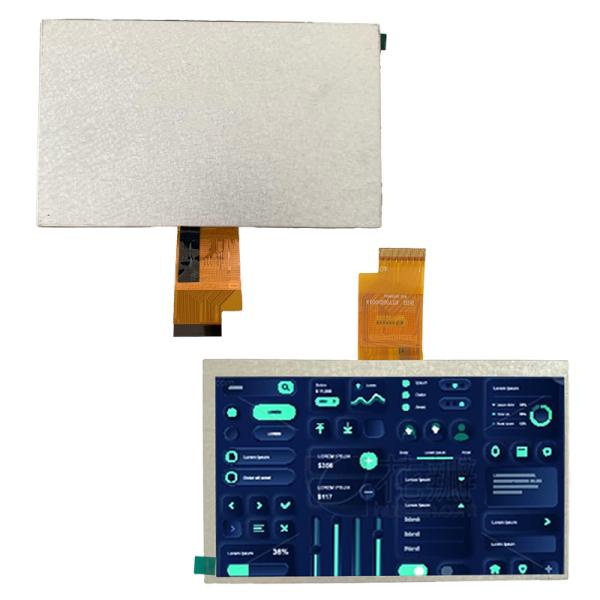

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600
Specifications
Brand Name :
RGH
Model Number :
RT70HD005A
Place of Origin :
Shenzhern,China
MOQ :
3PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
3.5kk
Delivery Time :
3-5weeks
Packaging Details :
Standard Exportation Package
Certification :
ISO9001/ISO14001
Screen Size :
7.0 inches
Resolution :
1024*600
Panel Type :
IPS
Interface :
LVDS
Brightness :
400 cd/m²
Viewing Angle :
ALL
Touchscreen :
No
Backlight Type :
LED
Description

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

NO. Symbol Level Function
1 VCOM Common Voltage
2 VDD Power setting
3 VDD Power setting
4 NC NC
5 RESET RESET.PIN
6 STBYB(3.3V
)		 Standby mode,usually pull high STBYB=1,normal operation
STBYB=0,timing controller,sourcedriverwill shut down,al
output high red shift
7 GND Ground
8 RXIN0- -LVDS differential data input
9 RXIN0+ +LVDS differential data input
10 GND Ground
11 RXIN1- -LVDS diffe rential datainput
12 RXIN1+ +LVDS differential data input
13 GND Ground
14 RXIN2- -LVDS diffe rential data input
15 RXIN2+ +LVDS differential data input
16 GND Ground
17 RXCLKIN- -LVDS differential CLOCK input
18 RXCLKIN+ -LVDS differential CLOCK input
19 GND Ground
20 RXIN3- -LVDS differential data input
21 RXIN3+ +LVDS differential datainput
22 GND Ground
23 NC NC
24 NC NC
25 GND Ground
26 NC NC
27 DIMO(3.3V) Backlit CABC controller signa output
28 SELB(1.8V) 6bit/8bit mode selection(Note 1)LVBIT=L",6 bits.LVBIT="H",
8 bits. (the default)
29 AVDD Power for Analog circuit
30 GND Ground
31 LEDK LED power cathode
32 LEDK LED power cathode
33 UR(1.8V) Horizontal reversalSHLR=L",leftshift SHLR="H",nghtshift:
34 U/D(1.8v) Vertical Tnversion-UPDNB="L",STVi outputs the vertical start
pulse and UD pin output "H"UPDNB="H",STV2 outputs the
vertical start pulse and up pin output
35 VGL GATE OFF Voltage
36-37 GND Ground
38 VGH Gate On Voltage
39-40 LEDA LED power anode

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

7 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x6007 Inch Horizontal TFT And IPS Display Module HD LCD Screen 1024x600

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

7. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?

A: We can consult with it.
