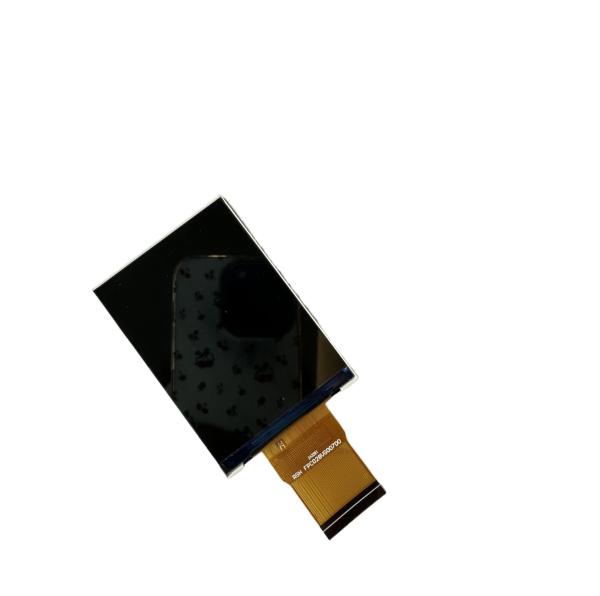

2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S
Specifications
Brand Name :
RGH
Model Number :
RT28VG015A
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
3PICS
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
3.5kk
Delivery Time :
3-5weeks
Packaging Details :
Standard Exportation Package
Size :
2.8 inch
Resolution :
480 X（RGB） X640
LCD Type :
Transmissive TFT
Viewing Direction :
ALL o’clock
LCM Outline Dimension :
46.90 (H) X66.55(V) X2.35(T) mm
Active area :
43.20(H) X57.60 (V) mm
Brightness :
500 cd/m2
Operation Temperature :
-20℃~70℃
Storage temperature :
-30℃~80℃
Number Of Pixel :
480 X（RGB） X640
Driving IC :
ST7701S
Response time :
35ms
Contrast ratio :
1000:1
Interface :
SPI
Description

2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S

V Symbol Level Function
RGB
1 LEDA LED A
2 LEDK LED K
3 VCC 2.8V Pomer setting
4-13 GND Ground pin for analog circuits
14 VS Frame synchronizing signal for RGB
15 HS Line synchronizing signal for RGB.
16 DCLK Dot clock signal for RGB.
17 DE DE
18-22 B0-B4 Data bus.
23-28 G0-G5 Data bus.
29-33 R0-R4 Data bus.
34 RESET RESET PIN
35 CS Chip selection.
36 SCL Serial interface clock.38 CS
37 SDA Serial in/out signal.
38 GND Ground pin for analog circuits
39 VCC 2.8V Power setting
40 GND Ground pin for analog circuits
MIPI
1 LEDA LED A
2 LEDK LEDK
3 VCC 2.8V Pomer setting
4 GND Ground pin for analog circuits
5 DN0 Mipi data signal
6 DP0 Mipi data signal
7 GND Ground pin for analog circuits
8 CKN Mipi clock signal
9 CKP Mipi clock signal
10 GND Ground pin for analog circuits
11 DN1 Mipi data signal
12 DP1 Mipi data signal
13-33 GND Ground pin for analog circuits
34 RESET RESEI PIN
35-37 GND Ground pin for analog circuits
38 VCC 2.8V Power setting
39 GND Ground pin for analog circuits
40 vCC 2.8V Pomer setting

2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S 2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S

2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S2.88 'Inch TFT LCD HD Display 480*640 Industrial Digital LCD Display with Driving IC ST7701S

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the CTP?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 20 inch TFT LCD display we can provide.

7. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?

A: We can consult with it.
