Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
Specifications
Brand Name :
MPI
Model Number :
V-101
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000/DAY
Delivery Time :
3 DAYS
Packaging Details :
EXPORT PACKAGE
Type :
Breathing Apparatus
Warranty :
18 months
Tidal volume :
0~2000ml
Color :
Grey
Product name :
medical ventilator
Function :
Emergency Care
Description

Ventilator is a model of multi-purpose life-support machine. This machine uses the air operated electric control, the microcomputer technology. Selects imports the primary device to guarantee the equipment movement stably reliable. Colored (TFT) the screen demonstrates each kind of examination and the establishment parameter, which is a section of ideal breath treatment plant. It is suitable in all different levels of hospitals for internal medicine of surgery, gynecology, pedology, first aid, ICU and so on which are administrative offices equipments.

Main technical parameters

Ventilator

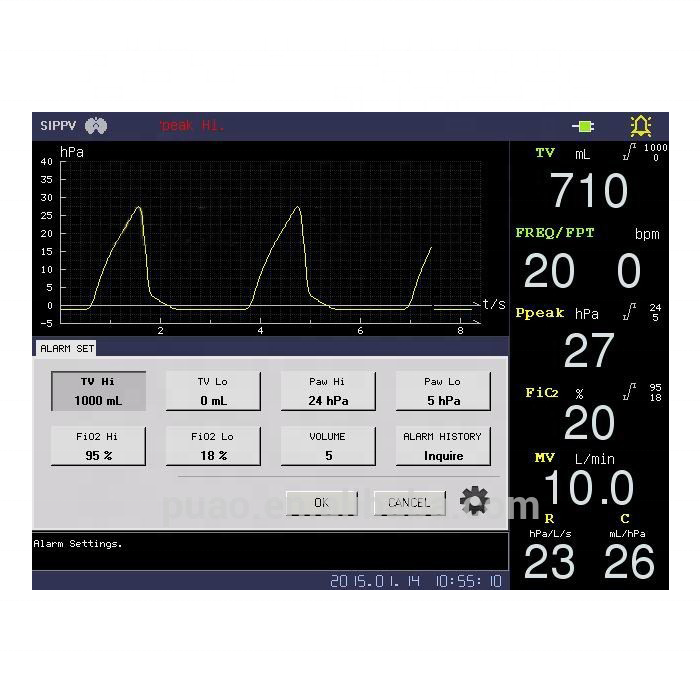

Display mode 10.4-inch High-definition TFT color LCD screen display
Ventilation mode VCV,PCV,SIMV,PSV,PSV+SIMV,CPAP
Ventilation function PEEP,SIGH ,standby ,IP,IRV
Ventilation parameters
Tidal volume 20~2000ml
Rate 2~120bpm
SIMV rate 2~20bpm
I:E 4:1~1:8
Inspiratory trigger pressure -10~20 cmH2O
Flow trigger sensitivity 1-20L/min
PEEP 0~25 cmH2O
Pressure control 3~60cmH2O
Presure limit 5~60 cmH2O
Pressure slope 1~10 gear
Flow rate setting 1~10 gear
Expiratory trigger sensitivity 10%~90%
Time control 1~10s
SIGH 1.5 times the inspiratory time(60-120 times adjustable)
Inspiratory platform 0~50%
Oxygen concentration 21%~99%

Parameters for ventilation monitoring

Oxygen Concentration alarm
Upper limit setting range 21%~99%
Low limit setting range 15%~80%
Airway pressure alarm
Upper limit setting range 1~60 cmH2O
Low limit setting range 0~50 cmH2O
Minute ventilation volume alarm
Upper limit setting range 1~30L/min
Low limit setting range 0~20L/min
Tidal volume
Upper limit setting range 10~2000ml
Low limit setting range 0~1800ml
Respiratory rate
Upper limit setting range 10~99bPm
Low limit setting range 0~50 bPm
Sustained high-pressure alarm

it will give alarm when stress have consistently

been higher than 30 cmH2O
Suffocation alarm
Gas shortage alarm
Low pressure of Oxygen alarm
Low pressure of Air alarm
Power alarm
Intubation off alarm
Battery voltage alarm
Power AC 220V±10% 50Hz±1Hz UPS, Storage Battery
Manipulator

Air compressor with “standby” function

Recovery ICU Pediatric Anaesthesia Portable Medical Ventilator Brething Machine
