KN95 3 Ply Medical Face Mask Machine , 18KW Non Woven Mask Making Machine
KN95 3 Ply Medical Face Mask Machine , 18KW Non Woven Mask Making Machine
KN95 3 Ply Medical Face Mask Machine , 18KW Non Woven Mask Making Machine
KN95 3 Ply Medical Face Mask Machine , 18KW Non Woven Mask Making Machine
Specifications
Brand Name :
guozhong
Model Number :
KN95 Mask Making Machine
Certification :
ce
Place of Origin :
china
MOQ :
Can discuss
Price :
Can discuss
Payment Terms :
L/C, T/T
Supply Ability :
1000set
Delivery Time :
Can discuss
Packaging Details :
Can discuss
material :
metal
size :
9.8*1.5*2.1 m
power :
18 KW
production efficiency :
UPM50-60
Company name :
guozhong
color :
white
Description

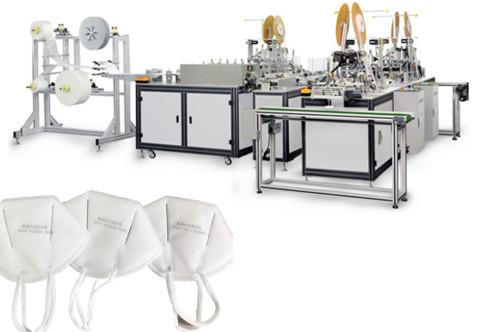

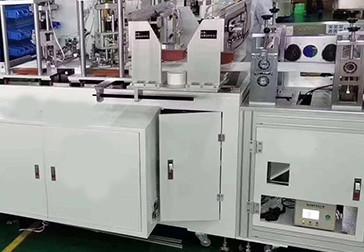

KN95 3ply medical face mask machine automatic non woven mask making machine

Details machine models
Fully automatic KN95 mask machine

composition

 mask Ontology machine*1
Ear band welding machine*1
equipment size 9.8*1.5*2.1m
Rated power 18KW
production efficiency UPM50-60
weight 2T

Electrical safety requirements:

1) the machine is equipped with cut-off valves of power supply and air source to ensure no danger during maintenance.

2) the control system is placed in the position where the operator is convenient to operate and observe.

3) the electrical control system of the equipment has overload protection and short circuit protection functions.

4) measures to prevent wire wear are provided around the outlet of distribution cabinet.

Equipment technical parameters and configuration requirements

(1) production specifications: according to the drawing size of party a's products

(2) UPH: more than 40;

(3) qualified rate of equipment production: 98%;

(4) equipment failure rate: 2%;

(5) number of operators: 1 person;

(6) electric control: PLC;

(7) driving mode: servo motor;

(8) control panel: touch screen + button;

(9) equipment size: 9800mm(L)×1500mm(W)×2100mm(H);

(10) equipment appearance color: large family white: hcv-n95-a;

(11) working power supply: single-phase 220V, 50HZ, rated power about 14KW;

(12) compressed air: 0.5 ~ 0.7mpa, using flow of about 300L/min;

(13) operating environment: temperature 10-35 ℃, humidity 5-35%HR, no flammable or corrosive gases, not lower than the level of 100,000 dust free workshop standards not lower than the level of 100,000 dust free workshop standards;
