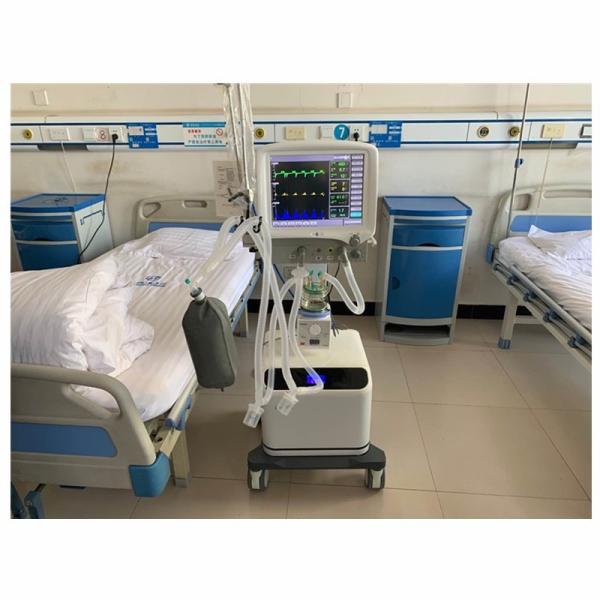

Anti Pollution Portable Medical Ventilator Compact Interface Stable Operation
Anti Pollution Portable Medical Ventilator Compact Interface Stable Operation
Specifications
Certification :
CE ,FDA
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000PCS/month
Delivery Time :
5-8Days
Packaging Details :
Wooden box
Name: :
Portable Medical Ventilator
Type: :
Breathing Apparatus
Applications: :
ICU
Respiratory rate: :
4bpm～80bpm
Oxygen concentration: :
15-100%
Display mode: :
LCD screen display
Description

Anti Pollution Medical Emergency Ventilator Portable Ventilator Machine

Application:

CL-1100 Multi-function Ventilator is widely

Product name · Hospital Ventilator Machine medical ventilator price
Application · The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Indra-operation, post-operation respiratory support, other respiratory treatment.
Trust Points

Si

· Simplicity: easy to use, easy to move with 4 wheels.

· Choice: adapt the equipment to your patients and procedures freely

· Patient Centered Ventilation: Precision in an anesthesia ventilator,fromconventional ventilation to advanced modes, including 8 modes: IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV

· Designed and manufactured by Superstar Medical with over 23 years experience in this area.

· International standard and advanced technology suitable for wide range use.

· Compact interface and big screen give you better operating experience.

· Over 2,000 units installed in the world.
Features

· 15” TFT LCD touch screen displays the ventilation parameters, alarm information and waveforms.

· Air compressor runs stably with low noise, creates quietenvironment for doctors and patients.

· Multiple working modes such as volume control and pressure limit.

· Multiple parameters monitoring interface to show clear parameter to the operator, allow operator know the patient conditions in all aspects.

· Electrical PEEP control.

· Breathing valve isdisassemblyand can be disinfected.

· Real time pressure-time, flow-time loop graphics, pressure volume loop graphics and high precision ETCO2,O2 concentration detection function included.
Safety

· Three level alarming system, visual and sound alarm information.

· With multiple type of alarms, reminding and protection functions.

· Self-check before running, eliminate system mulfuction.

· Advanced power management control technology.

· With built-in backup power supply, when normal power supplyshut down, back-up power supplywill start work automatically.

· Separate design of electric and gas, keep safety running of ventilator.

Specifications

Ventilation modes: IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV

Ventilator parameter ranges
Tidal volume(Vt) 0 mL ~ 2000 mL
Frequence(Freq) 1bpm ~ 100 bpm
I/E 4:1~1:8
PEEP 0cmH2O ~ 40 cmH2O
Pressure Limit 20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq) 0 /min ~ 100 /min

Tidal volume(Vt)

MV

Airway pressure

Dynamic lung compliance testing

ETCO2 Concentration

0 mL ~ 2500 mL

0 L/min ~ 99 L/min

0 cmH2O ~ 100 cmH2O

1mL/cmH2O ~ 1000mL/cmH2O

0mmHg ~ 152mmHg (0%-20%)
Oxygen concentration 15 % ~ 100 %

Graphical display:

Oxygen concentration

Size:Wooden
