Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
Specifications
Brand Name :
OEM
Model Number :
OEM
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
4 Set Per Month
Delivery Time :
in - stock
Packaging Details :
Wooden Case
Name :
Fully Automatic Face Mask Making Machine
Feature :
High Production Efficiency
Mask Material :
Non-Woven Material
Dimension(L*W*H) :
6000*5000*1900mm
Automatic Grade :
Automatic
Production Capacity :
100 pcs/min
Power(W) :
10kw
Voltage :
220V/50HZ 110V60HZ
Weight :
3000kg
Color :
Grey
Description

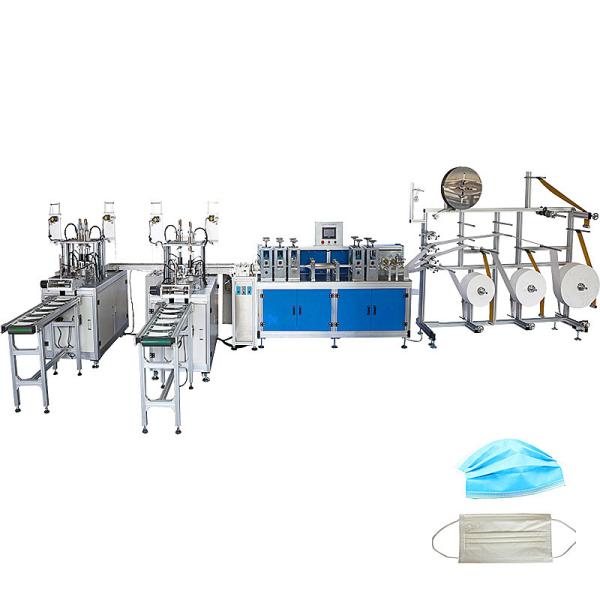

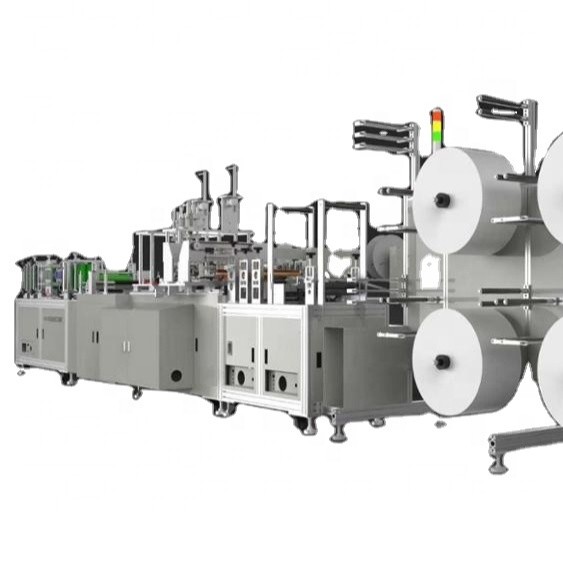

Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask

Technical Feature:

1, Three rolls of fabric enter the equipment at the same time

2, Using ultrasonic technology, the surface layer, filter layer, and bottom material are automatically bonded. Then the creases, trimming, shaping and cutting of the outlet cover body are automatically pressed.

3, Through the conveying system, it is automatically distributed to the left and right sides.

4, At the same time through the photoelectric detection, the ear hook, the ultrasonic cut of the nose line, and spot welding are made to be permanently attached or buried inside the mask body.

5, With automatic output, it realizes a line of automatic operations from feeding to finished products, with an efficiency of up to 100 pieces per minute, helping the transformation and upgrade of intelligent production of face masks.

Technical Parameters

Model RH-800
Product name Full-automatic disposable three-layer mask machine (outer ear type)
Finished products specifications 175mm*95mm
The finished product process Three - layer adhesive tape nose line with hanging ear optional with printed LOGO
Production capacity 100 pieces/min

Material used

 20-30 Gram weight PP Non-woven composite fibre
Suitable for layer 3-4 Layers

control mode

 PLC Display and touch Screen
Air pressure 7kg/cm2
Power 10kw
Ultrasonic wave 20KHZ
Power supply 220V/50HZ
Floor Space 6000*5000*1900mm

Automatic Ultrasonic 3 Ply 4 Ply Disposable Non Woven Face Mask
