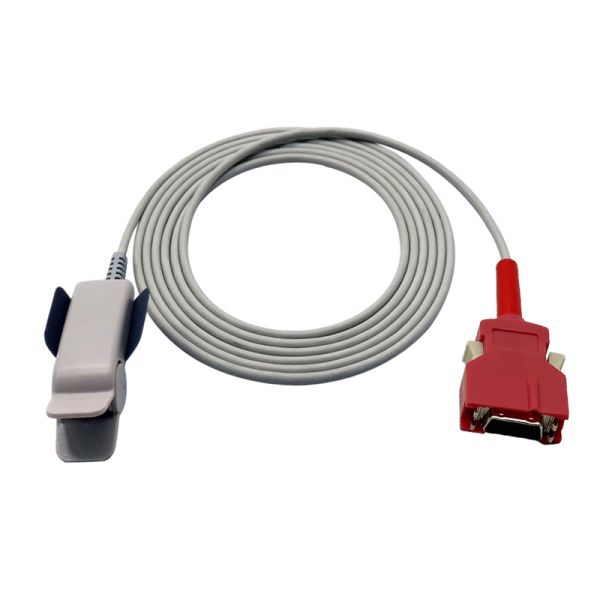

20pin adult SpO2 Sensor suit for radical 7/8 and rainbow machine for Red 2053 (DCI-DC3), 2054 (DCI-DC12)

This original 20-pin Red sensor is for use with monitors that require the Red sensors, such as Rad-57 and Radical-7. This sensor measures pulsoximetry, pulse rate, and perfusion index.

• 2053 DCI-DC3 (Adult Clip, 3 feet)
• 2054 DCI-DC12 (Adult Clip, 12 feet)
• 2256 DCIP-DC3 (Pediatric Clip, 3 feet)
• 2257 DCIP-DC12 (Pediatric Clip, 12 feet)
• 2643 DBI-DC3 (Adult Soft, 3 feet)
• 2644 DBI-DC12 (Adult Soft, 12 feet)

Main Technical Parameters : 1) Emitted light wavelength: 660±5nm, Absorbed light wavelength: 905±5nm

2) SpO2 test range: 70%-100%;

SpO2 measurement accuracy:

±1% in 90%~100%, ±2% in 80%~89%, ±3% in 70%~79%.

3) Range of pulse rate : 30bpm~245bpm

Measurement accuracy of pulse rate:

±1bpm for 30bpm~59bpm, ±2bpm for 60 bpm~149bpm, ±3bpm for 150bpm~245bpm

Working Environment Requirements: Temperature:5℃~40℃; Relative humidity:≤80%; Air pressure:700hPa~1060hPa

Intended Use: TJ SpO2 sensor is suitable for adult patient (weight >40kg), pediatric patient (weight:10-40kg) to conduct a spot check or continuous noninvasive measurement of arterial oxygen saturation and pulse rate.

Other SPO2 Sensors:

1. Adult finger clip Spo2 sensor. Application:Adult>40KG. Application site:Index or other finger

2. Pediatric finger clip Spo2 sensor. Application:Pediatric>10-40KG. Application site:Index or other finger

3. Adult silicone Spo2 sensor. Application:Adult>40KG. Application site:Index or other finger

4. Pediatric silicone Spo2 sensor. Application:Pediatric>10-40KG. Application site:Index or other finger

5. Infant silicone wrap Spo2 sensor. Application:Neonate 1-4KG;Infant 3-15KG;Pediatric>10-40KG. Application site:Pediatric-Index or other finger;Neonate-foot;Infant-great toe

6. Adult Ear clip Spo2 sensor.Application:Adult>40KG. Application site:Ear

Warning:Only use for pulse oximeter which has autoconditioning power function.

7. Animal Spo2 sensor.Application:Dog,Cat. Application site:ear,tongue.

Warning:Only use for animal pulse oximeter or pulse oximeter which has autoconditioning power function.

8. Disposable Spo2 Senser:Adult and infant disposable Spo2 sensor.

FAQ:

Q:How long you can ship out the goods

A:The normal products we have stock,for OEM produts about 5-7 work days, all the orders will be finished ASAP

Q:what is your products warranty

A:1 year warranty After receiving the goods
