Features

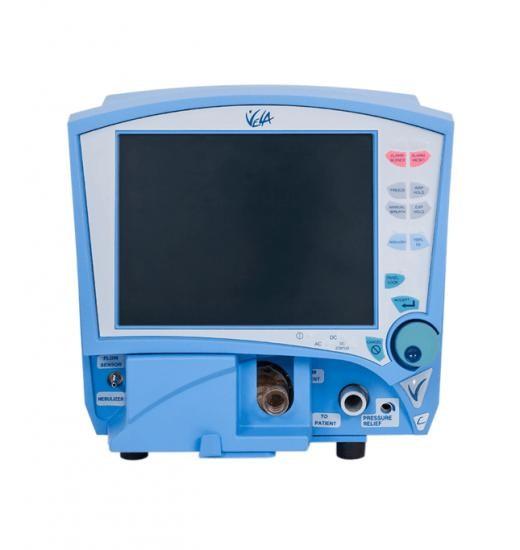

• The VELA enables clinicians to customise a patient’s ventilation treatment strategy by monitoring their specific pulmonary function and structure parameters.
• Operating modes standard model include: Assist/Control, SIMV, CPAP and PSV
• Operating modes comprehensive model include: Assist/Control, SIMV, CPAP/PSV, NPPV (AC, SIMV, CPAP/PSV), PRVC
• Includes: Synchronised Nebuliser, 100% oxygen for 3 minutes (suctioning), Built-in turbine provides air source and very high flow rates (up to 180 lpm), Flow trigger to reduce work-of-breathing, Inspiratory/Expiratory Hold, Incorporated Fi02 Monitoring, Sigh & Manual breath and PEEP.
• The VELA offers a range of safe ventilator weaning tools.
• The internal turbine removes the requirement for a compressed air source allowing reliable intra-hospital transport of the VELA without the need for bulky air cylinders.
• With its ergonomic design the VELA is intuitive, easy to use, maintain and clean.

Benefits

• Intuitive user interface facilitates ease of use.
• Operates independent of air sources for greater flexibility.
• No scheduled maintenance of the turbine maintains a low cost of ownership.

Details

Manual Controls

• Manual Breath: One Breath
• Expiratory Hold: Maximum 6 sec
• Inspiratory Hold: Maximum 6 sec
• Increase O2: 100% O2 for 3 minutes
• MIP/NIF: Maximum 30 sec*
• Nebulizer: OFF, 1 to 60 minutes, synchronized

Advanced Settings

• Bias Flow: 10 to 20 L/min
• Volume Limit (Available in PRVC/Vsync only): 5 to 2.5 L
• Assured Volume: 50 ml to 2.0 L*
• PC Flow Cycle: OFF to 30%
• PSV Cycle: 5 to 30%
• PSV Tmax: 0.3 to 3.0 sec
• Waveform: Decelerating, Square*
• T High Sync: 0 - 50%*
• T High: ON/OFF*
• T Low Sync: 0 - 50%*
• Sigh: ON, OFF
• Vsync: ON, OFF*

Alarms

• High Pressure: 5 to 120 cmH2O
• Low Pressure: OFF, 2 to 60 cmH2O
• Low Minute Volume: OFF, 0.1 to 99.9 L
• High Breath Rate: OFF, 3 to 150 bpm
• Apnea Interval: 10 to 60 sec

Advanced Features

• FiO2 Monitoring, Graphic Trends, MIP/NIF, Leak Compensation

Battery Power

• 6 hours of ventilator operation from the Standard Internal Battery
• Electrical / Pneumatic
• Electrical A/C: 100, 120, 230, 240 VAC, 47 to 65 Hz
• O2: 40 to 85 psig (2.8 to 5.9 bar)
