Electric Vehicle Micro Blade Fuses , Bolt Type Automotive Fuses
Electric Vehicle Micro Blade Fuses , Bolt Type Automotive Fuses
Electric Vehicle Micro Blade Fuses , Bolt Type Automotive Fuses
Electric Vehicle Micro Blade Fuses , Bolt Type Automotive Fuses
Specifications
Brand Name :
Dissmann
Model Number :
DNQ-A/X/H
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C/TT
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Color :
White
Rated Current :
5A-200A
Rated Voltage :
32VDC/58VDC/80VDC
Breaking Capacity :
DC1500A
Category :
aR
Keyword :
Electric Vehicle fuse
Application :
short-circuit protection fuses of pure electric vehicles and hybrid electric vehicles
Description

Micro blade fuses DNQ series supplier bolt type

Product details of the DNQ series fuses

This DNQ series fuses are flat type Bolt install connection fuse, with small size, low I²t, high breaking ability characteristics and other characteristics.They are suitable line in circuit of DC32V/58V/80VDC,rated current range of 5A-800A,breaking capacity up to DC1500A.Applicable to frequency converter, rectifier, inverter, various types of power supply and other semiconductor equipment, and power battery, electric motor, capacitor, cable and equipment or component’s short-circuit and back-up protection. This product has good vibration resistance and flame retardant performance. Suitable for vibration environment applications such as rail transit and motor vehicles.

Product type of the DNQ series fuses

Model

Rated current

Rated voltage

Breaking Capacity
DNQ-A 5A～200A 32Vdc 1.5KA
DNQ-X 5A～200A 58Vdc 1.5KA
DNQ-H 5A～200A 80Vdc 1.5KA
DNM-A 5A～200A 32Vdc 1.5KA
DNM-X 5A～200A 58Vdc 1.5KA
DNM-H 5A～200A 80Vdc 1.5KA

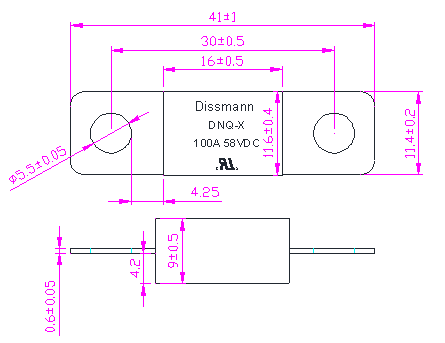

Dimension of the DNQ series fuse

Electric Vehicle Micro Blade Fuses , Bolt Type Automotive Fuses

Performance test requirements of the DNQ series fuse

Current testing

(A)

minimum time

(s)

Max time

(s)
75% 360000 -
200% 0 300
600% 0 1

Material of the DNQ series fuse

Component name

Material

Contact the foot

Kirsite

Copper alloy

Noumenon

Ceramics
Product tags

automotive blade fuses

,

auto blade fuses

,

fuse automotive
