Bolt Down Ceramic Two Wheeler Battery Fuses , 58VDC Electric Motor Fuses
Bolt Down Ceramic Two Wheeler Battery Fuses , 58VDC Electric Motor Fuses
Bolt Down Ceramic Two Wheeler Battery Fuses , 58VDC Electric Motor Fuses
Bolt Down Ceramic Two Wheeler Battery Fuses , 58VDC Electric Motor Fuses
Specifications
Brand Name :
Dissmann
Model Number :
DNN-C
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
TT/LC
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Color :
White
Rated Current :
10A-500A
Rated Voltage :
32VDC/58VDC/80VDC
Breaking Capacity :
DC2700A
Meet the requirement :
UL248-13、ISO8820、JASO-D622、RoHS compliant
Application :
battery,EV charger
Type protection :
aR
Description

Two wheeler battery fuse 32VDC/58VDC/80VDC

Product basic information

Medium Plate Type Automobile fuses (Bolt Type Installation), The Dimension and Performance conform to UL248.

Rate Voltage: 58VDC, Rate Current: 40A - 500A, Breaking Capacity: DC 2700A

Compliance with EU and China RoHS Directives.

Executive Standard: UL248, UL Certification: E496054.

This series of products are Medium Plate Type Automobile Fuse with small size, low power consumption, high breaking capacity.

Product characteristic of the two wheeler battery fuse

Model Code Rate Current (A) Rate Voltage (V) Installation
DNN-D DNN-D-40 40 58VDC Install Bolt M8, Recommend Torque: 11Nm
DNN-D-50 50
DNN-D-60 60
DNN-D-70 70
DNN-D-80 80
DNN-D-100 100
DNN-D-125 125
DNN-D-130 130
DNN-D-150 150
DNN-D-175 175
DNN-D-200 200
DNN-D-225 225
DNN-D-250 250
DNN-D-275 275
DNN-D-300 300
DNN-D-350 350
DNN-D-400 400
DNN-D-450 450
DNN-D-500 500

Note:

If you need other rate of current, please do contact us.

The Fuse Base: ANM-B

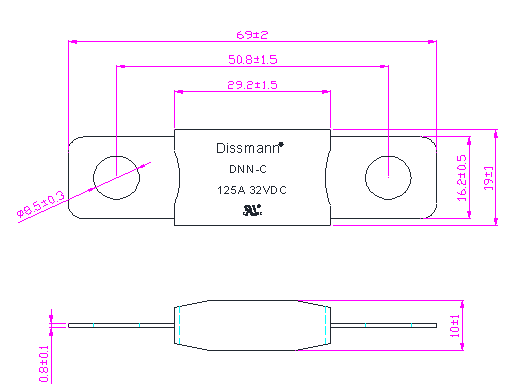

Dimension of the two wheeler fuse(mm)

Bolt Down Ceramic Two Wheeler Battery Fuses , 58VDC Electric Motor Fuses

Fuse Base Appearance and Dimension (mm)

Bolt Down Ceramic Two Wheeler Battery Fuses , 58VDC Electric Motor Fuses

Manufacturing material

Part Material
Insulating Body Copper Alloy
Main Body Ceramic
Terminal Copper Alloy
