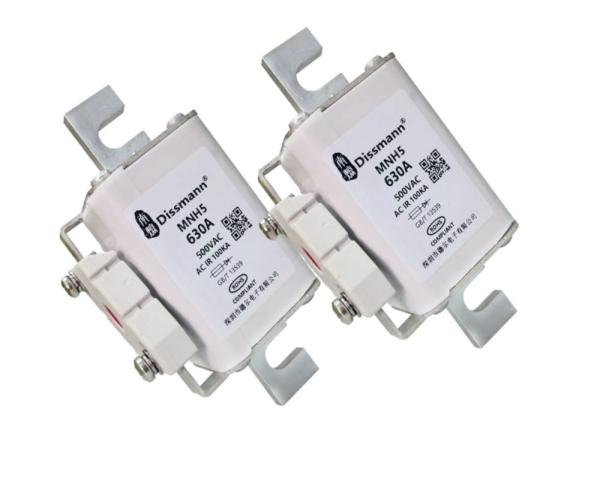

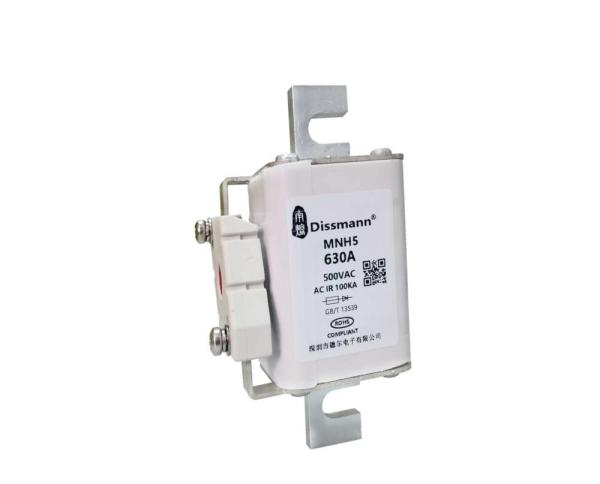

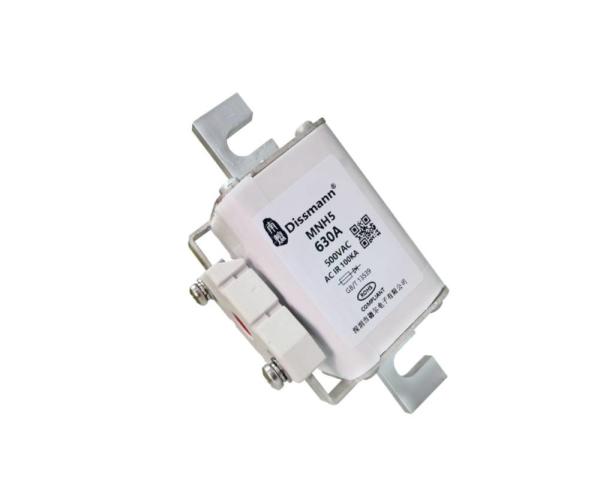

UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
Specifications
Brand Name :
Dissmann
Model Number :
MNH5
Certification :
CCC
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material: :
Ceramic
Colour: :
White
Rated Voltage: :
500VAC
Rated Current: :
630A
Breaking Capacity: :
AC100KA
Standard: :
UL248-13、 IEC60269.4、ROHs
Usage: :
industrial power supply cabinet,semiconductor protection
Keyword： :
industrial power fuse
Description

NH Type Fuse High Breaking Capacity Fuse Cartridge Fuse 500volt AC Fuse

Material:
Noumenon: fiber pipe
Pins: Alloy

Product Presentation:

Rated Voltage

额定电压

AC690V/DC440V

或低于

Type Protection

保护类别

 aR
Rated Current 额定电流 500A-1250A

Breaking Capacity

分断能力

AC690V/100kA DC440V/50kA

(时间常数15-20ms)

Meet the Requirement

符合要求

UL248-13,IEC60269.4

欧盟和RoHS 指令

Remarks

备注

产品外形尺寸(mm)/Overall dimensions of the product(mm)

UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply CabinetUL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet

尺码 A(Max) B±2.5 C±1.5 D±1.5 E(Max) F(Max) K H±0.2 G±0.5
4 90 150 100 100 120 25 62±2.5 8 16
4a(500-1250A) 90 - 100 100 120 30 84±3 6 -

产品型号/Product type

Model

型号

Rated Current

额定电流A

 I2t(A2s)

Power dissipation

功耗W

Size code

尺寸代码
弧前 总
MNH5-G500A 500 975 2250 60

4
MNH5-G630A 630 1732 4520 70
MNH5-G800A 800 3150 8725 90
MNH5-G1000A 1000 5665 15700 100
MNH5-G1250A 1250 12100 28300 110
MNH5-AG500A 500 975 2250 60

4a
MNH5-AG630A 630 1732 4520 70
MNH5-AG800A 800 3150 8725 90
MNH5-AG1000A 1000 5665 15700 100
MNH5-AG1250A 1250 12100 28300 110

UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet

Test equipment
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
Production equipment
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
UL248-13 NH Type HRC Fuse 630A Rated Current For Power Supply Cabinet
