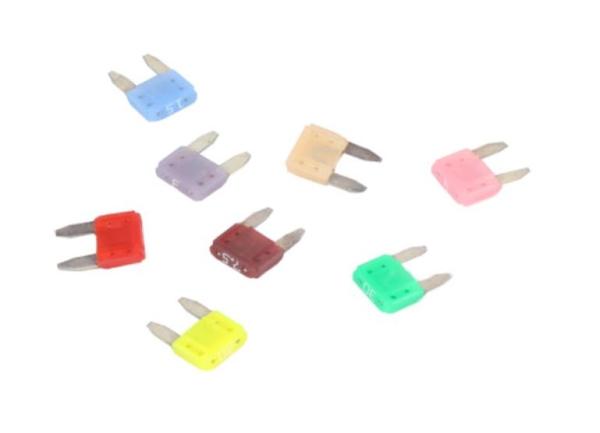

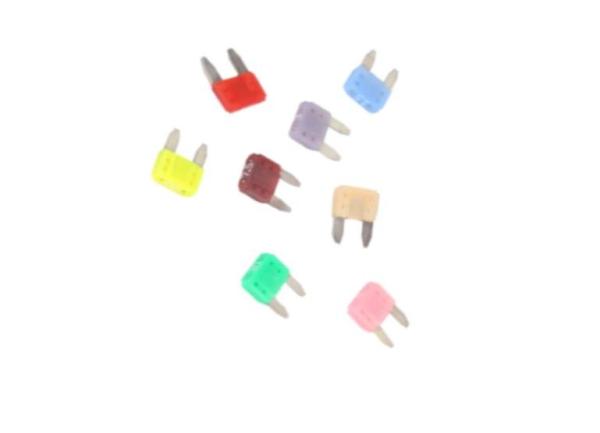

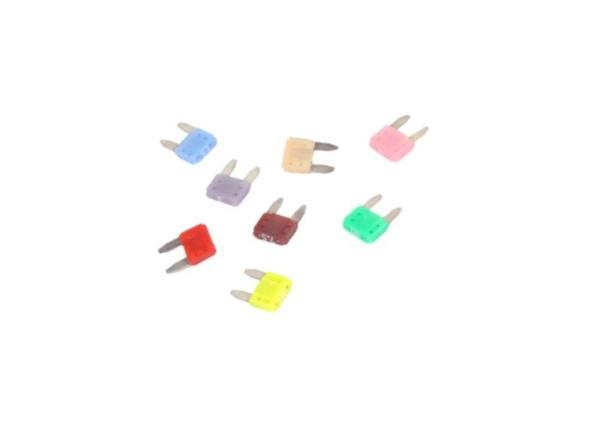

Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Specifications
Brand Name :
Dissmann
Model Number :
DKN-A
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material: :
zinc alloy , plastic
Usage: :
Automotive
Breaking Capacity: :
DC1000A
Rated Voltage: :
32VDC
Current: :
3A ~ 40A
Keyword: :
fast acting fuse
Description

Mini auto fuse blade fuse fast acting fuse low voltage fuse DC fuse

Material:
Base / Cap: PC
Pins: Zinc Alloy
Operating Temperature: -55 º C to +125 º C


Features:
Automotive Fuse
Many kinds of automotive fuse.
Current rating: 3A ~ 40A.
Voltage rating: 32Vdc
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock

Product presentation:

Rated Voltage

额定电压

 32VDC

Characteristic

特性

 F快断

Rated Current

额定电流

 2A-30A

Breaking Capacity

分断能力

 DC1000A

Meet the Requirement

符合要求

UL248,ISO8820,

欧盟和RoHS 指令

Remarks

备注

 UL

产品外形尺寸(mm)/Overall dimensions of the product(mm)

Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating

电流特性曲线图/Current characteristic curve

Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating

产品型号/Product type

Model

型号

Product code

产品代码

Rated current

额定电流 A

I²t

(A²Sec)

Voltage drop

电压降 mV

Pigment

颜色
DKN-A DKN-A-2 2 2.8 170 灰色(Gray)
DKN-A-3 3 9.3 152 浅紫色(Violet)
DKN-A-4 4 17 120 粉红色(Pink)
DKN-A-5 5 24 128 浅棕色(Tan)
DKN-A-7.5 7.5 66 135 棕色(Brown)
DKN-A-10 10 92 108 红色(Red)
DKN-A-15 15 270 98 蓝色(Blue)
DKN-A-20 20 380 96 黄色(Yellow)
DKN-A-25 25 620 85 透明色(Clear)
DKN-A-30 30 1120 86 绿色(Green)

性能标准/Performance criteria

测试电流项目

Test current item(A)

电流

Current

最小时间

Minimum time(s)

最大时间

Maximum time(s)
110% 2A-30A 360000 ∞
135% 2A-30A 0.75 600
200% 2A-30A 0.15 5.0
350% 2A-30A 0.08 0.5
600% 2A-30A 0.03 0.1
